Description

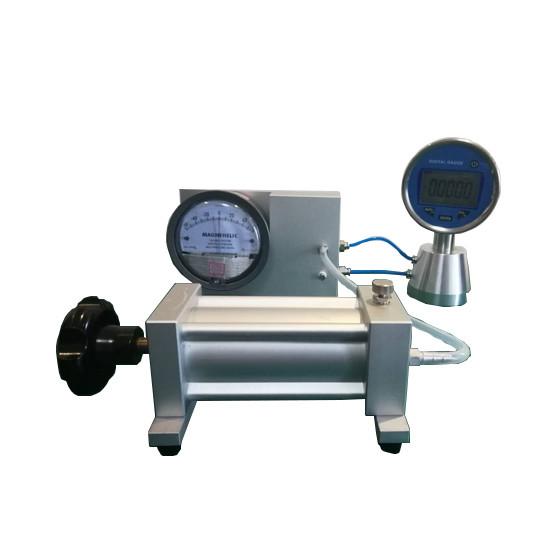

This Micro differential pressure gauge calibrator is composed of
the miro generation pump ,standard gauage and the differential
gauge bracket.It use high-quality stainless steel and aluminum
alloy materials and thge seals and connectors imported from
Germany. High-precision standard device to ensure accurate
calibration .
Easy to operate, stable lifting and lowering pressure, small
adjustment fineness, easy maintenance, not easy to leak, with the
highest safety performance in the industry, and widely used in
power, petrochemical, metallurgy, transportation, pharmaceutical,
metrology, education, scientific research and other fields
Detailed Images
Specification
| Micro Differential Calibration and Calibrator Equipment Machine |
| Model | LF-805 |
| Pressure range | 40~40kPa |
| Accuracy | 0.05 level |
| Medium | clean and free of air or nitrogen |
| Connection | Hose plug |
| Components | pressure pump + digital standard gauge + differential pressure
gauge mounting bracket |
| Weights | Around 4.5kg |
| Adjusting sensitivity | min 1pa |
Features
1. Full range pressure calibration, equipped with high-precision
digital standard gauge.
2. Small dimension,convient to check various pressure instruments
on site or in the measuring room.
3. Portable metal shell, strong anti-interference, strong impact
resistance.
4.Open structure, all parts and pipelines are combined on the front
for easy maintenance.
5.Large capacity chamber, wide-stroke screw-type pressure generate
pump, easy to make pressure, and high pressure speed.
Selection Guide
| LF-805 | Code | Accuracy | | |
| A | 0.05 |
| B | 0.1 |
| C | 0.2 |
| D | Flange |
| E | Special Accuracy |
| Code | Connection mode |
| 1 | M20*1.5 |
| 2 | 1/2NPT |
| 3 | M14*1.5 |
| 4 | G1/2 |
| 5 | Special connector |
| Code | Pressure type |
| G | Gage pressure |
| D | Differential pressure |
| A | Absolute pressure |
| YK-100 | A | 1 | G |
FAQ
Q: How long will you reply me?
A: We will contact you as soon as possible but within 12 hours.
Q: Can I get some samples?
A: Yes, Sample order is available for quality check and market
test. But you have to pay the express cost.
Q: How soon can you arrange your production?
A: Once getting your product confirmation and receiving the
prepayment, the production will be started immediately.
Q: What's delivery time?
A: It usually takes about 3-5 working days for small order and
10-15 days for big order.
Q: How do you control your quality ?
A: Three inspection steps(of original, production, and finished
goods) + good warranty service(1 year free to change a new one
without any human damage factors).
Q: What certificates do you have ?
A: ISO9000, CE, Explosion-proof certification, RoHs ready. And
before the delievry of goods, quality and safety inspection
certification issued by third parts also can be offered.
Q: Could I visit your factory?
A: Very welcome! Fly to Xian Yang air port. It was a big pleasure
for us.
Q: What's your warranty terms?
A: We offer 12 months warranty time.
Q: Can you provide OEM & Customized service?
A: Yes, OEM and ODM are both available, we have the professional
R&D dept which can provide professional solutions for you.
