Name: Direct Acting Steam Solenoid Valve Stainless Steel High Temperature Solenoid Valve
Brand: Yunyi
Price: 121 USD

Add to Cart

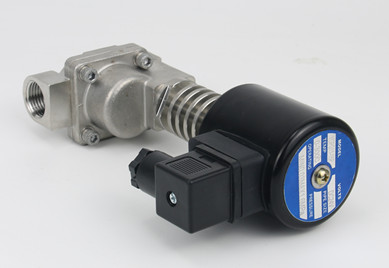

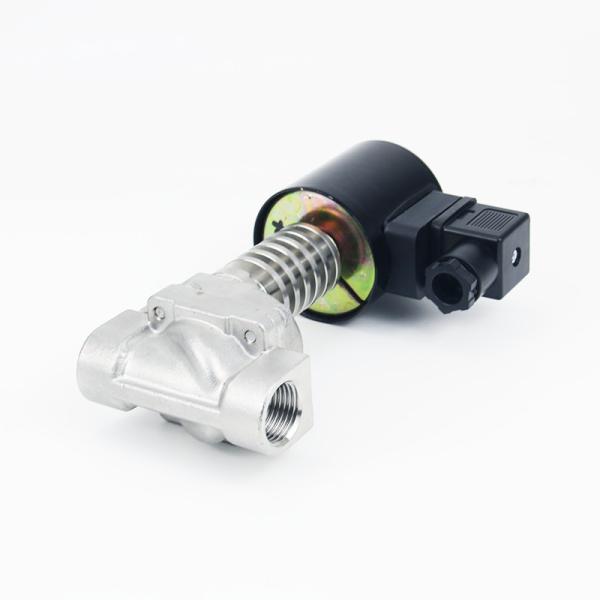

Detail Images Direct Acting Steam Solenoid Valve Stainless Steel High Temperature Solenoid Valve

Specification Direct Acting Steam Solenoid Valve Stainless Steel High Temperature Solenoid Valve

Direct-acting structure	low power
In steam environment	Long life of seals
Suitable for	long-term working piping system
Medium	steam, hot water, oil, etc.
Fluid temperature	PEEK:-60°℃~300°
Pressure	PG11: 0.0MPa~4.0MPa Normally closed
Connection size	1/8", 1/4", 3/8"
Thread	G thread, NPT thread
Diameter(mm)	1.0, 1.5,2.0,2.5,3.0,4.0,5.0
Voltage	DC- 12V, 24V
	AC - 24V, 120V, 240V/60Hz; 110V, 220V/50Hz
Range	± 10%
Coil	YA2H, 15VA(AC), 12W(DC), IP65, 100%ED
Material	Body - Brass, Stainless Steel
	Seals - PTFE
	Magnetic isolation tube - stainless steel 304
	Moving iron core - stainless steel 430F
	Static iron core - stainless steel 430F
	Spring - Stainless Steel 304
	Magnetic ring-copper

Dimension Direct Acting Steam Solenoid Valve Stainless Steel High Temperature Solenoid Valve
