MF5700 Series Gas Flow Meters
The MF5700 mass flow meter is one of the best‐selling mass flow
meter products on market, due to
its performance and cost‐effective design enabled with the
company’s proprietary MEMS (micro‐
electro‐mechanical systems) thermal sensing technology. The current
model is the 3rd generation of
the products having significantly upgraded features since its first
release in 2010. The upgrade
includes much‐improved accuracy, an additional model to cover flow
range and channel size
compatibility; significantly extended measurement dynamic range,

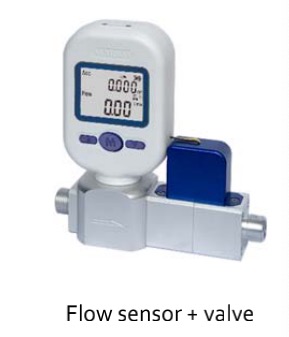

wireless data options, and valve
options. The upgrade also ensures back‐compatibility for our
existing customers. Siargo is
committed to continuing product innovation while offering the best
value to our customers.
This serial of products is designed for general purpose mass flow
sensing and control purposes. The
wetted materials of the products are compatible with most of the
common gases such as oxygen,
nitrogen, air, argon, carbon dioxide, etc. Siargo also offers a
wide spectrum of off‐the‐shelf and
customized flow, pressure, temperature/humidity, and gas
concentration sensing products and
provides integration and turn‐key solutions to our customers.
Please contact the manufacturer for
additional information.
MF5706 MF5708 MF5712
units range 0 ~ 20, 0 ~ 100 , 0~ 200 L/Min
Accuracy: (2.5+0.5FS)%
repeatability 1%
response time 2S
Power supply mode 4 AA batteries or external adapter power
consumption 10mW
output mode RS485(optional)
display mode LCD display unit
instantaneous flow :L/Min;M3
display resolution 0.0111L/Min keyboard three-key keyboard function
description password setting;
Total amount setting and zeroing;
Alarm function work pressure 0.8 MPa
working temperature - 10 ~ 55 oc
pressure loss 600 | 2000 pa
work time period (battery) & gt;60 days
standard calibration gas nitrogen, 20 oc, 101.325 kPa
lead special miniUSB mechanical interface (optional) pipe diameter
612 mm * NPT1/4, 4 NPT1 BSPT1 / / 2, BSPT1/2
weight about 350 g
The equipment is suitable for hospital clinical oxygen monitoring
and measurement (namely medical oxygen meter), food industry
nitrogen flouting
MF5700 series gas mass flowmeter product features:
-MEMS technology application, small flow test, high precision
- low power consumption portable design
-RS485 communication mode can realize network centralized
management
- real-time monitoring of instantaneous flow and cumulative flow
calculation
- password management, over limit alarm - friendly interface mode,
practical in a variety of gas monitoring applications
- Copper tubes can be used for measuring all kinds of gas media
- small size, easy to install MF5700 series gas mass flowmeter L
(mm) (mm) W DMF57066740NPT1 / hcmf57129850npt1/2 or 4 BSPT1/2 model
