Factory Intelligent Pressure Gauge Calibrator Pressure Transmitter
Calibrator
Description Factory Intelligent Pressure Gauge Calibrator Pressure Transmitter
Calibrator
The advent of the intelligent pressure calibrator represents a
significant leap forward in pressure measurement technology,
offering unparalleled performance and affordability when compared
to similar products from the British Druck Company. This innovative
device not only efficiently addresses standard pressure calibration
but also comprehensively meets the complex demands of on-site
testing. With its basic accuracy rates of either 0.1% or an
enhanced 0.05%, the intelligent pressure calibrator is meticulously
designed to cater to a broad spectrum of precision needs across
various applications.
Ideal for use in high-end environments such as laboratories,
manufacturing facilities, and academic institutions like colleges
and universities, this tool promises reliable and accurate pressure
measurements. It serves as an indispensable medium to
high-precision pressure standard instrument, adept at calibrating
and verifying critical devices including pressure/differential
pressure transmitters, general and precision pressure gauges,
pressure sensors, and pressure switches.
The intelligent pressure calibrator's advanced features likely
include automated error detection and correction, user-friendly
interfaces, and data logging capabilities, streamlining calibration
processes while ensuring compliance with stringent quality
assurance standards. Its sophistication and ease of use make it an
invaluable asset where precise pressure readings are imperative,
contributing to operational efficiency, safety, and overall system
reliability.
Detail Images Factory Intelligent Pressure Gauge Calibrator Pressure Transmitter
Calibrator
Specification Factory Intelligent Pressure Gauge Calibrator Pressure Transmitter
Calibrator
| Pressure Range | -90Kpa-2.5Mpa (stall) |
| Resolution: Pressure | Min1Pa current Min1µA |
| Current measurement range | 0-22mA |
| DC Output | 24V DCD |
| Accuracy: Pressure | 0.1% F • S 0.05% F • S current: 0.05% ± 1d |
| Temperature | 5-50 ° C |
| DC Working hours | ≥16h |
| Display | 4 1/2LCD 5 1/2 LCD dual display current pressure |
| Relative Humidity | ≤80% RH |
| Overload | on-line for the range of 1.2-1.5 times |
| Dimensions | 240 * 80 * 40mm |
| Weight | 2.5Kg |
| Power and Power | 220VAC 50Hz 3VA |
| range(kPa) | accuracy |
| -4-4 | 0.1% | / |
| -6-6 | 0.1% | / |
| -10-10 | 0.1% | / |
| -16-16 | 0.1% | / |
| -25-25 | 0.1% | 0.05% |
| -60-60 | 0.1% | 0.05% |
| -90-100 | 0.1% | 0.05% |
| 0-160 | 0.1% | 0.05% |
| 0-250 | 0.1% | 0.05% |
| 0-400 | 0.1% | 0.05% |
| 0-600 | 0.1% | 0.05% |
| 0-1000 | 0.1% | 0.05% |
| 0-1600 | 0.1% | 0.05% |
| 0-2000 | 0.1% | 0.05% |
| 0-2500 | 0.1% | 0.05% |
Product Features Factory Intelligent Pressure Gauge Calibrator Pressure Transmitter
Calibrator

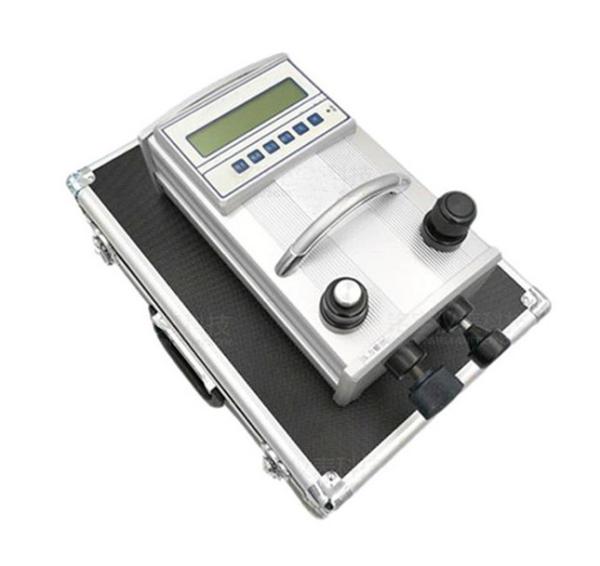

1. The intelligent pressure calibrator is a portable instrument for
both AC and DC. It can measure the current while measuring the
pressure, and display it on the LCD at the same time, and has a
24VDC output. A pressure hand pump is installed on the front panel,
making it an ideal field calibration instrument.
2. The high-performance microprocessor continuously corrects the
zero point and linearity of the instrument to ensure that the zero
point and accuracy of the instrument have good repeatability and
stability for a long time, and the measurement accuracy is high.
3. High-performance CPU and temperature sensor are used to
automatically compensate the temperature drift of the instrument to
ensure a wide temperature range under the accuracy.
4. Low power consumption. After the battery is fully charged, the
continuous working time under the guarantee of accuracy is long.
5. Constant current charging, with automatic shutdown and automatic
protection of battery voltage overcharge and undervoltage, to
ensure that the battery will not be damaged due to overcharge or
undervoltage, and the battery has a long service life.
6. The under-voltage automatic protection function of micro-power
consumption ensures that the meter will not damage the battery due
to under-voltage even if the operator continues to turn on the
meter for too long due to Huasheng metering production.
7. The instrument range is rich in functions, one meter is
multi-purpose, and has a variety of display styles, which can
simultaneously display pressure current, pressure water column or
pressure kgf/cm2 current percentage.
8. The instrument has an over-range alarm function. When the
applied pressure exceeds the rated full scale + 2500 words, the
instrument will display OVER RANGE! P and the built-in buzzer will
sound intermittently to indicate that the pressure (current)
exceeds the full scale and should be stopped Pressurize and release
part of the pressure to make it within the specified range to avoid
damage to the pressure sensor.
9. When the current measured by the meter exceeds 22mA, the meter
will display OVER RANGE!I and the built-in buzzer will sound
intermittently to indicate that the measured current is out of
range.
10. It can be operated directly on the panel to adjust the full
scale.
11. Metal shell, strong anti-interference, firm and
impact-resistant.
12 volume fine-tuning, it is easy to realize the verification point
pressure.
