60pa Aluminium Micro Differential Air Pressure Gauge

Ask Lasest Price
Brand Name :	Yunyi
Model Number :	YD-2000
Certification :	ISO CE
Price :	USD$17.5-USD$24.6/Unit
Payment Terms :	T/T, Western Union
Supply Ability :	1000 unit/month
Delivery Time :	10-15 working days

Add to Cart

Product Details
Company Profile

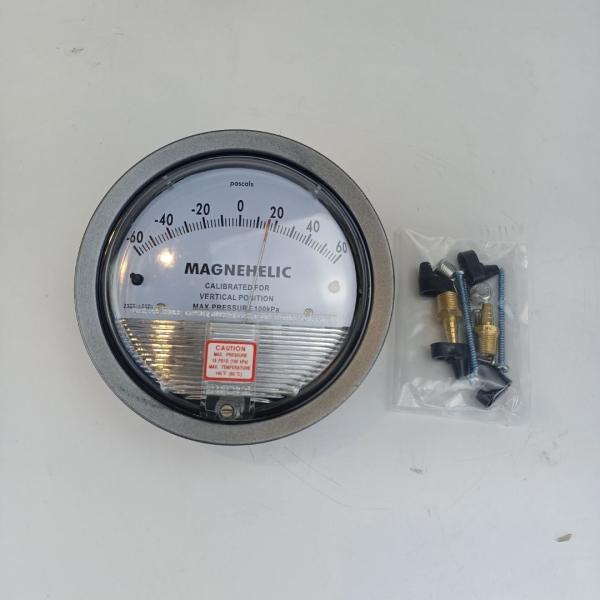

60pa Aluminium Micro Differential Air Pressure Gauge

Description Micro pressure manometer differential air pressure gauge

2000 series differential pressure gauge minimum range 0-30Pa, maximum range 0-30KPa. There are as many as 88 kinds of range and metric / imperial units to choose from. This differential pressure gauge using frictionless magnetic components, can rapidly measure the micro-pressure air or non-corrosive gases, including positive, negative (vacuum) or differential. No wear, hysteresis and clearance. Not filling, vaporization and freezing. This design has anti-vibration, anti-shake and high overpressure capability, you can guarantee access to high precision. The design impact, shock and overload protection.

Specification Micro pressure manometer differential air pressure gauge

Medium:	air and non-combustible, compatible gases (optional gas)
Housing:	cast aluminum housing or ABS shell, glass beveled panels. Dark gray coating, can withstand 168 hours salt spray test
Accuracy:	2% FS (mm units, and the range with the corresponding pa)
Pressure range:.	-20Hg To 15 psig (-0.677 bar to 1.034 bar)
Temperature range:	20 to 140 ° F (-6.67 to 60 ° C)
Hole size:	114mm
Mounting Orientation:	Diaphragm in vertical
Connections:	same 1/8 "NPT high and low pressure fittings, one pair on the side, one pair in the back
Weight:	500g / only
Standard accessories:	2pcs 1/8 "NPT threaded connectors for high and low pressure fittings can be connected with a rubber tube; two 1/8" NPT plug for blocking the remaining two high and low pressure ports; three a threaded countersunk mounting coupling (mounting ring, according to buckle holder for three interfaces to replace MP and count on attachments HP)

Detailed Images Micro pressure manometer differential air pressure gauge

Dimension and installation Micro pressure manometer differential pressure gauge

FAQ

Q: How long will you reply me?
A: We will contact you as soon as possible but within 12 hours.

Q: Can I get some samples?
A: Yes, Sample order is available for quality check and market test. But you have to pay the express cost.

Q: How soon can you arrange your production?
A: Once getting your product confirmation and receiving the prepayment, the production will be started immediately.

Q: What's delivery time?
A: It usually takes about 3-5 working days for small order and 10-15 days for big order.

Q: How do you control your quality ?
A: Three inspection steps(of original, production, and finished goods) + good warranty service(1 year free to change a new one without any human damage factors).

Q: What certificates do you have ?
A: ISO9000, CE, Explosion-proof certification, RoHs ready. And before the delievry of goods, quality and safety inspection certification issued by third parts also can be offered.

Q: Could I visit your factory?
A: Very welcome! Fly to Xian Yang air port. It was a big pleasure for us.

Q: What's your warranty terms?
A: We offer 12 months warranty time.

Q: Can you provide OEM & Customized service?
A: Yes, OEM and ODM are both available, we have the professional R&D dept which can provide professional solutions for you.
