Micro differential air pressure meter gauge manometer
Description micro differential air pressure meter gauge manometer:
2000 series differential pressure gauge minimum range 0-30Pa,
maximum range 0-30KPa. There are as many as 88 kinds of range and
metric / imperial units to choose from.
This differential pressure gauge using frictionless magnetic
components, can rapidly measure the micro-pressure air or
non-corrosive gases, including positive, negative (vacuum) or
differential. No wear, hysteresis and clearance. Not filling,
vaporization and freezing. This design has anti-vibration,
anti-shake and high overpressure capability, you can guarantee
access to high precision. The design impact, shock and overload
protection.
Technical indicators micro differential air pressure meter gauge
manometer :
1 Medium: air and non-combustible, compatible gases (optional gas)
2 Housing: cast aluminum housing or ABS shell, glass beveled
panels. Dark gray coating, can withstand 168 hours salt spray test
3 Accuracy: 2% FS (mm units, and the range with the corresponding
pa)
4 Pressure range:. -20Hg To 15 psig (-0.677 bar to 1.034 bar)
5 Temperature range: 20 to 140 ° F (-6.67 to 60 ° C)
6 Hole size: 114mm
7 Mounting Orientation: Diaphragm in vertical
8 Connections: same 1/8 "NPT high and low pressure fittings, one
pair on the side, one pair in the back
9 Weight: 500g / only

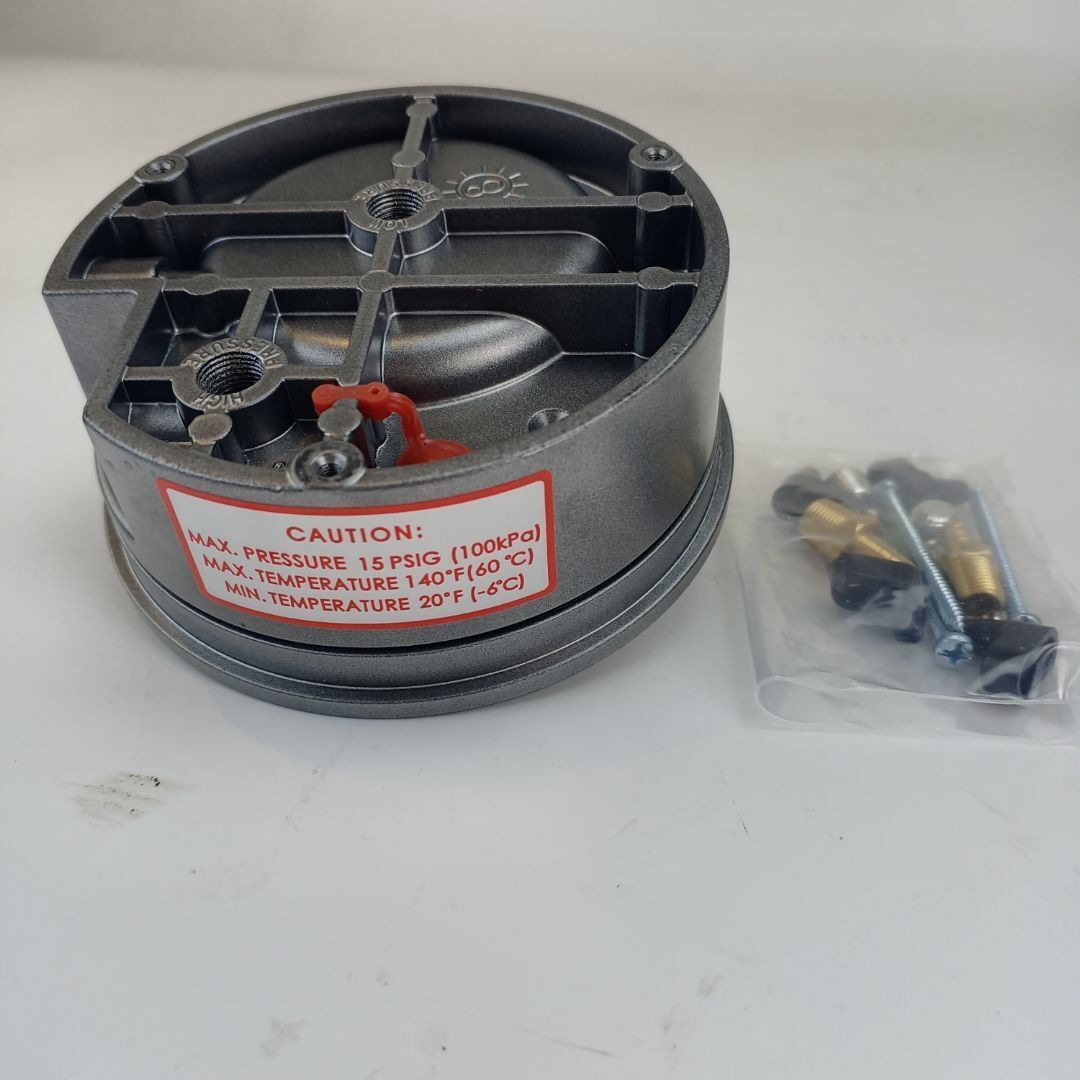

10 Standard accessories: two 1/8 "NPT threaded connectors for high
and low pressure fittings can be connected with a rubber tube; two
1/8" NPT plug for blocking the remaining two high and low pressure
ports; three a threaded countersunk mounting coupling (mounting
ring, according to buckle holder for three interfaces to replace MP
and count on attachments HP)
Dimension and Installation micro differential air pressure meter
gauge manometer:
