Air Pressure Manometer Mechanical Differential Pressure Gauge
Pressure Differential Meter
Description Air Pressure Manometer Mechanical Differential Pressure
Gauge Pressure Differential Meter

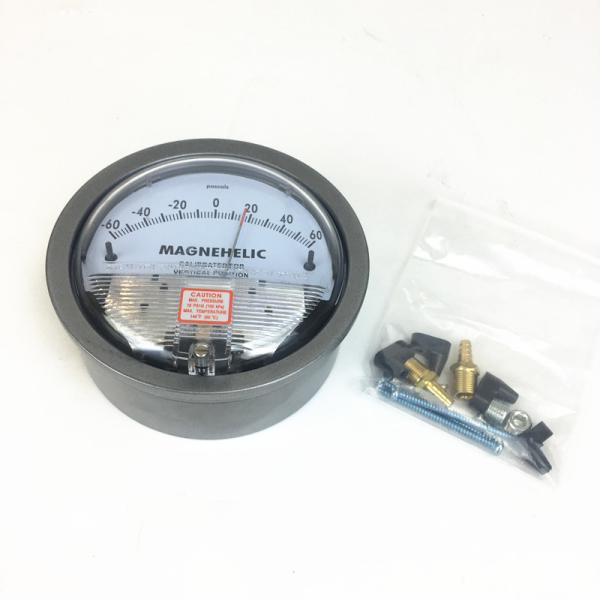

The mechanical differential pressure gauge is an elastic pressure
gauge that uses a simple and frictionless magnet spiral motion and
uses a rubber diaphragm as a sensitive element to measure. It can
use the pointer to quickly indicate the pressure of the measured
gas, whether it is positive pressure. , negative pressure or
differential pressure. This design is shock, shaking and
overpressure resistant. Moreover, there is no need to fill the
table with liquid, so there is no problem of vaporization, freezing
and odor. Specific application: wiA2 differential pressure gauge is
widely used to measure the pressure of fans and blowers, filter
resistance, wind speed, furnace pressure, orifice differential
pressure, bubble water level and liquid amplifier or hydraulic
system pressure, etc., and also used in the combustion process. air
to gas ratio control and automatic valve control, as well as blood
pressure and respiratory pressure monitoring in healthcare
equipment. Applicable industries: medical and health,
microelectronics, aerospace, environmental protection engineering,
bioengineering, pharmaceuticals, building intelligence, HVAC, food
and beverage, precision electronic processing, etc.
Specification Air Pressure Manometer Mechanical Differential Pressure Gauge
Pressure Differential Meter
| Medium | air and non-combustible, compatible gases (optional gas) |
| Housing | cast aluminum housing or ABS shell, glass beveled panels. Dark gray
coating, can withstand 168 hours salt spray test |
| Accuracy | 2% FS (mm units, and the range with the corresponding pa) |
| Pressure range | -20Hg To 15 psig (-0.677 bar to 1.034 bar) |
| Temperature range | 20 to 140 ° F (-6.67 to 60 ° C) |
| Hole size | 114mm |
| Mounting Orientation | Diaphragm in vertical |
| Connections | same 1/8 "NPT high and low pressure fittings, one pair on the side,
one pair in the back |
| Weight | 500g / only |
| Standard accessories | two 1/8 "NPT threaded connectors for high and low pressure fittings
can be connected with a rubber tube; two 1/8" NPT plug for blocking
the remaining two high and low pressure ports; three a threaded
countersunk mounting coupling (mounting ring, according to buckle
holder for three interfaces to replace MP and count on attachments
HP). |
Features Air Pressure Manometer Mechanical Differential Pressure Gauge
Pressure Differential Meter
·Magnetic link transmission mechanism fundamentally eliminates the
friction caused by gear transmission.
·The watch does not need to be filled with liquid.
·Inertia-free, drift-free pointer movement.
· Essentially no lag.
·Excellent anti-vibration and anti-shake performance.
·Can measure positive and negative differential pressure.
·Various ranges are available, minimum 0 ~ 60Pa, maximum 0 ~
210KPa.
·2 sets of pressure ports (side and back) + 3 installation methods
= free and flexible application.
·Good precision, reasonable price.
