Description of micro air differential pressure gauge manometer:
This differential pressure gauge using frictionless magnetic
components, can rapidly measure the micro-pressure air or
non-corrosive gases, including positive, negative (vacuum) or
differential. No wear, hysteresis and clearance. Not filling,
vaporization and freezing. This design has anti-vibration,
anti-shake and high overpressure capability, you can guarantee
access to high precision.
The design impact, shock and overload protection.
Specifications of micro air differential pressure gauge manometer:
| Name | Air conditioning mini air differential pressure gauge |
| Gauge Size | 4"dia. x 2-3/16"deep. |
| Accuracy | ±2% of Full scale ( ± 3% on 0,-100Pa,-125Pa,100mm and ± 4% on
-00,-60pa,-6mm ranges) |
| Range available | -20 inHg to 15 psig, (-0.677 bar to 1.034 bar) |
| Over pressure | Relief Plug opens at approximately 25psig(1.72bar) standard gauges
only |
| Temperature Limits | 20- 140 °F(-6.67 to 60°C) |
Detailed images of micro air differential pressure gauge manometer

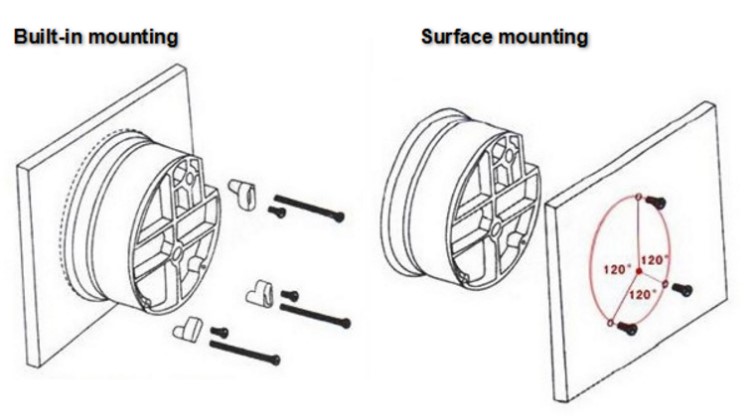

Dimension of micro air differential pressure gauge manometer:
FAQ
Q: How long will you reply me?
A: We will contact you as soon as possible but within 12 hours.
Q: Can I get some samples?
A: Yes, Sample order is available for quality check and market
test. But you have to pay the express cost.
Q: How soon can you arrange your production?
A: Once getting your product confirmation and receiving the
prepayment, the production will be started immediately.
Q: What's delivery time?
A: It usually takes about 3-5 working days for small order and
10-15 days for big order.
Q: How do you control your quality ?
A: Three inspection steps(of original, production, and finished
goods) + good warranty service(1 year free to change a new one
without any human damage factors).
Q: What certificates do you have ?
A: ISO9000, CE, Explosion-proof certification, RoHs ready. And
before the delievry of goods, quality and safety inspection
certification issued by third parts also can be offered.
Q: Could I visit your factory?
A: Very welcome! Fly to Xian Yang air port. It was a big pleasure
for us.
Q: What's your warranty terms?
A: We offer 12 months warranty time.
Q: Can you provide OEM & Customized service?
A: Yes, OEM and ODM are both available, we have the professional
R&D dept which can provide professional solutions for you.
