Factory High Generator Oil Liquid For Air Compressor Pressure
Sensor
Description Factory High Generator Oil Liquid For Air Compressor Pressure
Sensor
The P150 series pressure transmitters for industrial applications
are the ideal solution for users with high measurement
requirements. This model transmitter has very good accuracy, is not
only durable but also has a variety of sizes to meet various
application requirements.
The P150 series transmitters offer measurement ranges from
0...0.01MPa to 0...100MPa (0...1psi to 0...1500psi) and support all
common pressure units. These measuring ranges are combined with
standard industrial signal outputs, international process
connections and various electrical interfaces in the form of analog
or digital signals. In addition, this family of transmitters offers
different accuracy classes, extended temperature ranges, and
customer
Customized pin assignments.

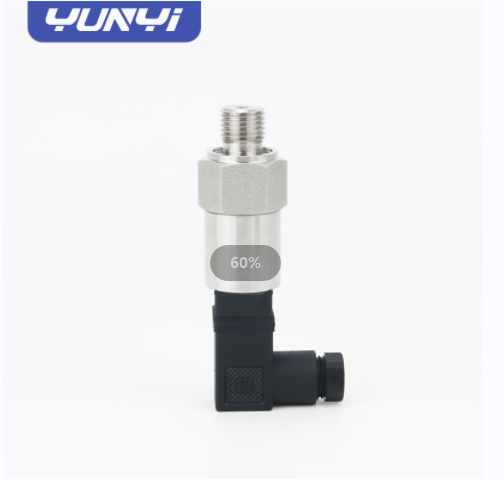

Detailed Images Factory High Generator Oil Liquid For Air Compressor Pressure
Sensor
Specification Factory High Generator Oil Liquid For Air Compressor Pressure
Sensor
| Power supply | 5V with signal output 0.5-4.5V / 1-5V / 0-5V, 12...32V with signal
output 0...10V, 9...32V with signal output 4...20mA |
| Response time (10 ... 90 %) | ≤2ms |
| Accuracy | 0.5% F.S , 0.25FS |
| Permissible temperature of |
| Compensated temperature range | -20...100℃ |
| Mean TC of zero | typical:0.03%F.S/℃； maximal:0.05%F.S/℃ |
| Mean TC of range | typical:0.03%F.S/℃； maximal:0.1%F.S/℃ |
| CE - conformity |
| Test Standard | EN 55022:2010/AC:2011 EN 61000-3-2:2014 EN 61000-3-3:2013 EN 55024:2010 |
| Shock resistance | 1000g according to IEC 60068-2-27 (mechanical shock) |
| Vibration resistance | 20g according to IEC 60068-2-6 (vibration under resonance) |
| Wiring protection | Protected against reverse polarity, overvoltage and short circuit |
| Weight | 38g |
| Connection | G1/4,NPT1/4 |
Features Factory High Generator Oil Liquid For Air Compressor Pressure
Sensor
1.Measuring range: 0...0.01MPa to 0...100MPa(0...1psi to
0...1500psi)
2.Accuracy: 0.5%FS or 0.25%FS
3.Output: 4...20mA, DC0...10V, DC0...5V or others
4.Electrical connection: Hessmann connector, M12*1 circular
aviation connector, 1 meter long cable straight out
5.Process connection: G1/4, NPT1/4 or other
Applications Factory High Generator Oil Liquid For Air Compressor Pressure
Sensor
1.Machine made
2.Shipbuilding
3.Measurement and Control Technology
4.Hydraulics and Pneumatics
5.Pumps and Compressors
6.Matching flow meter
