Differential smart pressure transmitter instrument with LCD display

Description Differential smart pressure transmitter instrument with LCD display

FM108/112 serial differential pressure transmitters are engineered for building automation in the HVAC/R industry , pressure and flow monitoring, and low differential pressure test in industry application.

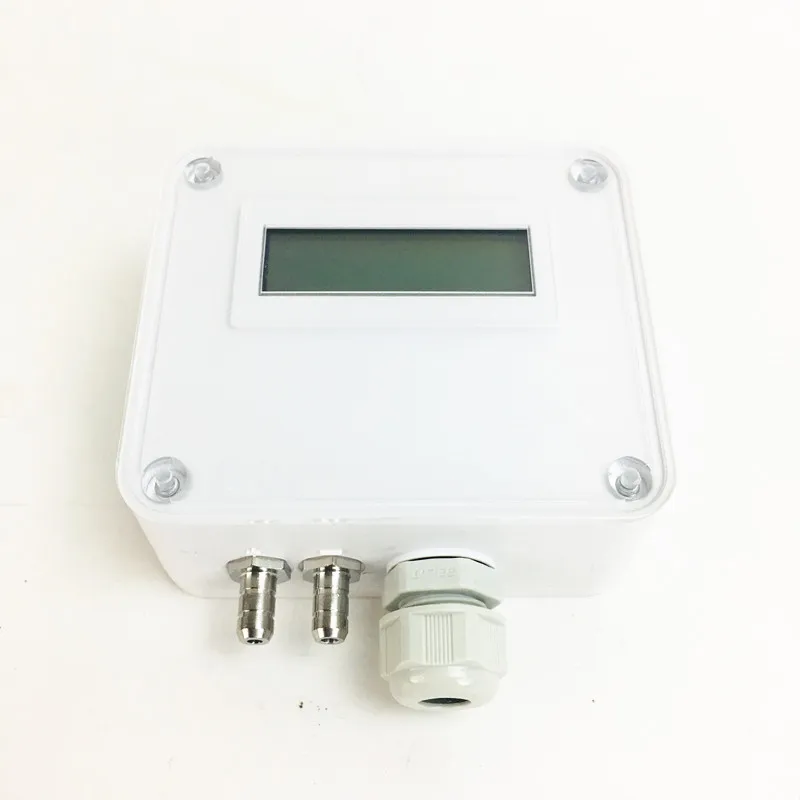

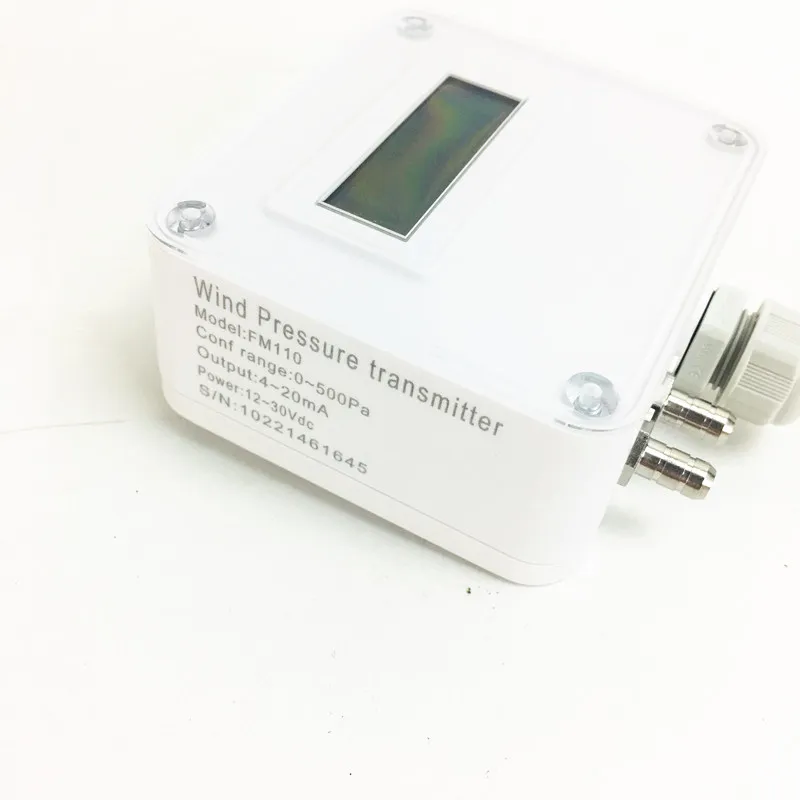

Detailed Images Differential smart pressure transmitter instrument with LCD display

Specification smart differential pressure transmitter

Features smart differential pressure transmitter

Material:industrial plastic,flame retarded rating: UL94-V0

Protection grade:IP65

Display:LCD display,50 x 22.5 mm

Number height:test value 10 mm unit 5 mm

Pressure connection:metal barb connection,Ø 6.2 mm

Cable connection:max diameter: Ø 8 mm

Weight:166g

Applications smart differential pressure transmitter

1It is suitable for HVAC, industrial equipment, intelligent building, testing stations and other places
Micro-pressure display and signal acquisition
2 FM110 Range: -1,000Pa ~ 1,000Pa (minimum set 0 ~ 100Pa)
FM112 Range: -10,000Pa ~ 10,000Pa (minimum set 0 ~ 1,000Pa)
Pressure range can be set up on their own
3 Input voltage: 16 ~ 30Vac / Vdc
4 Output signal: 0 ~ 10V and 4 ~ 20mA (2-wire output can be used simultaneously)
Over five kinds of pressure units can be switched
6 LCD backlit digital display
7 boot automatic zero calibration
8 manual key pressure zero point calibration
9 imported micro-pressure core
10 ABS industrial plastic housing, IP65 protection class
11 rotatably secured to the mounting plate
