Description Micro air pressure manometer differential pressure
gauge
2000 series differential pressure gauge minimum range 0-30Pa,
maximum range 0-30KPa. There are as many as 88 kinds of range and
metric / imperial units to choose from. This differential pressure gauge using frictionless magnetic
components, can rapidly measure the micro-pressure air or
non-corrosive gases, including positive, negative (vacuum) or
differential. No wear, hysteresis and clearance. Not filling,
vaporization and freezing. This design has anti-vibration,
anti-shake and high overpressure capability, you can guarantee
access to high precision. The design impact, shock and overload
protection.
Specification Micro air pressure manometer differential pressure
gauge
| Medium | air and non-combustible, compatible gases (optional gas) |
| Housing | cast aluminum housing or ABS shell, glass beveled panels. Dark gray
coating, can withstand 168 hours salt spray test |
| Accuracy | 2% FS (mm units, and the range with the corresponding pa) |
| Pressure range | -20Hg To 15 psig (-0.677 bar to 1.034 bar) |
| Temperature range | 20 to 140 ° F (-6.67 to 60 ° C) |
| Hole size | 114mm |
| Mounting Orientation | Diaphragm in vertical |

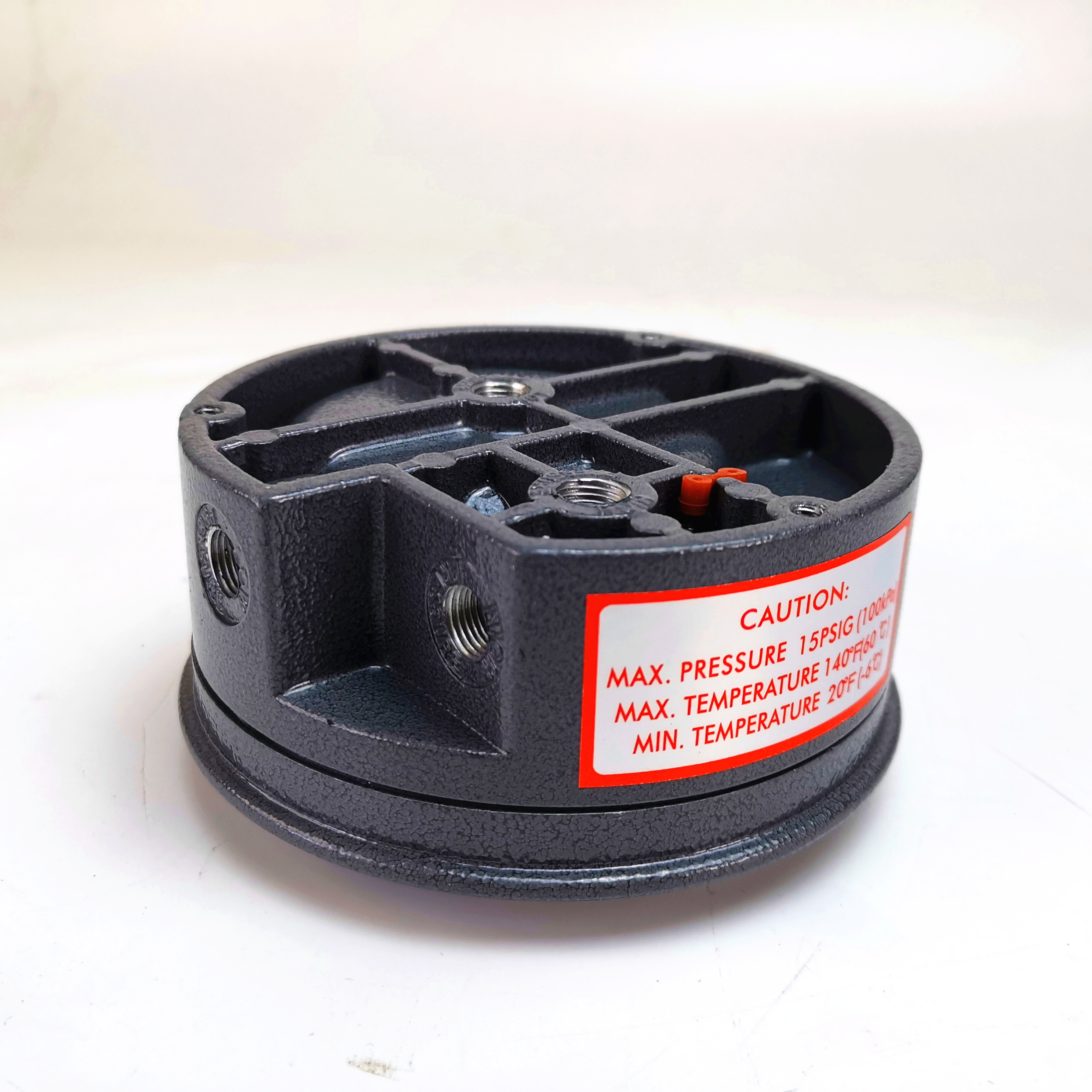

| Connections | same 1/8 "NPT high and low pressure fittings, one pair on the side,
one pair in the back |
| Weight | 500g / only |
| Standard accessories | two 1/8 "NPT threaded connectors for high and low pressure fittings
can be connected with a rubber tube; two 1/8" NPT plug for blocking
the remaining two high and low pressure ports; three a threaded
countersunk mounting coupling (mounting ring, according to buckle
holder for three interfaces to replace MP and count on attachments
HP). |
1. Medium: air and non-combustible, compatible gases (optional gas)
2. Housing: cast aluminum housing or ABS shell, glass beveled
panels. Dark gray coating, can withstand 168 hours salt spray test
3. Accuracy: 2% FS (mm units, and the range with the corresponding
pa)
4. Pressure range:. -20Hg To 15 psig (-0.677 bar to 1.034 bar)
5. Temperature range: 20 to 140 ° F (-6.67 to 60 ° C)
6. Hole size: 114mm
7. Mounting Orientation: Diaphragm in vertical
8. Connections: same 1/8 "NPT high and low pressure fittings, one
pair on the side, one pair in the back
9. Weight: 500g / only
10. Standard accessories: two 1/8 "NPT threaded connectors for high
and low pressure fittings can be connected with a rubber tube; two
1/8" NPT plug for blocking the remaining two high and low pressure
ports; three a threaded countersunk mounting coupling (mounting
ring, according to buckle holder for three interfaces to replace MP
and count on attachments HP)
Dmensino Micro air pressure manometer differential pressure gauge
