    Magrfhelic Micro Air Low Analog Differential Pressure Gauge 0-60pa

    Ask Lasest Price
    Brand Name : Yunyi
    Model Number : 2000
    Payment Terms : T/T, Western Union
    Supply Ability : 500pcs per week
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

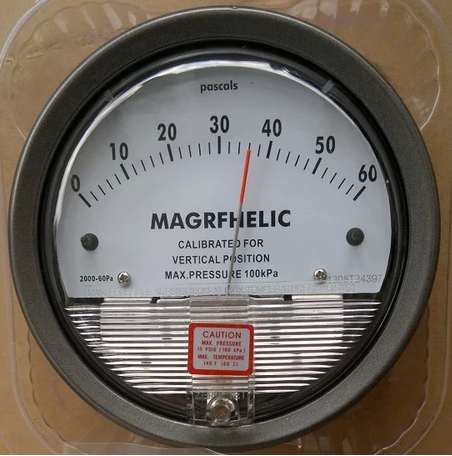

    Magrfhelic Micro Air Low Analog Differential Pressure Gauge 0-60pa

    Magrfhelic Micro Air Low Analog Differential Pressure Gauge 0-60pa


    Description Magrfhelic Micro Air Low Analog Differential Pressure Gauge 0-60pa

    An elastic pressure gauge that uses the principle of magnetic link and uses a rubber diaphragm as a sensitive element for measurement.


    Structure, principle

    The 2000 differential pressure gauge shell is made of solid cast aluminum, the 104mm dial is clear and easy to read, the use of simple, frictionless magnet spiral movement, and the rubber diaphragm as the sensitive element is an elastic pressure gauge for measurement. It can use the pointer to quickly indicate the pressure of the measured gas, whether it is positive pressure, negative pressure or differential pressure. This design has the functions of shock, shaking and overpressure. Moreover, there is no need to fill the watch with liquid, so there is no problem of vaporization, freezing, or peculiar smell.


    The 2000 differential pressure gauge is widely used to measure the pressure of fans and blowers, and the pressure of the furnace. It is used to measure the pressure difference before and after the high, medium and low efficiency filters in the HVAC system, and the pressure difference between the inside and outside of the purification air shower. It is used to measure the medicine. The pressure difference between inside and outside of clean rooms in factories, food factories, and cosmetics factories is also used for blood pressure and respiratory pressure monitoring in medical and health care equipment.


    Parameter Magrfhelic Micro Air Low Analog Differential Pressure Gauge 0-60pa


    Medium:air and non-combustible, compatible gases (optional gas)
    Housing:cast aluminum housing or ABS shell, glass beveled panels. Dark gray coating, can withstand 168 hours salt spray test
    Accuracy:2% FS (mm units, and the range with the corresponding pa)
    Pressure range:.0-60pa
    Temperature range:20 to 140 ° F (-6.67 to 60 ° C)
    Hole size:114mm
    Mounting Orientation:Diaphragm in vertical
    Connections:same 1/8 "NPT high and low pressure fittings, one pair on the side, one pair in the back
    Weight:500g / only
    Standard accessories:two 1/8 "NPT threaded connectors for high and low pressure fittings can be connected with a rubber tube; two 1/8" NPT plug for blocking the remaining two high and low pressure ports; three a threaded countersunk mounting coupling (mounting ring, according to buckle holder for three interfaces to replace MP and count on attachments HP)


    Features Magrfhelic Micro Air Low Analog Differential Pressure Gauge 0-60pa


    Imported plastic powder
    spray Imported plastic powder spray treatment, suitable thickness and drying temperature, high hardness, not easy to foam and aluminum rust, drop test from a height of one meter, no damage to the surface.
    High-strength plastic PC cover Good permeability, clear viewing angle, excellent strength, good safety protection

    Installation Micro Air Low Analog Differential Pressure Gauge 0-60pa:


    Embedded installation Surface mount installation



    Quality Magrfhelic Micro Air Low Analog Differential Pressure Gauge 0-60pa for sale
