Water Oil Portable Ultrasonic Flowmeter Clip On Bracket Mounted

Ask Lasest Price
Brand Name :	YunYi
Model Number :	tuf-2000P
Price :	USD400.0-USD1000.0 PER PIECE
Payment Terms :	T/T, Western Union
Supply Ability :	500 Unit/Units per Week
Delivery Time :	10DAYS

Add to Cart

Product Details
Company Profile

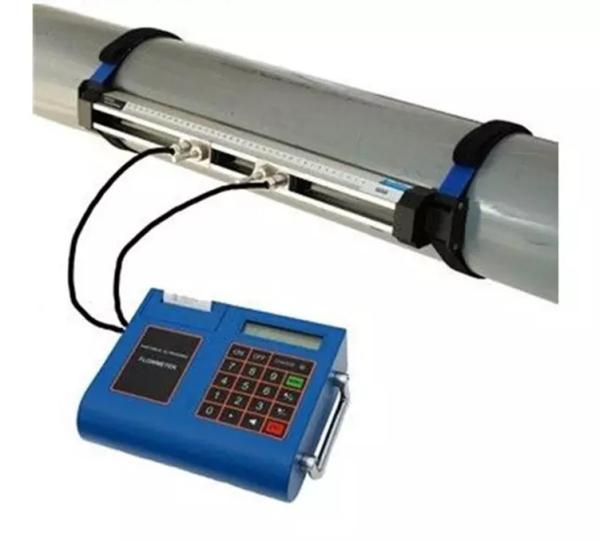

Water Oil Portable Ultrasonic Flowmeter Clip On Bracket Mounted

Description Clip-on Bracket Mounted Water Oil Ultrasonic Flowmeter Portable Ultrasonic Flowmeter

TUF-2000P Portable ultrasonic flow meter realizes the non- contact measurement. It is ideal for flow surveys and closed-pipe application where non-invasive measurement of liquids is required. Built-in SD card and printer can timely or regularly print pre-set measuring results.Temperature and heat can also be measured by connecting clamp on temperature transducer.Widely be used in water supply, heat supply, chemical industry, machinery and energy resources.

Detailed Images Clip-on Bracket Mounted Water Oil Ultrasonic Flowmeter Portable Ultrasonic Flowmeter

Specification of Clip-on Bracket Mounted Water Oil Ultrasonic Flowmeter Portable Ultrasonic Flowmeter

Features of Clip-on Bracket Mounted Water Oil Ultrasonic Flowmeter Portable Ultrasonic Flowmeter

1. Large measurement range, several types of sensors are optional, pipe size DN15mm-DN6000mm
2, Data storage, the measurement results can be stored on the SD card, which is convenient for data analysis and statistics
3. Rechargeable power supply, built-in rechargeable Ni-MH battery, can work continuously for ≥ 12 hours, uninterrupted measurement
4. RS485 communication interface, upload parameters and measurement results to the host computer
5. Built-in printer, which can print data in real time, and can also print more than 20 preset measurement results regularly
6. Various input and output signals, output signal: 4-20mA, pulse signal, relay signal. Input signal: 3 channels 4-20mA

Slection Guide Clip-on Bracket Mounted Water Oil Ultrasonic Flowmeter Portable Ultrasonic Flowmeter

Data sheet Clip-on Bracket Mounted Water Oil Ultrasonic Flowmeter Portable Ultrasonic Flowmeter

Items Performance & Parameter
Flow meter	Principle	Transit time ultrasonic flowmeter
	Accuracy	±1%
	Display	2×20 character LCD with backlight, support the language of Chinese, English and Italian
	Signal Output	1 way 4-20mA output, electric resistance 0~1K, accuracy 0.1%
		1 way OCT pulse output(Pulse width 6~1000ms, the default value is 200ms)
		1 way relay output
	Signal Input	3 way 4-20mA input,, acquire signals such as temperature, press and liquid level.
		Achieve to heat measurement by connecting the temperature transducer PT100.
	Data Interface	RS485 serial interface, upgrade the flowmeter software by computer, support MODBUS
	Data Record	Thermal printer, external SD card(2G of capacity)
Pipe Installation Condition	Pipe Material	Steel, Stainless steel, Cast iron, Copper, Cement pipe, PVC, Aluminum, Glass steel product, liner is allowed.
	Pipe Diameter	15~6000mm
Measuring Medium	Straight Pipe	Transducer installation should be satisfied: upstream 10D, downstream 5D, 30D from the pump.
	Type of Liquid	Single liquid can transmit sound wave, such as water, sewage, oil, chemicals, plant effluent, beverage, ultra-pure liquids, etc.
	Temperature	- 30~160℃
	Turbidity	Less than 10000ppm and little bubble
	Flowrate	0~±10m/ s
Working Environmen	Temperature	Convertor: -20~60; Transducer: -30~160
	Humidity	Convertor : 85% RH；TransducerI protection level:lP67
Power Supply	8 built-in Ni-MH batteries 1.2V(for over 20 hours of operation). Could operate 8 hours by connecting 4-20mA signal output. 90V - 260V AC adapter
Power Consumption	1. 5W
