Description Portable ultrasonic water clamp on sensor module flow
meter
TUF-2000M ultrasonic module is inline measurement for long term.The
convertor and transducer are installed fixing on the pipe,with the
advantages of small size,low cost and easy operation.This flowmeter
can be virtually applied to a wide range of measurement. A variety
of liquid applications can be accommodated: ultra-pure liquids,
potable water, chemicals, raw sewage, reclaimed water, cooling
water, river water, plant effluent. etc
Detailed Images Portable ultrasonic water clamp on sensor module flow meter
Specifition Portable ultrasonic water clamp on sensor module flow
meter
| Items Performance & Parameter |
Convertor | Principle | Transit- time ultrasonic flowmeter |
| Accuracy | ±1% |
| Operation | 4 keyboards operation |
|
Signal Output | 1 way 4~ 20mA output, electric resistance 0~ 1K,accuracy0. 1% |
| | 1 way OCT pulse output( Pulse width 6~ 1000ms,default is 200ms) |
| | 1 way Relay output |
| Signal Input | 3 way 4~ 20mA input, accuracy 0. 1%,acquisition signal such as
temperature, press and liquid level |
| | Connect the temperature transducer Pt100, can finish the
heat/energy measurement |
| Data Interface | Insulate Rs485 serial interface, upgrade the flowmeter software by
computer, support the MODBUS |
| Special Cable | Twisted-pair cable, generally, the length under 50 meters; Select
the RS485, transmission distance can over 1000m |
Pipe Installation Condition | Pipe Material | Steel, Stainless steel, Cast iron, Copper, Cement pipe, PVC,
Aluminum, Glass steel product, liner is allowed |
| Pipe Diameter | 15~ 6000mm |
| Straight Pipe | Transducer installation should be satisfied: upstream10D,
downstream 5D, 30D from the pump |
Measuring Medium |
Type of Liquid | Single liquid can transmit sound wave, such as Water (hot water, chilled water, city water, sea water,
waste water, etc.); Sewage with small particle content; Oil ( crude oil, lubricating
oil, diesel oil, fuel oil, etc.); Chemicals ( alcohol, etc.); Plant
effluent; Beverage; Ultra- pure liquids, etc. |
| Temperature | - 30~ 160℃ |
| Turbidity | No more than 10000ppm and less bubble |
| Flowrate | 0~±7m/ s |
| Working Environment | Temperature | Convertor:- 20~ 60℃；Flow Transducer:- 30~ 160℃ |
| Humidity | Convertor: 85% RH；Flow Transducer:can measure under water, water
depth≤2m(tansducer sealed glue) |
Power Supply | DC8~36V or AC10~30V |
Power consumrtion | 1. 5W |
| Dimension | 95*95*35MM(Convertor) |
Feature Portable ultrasonic water clamp on sensor module flow meter
High Accuracy
Better than ±1%
Wide Measuring Range
Several types transducer for selection, pipe size from Dn15mm to
Dn6000mm
High Reliability
Adopt low voltage, multi-pulse technology to improve accuracy,
useful life and reliability.
Strong Anti-interference
Dual-balance signal differential receiver/driver circuit to avoid
interference of converter, TV tower, high voltage line etc.
Powerful Recording Function
Automatically record the following data:
1.The totalizer data of the last 512 days/128 months/10 years
2.The time and corresponding flow rate of the last 64 times of
power on and off events
3.The working status of the last 32 days
Far t ransmission distance, easy for networking
RS485 support wireless network, connect GPRS module to accomplish
wireless transmission .
Support Heat Measurement
Connect the t emperature t ransducer , can f inish the heat/ energy
measurement
Application Portable ultrasonic water clamp on sensor module flow
meter
Dimension Portable ultrasonic water clamp on sensor module flow
meter

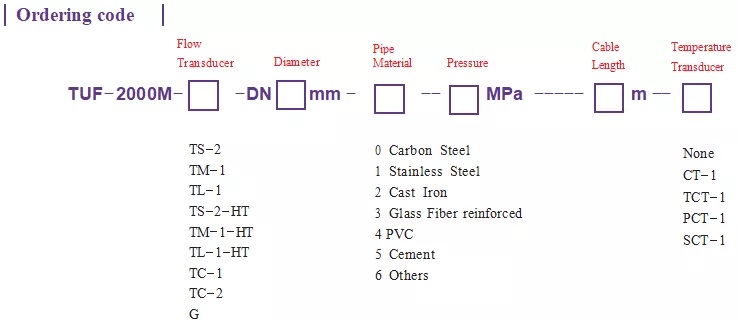

Selection Guide Portable ultrasonic water clamp on sensor module
flow meter
