    4 - 20mA Online Display Oil Turbine Flow Meter Smart Liquid Turbine Flow Meter

    Ask Lasest Price
    Brand Name : Yunyi
    Model Number : LWQ
    Certification : CE
    Price : 230~365USD/PCS
    Payment Terms : T/T, Western Union
    Supply Ability : 100pcs per week
    Delivery Time : 10 work days
    • Product Details
    • Company Profile

    4 - 20mA Online Display Oil Turbine Flow Meter Smart Liquid Turbine Flow Meter

    Smart 4-20mA online display oil turbine flow meter liquid turbine flow meter


    Description

    The liquid turbine flowmeter is suitable for the measurement of liquids. The medium is required to be clean, and a filter must be installed. The instrument has high accuracy, good repeatability, compact structure, easy installation and maintenance, and high pressure resistance.
    Applicable medium: liquid
    Inapplicable medium: gas, steam
    The medium is required to be clean, and a filter must be
    installed

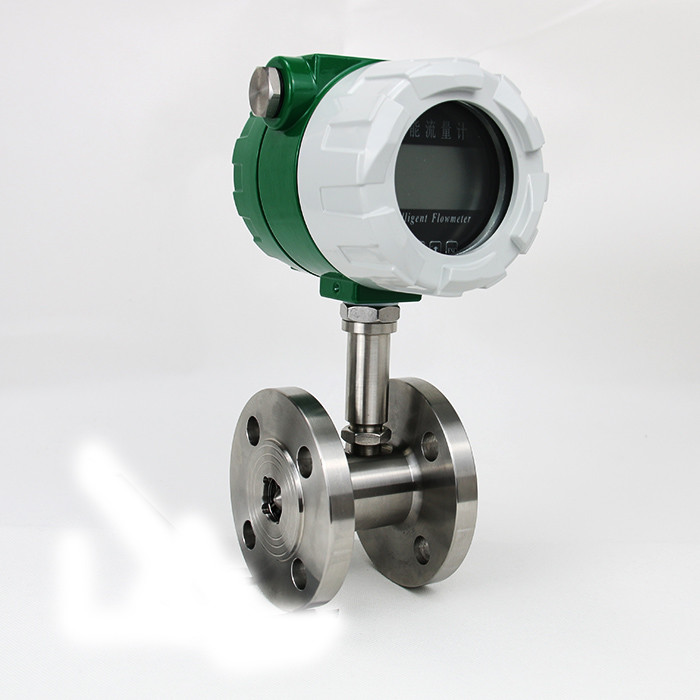

    Detailed Image

    4 - 20mA Online Display Oil Turbine Flow Meter Smart Liquid Turbine Flow Meter4 - 20mA Online Display Oil Turbine Flow Meter Smart Liquid Turbine Flow Meter4 - 20mA Online Display Oil Turbine Flow Meter Smart Liquid Turbine Flow Meter


    Specification

    Nominal diameter: Pipe type: DN4~DN200 Insertion type: DN100~DN2000
    Accuracy class:
    Pipeline: ±0.5 class, ±1.0 class
    Plug-in: ±1.5 class, ±2.5 class, high precision up to 0.2 class
    Ambient temperature: -20℃~50℃
    Medium temperature: Measuring liquid: -20℃~120℃ Measuring gas: -20℃~80℃
    Atmospheric pressure: 86KPa~106KPa
    Nominal pressure: 1.6Mpa, 2.5Mpa, 6.4Mpa, 25Mpa
    Explosion-proof grade: ExdIIBT4
    Connection method: threaded connection, flange clamping, flange connection, plug-in, etc.
    Straight pipe section requirements:
    Gas: The upstream straight pipe section should be ≥10DN, and the downstream straight pipe section
    should be ≥5DN.
    Liquid: The upstream straight pipe section should be ≥20DN, and the downstream straight pipe
    section should be ≥5DN.
    Plug-in type: the upstream straight pipe section should be ≥20DS, and the downstream straight
    pipe section should be ≥7DS (DS is the measured inner diameter of the pipeline)
    Display mode:
    (1) Remote display: pulse output, current output (with display instrument)
    (2) On-site display: 8-digit LCD display cumulative flow, unit (m3)
    4-digit LCD display instantaneous flow, unit (m3/h), battery power, frequency, flow rate
    (3) Temperature and pressure compensation type:
    A. Display standard instantaneous flow and standard cumulative flow
    B. Display current pressure, temperature, battery voltage
    Output function:
    (1) Pulse output, p-p value is determined by the power supply
    (2) 4~20mA two-wire current output
    (3) Unit volume pulse output and sensor original pulse output
    (4) With RS485 communication interface
    Power supply:
    (1) DC5~24V
    (2) The standard 3V lithium battery is installed inside the instrument and can be used
    continuously for more than eight years.
    (3) The temperature and pressure compensation type 3V lithium battery can be used continuously for
    more than four years when installed inside the instrument. Transmission distance: The distance
    from the sensor to the display instrument can reach 500m

    Features

    1. High accuracy, generally up to ±0.5%R, ±1.0%R
    2. Good repeatability, short-term repeatability can reach 0.05% - 0.2%
    3. Compact and lightweight structure, easy installation and maintenance
    4. High withstand voltage level
    5. Small pressure loss and strong flow capacity
    6. Strong anti-vibration performance
