Ultrasonic Flow Meter Handheld Flowmeter RS485 Ultrasone Flowmeter
Sensor 4-20mA
Description of Ultrasonic Flow Meter Handheld Flowmeter RS485
Ultrasone Flowmeter Sensor 4-20mA
Ultrasonic Flow Meter Handheld Flowmeter RS485 Ultrasone Flowmeter
Sensor 4-20mA has been upgraded based on the previous ultrasonic
flow meter which is still the main product line of the company. The
new Version retains most of the excellent features and functions of
the previous versions: the pulse measurement technology, the
ultrasonic igniting and the small signal receiving circuits etc.
The main improvements are made on the battery supply circuit and on
the transmitting circuits. All other circuits are simply integrated
into this new version without major modifications, due to the fact
that we have already applied the most advanced measurement
technologies and attained a more reliable model of ultrasonic flow
meter.
Specification of Ultrasonic Flow Meter Handheld Flowmeter RS485
Ultrasone Flowmeter Sensor 4-20mA
| Linearity | 0.5% |
| Repeatability | 0.2% |
| Accuracy | ±1% of reading at rates>0.2 mps |
| Response Time | 0-999 seconds, user-configurable |
| Velocity | ±32 m/s |
| Pipe Size | 15mm-6000mm |
| Totalizer | 7-digit totals for net, positive and negative flow respectively |
| Liquid Types | Virtually all liquids |
| Security | Setup values Modification Lockout. Access code needs unlocking |
| Display | 4x8 Chinese characters or 4x16 English letters |
| Communication Interface | RS-232, baud-rate: from 75 to 57600. Protocol made by the
manufacturer and compatible with that of the FUJI ultrasonic flow
meter. User protocols can be made by user requirements |
| Transducer Cord Length | Standard 5m x 2, optional 10m x 2 |
| Power Supply | 3 AAA built-in Ni-H batteries. When fully recharged it will last
over 12 hours of operation. 100V-240VAC for the charger |
| Data Logger | Built-in data logger can store over 2000 lines of data |
| Manual Totalizer | 7-digit press-key-to-go totalizer for calibration |
| Housing Material | ABS |
| Case Size | 210x90x30mm |
| Main unit Weight | 500g with batteries |
Specification of Ultrasonic Flow Meter Handheld Flowmeter RS485
Ultrasone Flowmeter Sensor 4-20mA
| Matched Sensor | Measure Range | Flow Temp | Accuracy |
| Standard external clip-on probe | Small probe | DN15～100mm | －30℃～＋110℃ | ±1％ |
| Middle probe | DN50～1000mm | －30℃～＋110℃ | ±1％ |
| Large probe | DN300～6000mm | －30℃～＋110℃ | ±1％ |
| High temperature external clip-on probe | Small probe | DN15～100mm | －30℃～＋160℃ | ±1％ |
| Middle probe | DN50～1000mm | －30℃～＋160℃ | ±1％ |
| Medium | water, sea water, industrial wastewater, acid and alkali liquid,
various oils and other liquid can transfer sound |
| Velocity range | 0～±32m/S |
| Measurement precision | ±1％ of indicating value, Velocity ＞0.2m/S |
| Pipe Size | 15mm～6000mm |

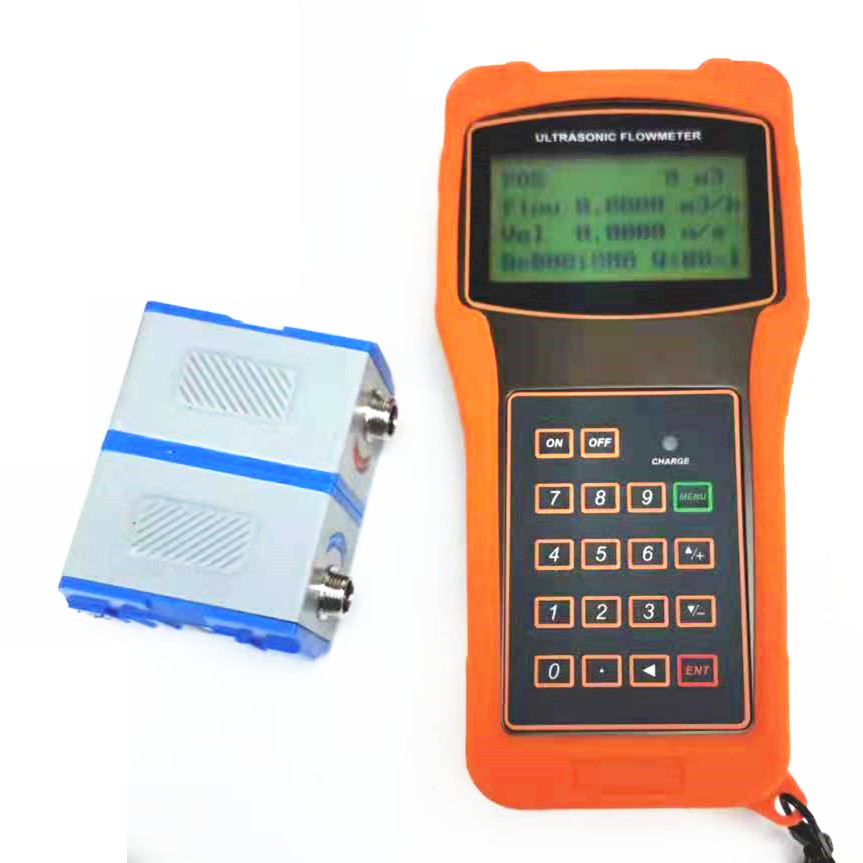

Detaild picture of Ultrasonic Flow Meter Handheld Flowmeter RS485
Ultrasone Flowmeter Sensor 4-20mA
Feature of Ultrasonic Flow Meter Handheld Flowmeter RS485 Ultrasone
Flowmeter Sensor 4-20mA
----the signal receiving circuits feature self-adapting performance
so as to ensure that the user can easily operate the instrument
without any adjustment.
----the built-in rechargeable Ni-MH battery can work continuously
for more than 12 hours without recharging.
Application of Ultrasonic Flow Meter Handheld Flowmeter RS485
Ultrasone Flowmeter Sensor 4-20mA
* Large-screen LCD
* Non-contacting measuring
* Built-in data-logger
* Built-in rechargeable battery
* High accuracy measuring
* Wide measuring range
* Small and light
* RS-232 serial interface
Mounted of Ultrasonic Flow Meter Handheld Flowmeter RS485 Ultrasone
Flowmeter Sensor 4-20mA
