RS485 Sanitary Electromagnetic Water Flowmeter 15m/S 1.6mpa

Ask Lasest Price
Brand Name :	yunyi
Model Number :	DN50
Certification :	ce
Price :
Payment Terms :	L/C, D/P, T/T, Western Union
Supply Ability :	1000pcs/month
Delivery Time :	10days

Add to Cart

Product Details
Company Profile

RS485 Sanitary Electromagnetic Water Flowmeter 15m/S 1.6mpa

Description of RS485 sanitary electromagnetic water milk flow meter flowmeter

RS485 sanitary electromagnetic water milk flow meter flowmeter is adopt stainless steel watchcase thickening, connecting flange is high pressure flange, can stand the pressure of 42MPa. digital electromagnetic flowmeter consists of two parts, the sensor and converter. electromagnetic flowmeter is based on the work of Faraday's law of electromagnetic induction, used to measure the conductivity is greater than 5μS / cm conductive liquid volumetric flow rate, is a measure of the volume flow of conductive medium for induction meter. In addition to measure the volume flow of conductive liquid, the electromagnetic flow meter can also be used to measure the volume of a homogeneous liquid solid twophase flow of a liquid suspension of acid and alkali and other strong corrosive liquids and slurries, pulp and paper pulp

RS485 sanitary electromagnetic water milk flow meter flowmeter application

Item	food grade modbus RS485 sanitary electromagnetic water milk flow meter
Item	water electromagnetic flowmeter
Size(mm)	DN15mm---DN3200mm
Medium	Conductive liquid, slurry
Medium Temperature	Chloroprene Rubber:-10-60℃: PTFE:-10-120℃
Installation Type	Flange connection, Insert type, sanitary clamp type, thread connection.
Lining	Chloroprene Rubber,PTFE, Polyurethane ,fluororesin-46
Electrode material	316L,HC,HB,Titanium,Tantalum,Platiniridium
Grade of Accuracy	0.2%, 0.5%
Flow Velocity	≤15m/s
Rated pressure	1.0MPa, 1.6MPa, 2.5MPa, 4MPa
Cable Interface	M20*1.5 or G1/2 Female Thread etc.
Sealed	IP65, IP68
Output Signal	4-20mA Current or Pulse
Communication	RS485 Protocol Modbus protocol
Power Supply	220VAC, 24VDC
	The instantaneous flow and cumulative flow

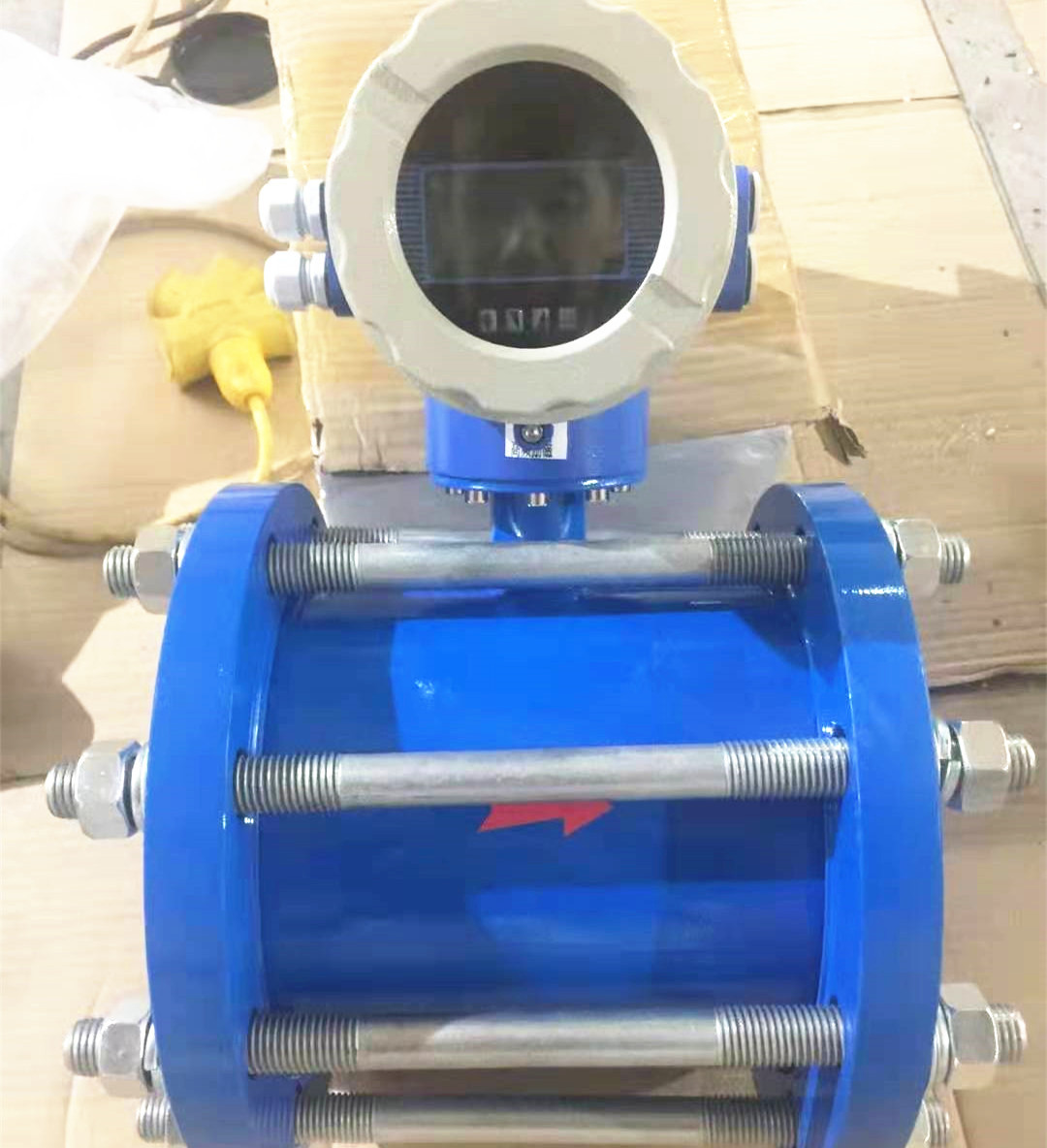

RS485 Sanitary Electromagnetic Water Flowmeter 15m/S 1.6mpa

Feature of RS485 sanitary electromagnetic water milk flow meter flowmeter

1. LCD display of the converter.
2. Automatic alarm functions for selfdiagnosis, empty load test, high and low limit of flow, two-stage flow value, etc.
3. It is applicable not only to general process, but also in tough applications such as mining, papermaking, pastry, etc.
4. High pressure sensor with PFA liner is resistant to high pressure and negative pressure, and available to chemistry and corrosive solution.

Application of RS485 sanitary electromagnetic water milk flow meter flowmeter

1. Drinking water supply, etc.
2. Chemical acid, lye, conductive solution, cooling fluid, additives etc.
3. Drink water, beer, wine, alcohol, milk, yogurt, fruit juice, syrup, blood etc.
4. Refrigeration / air conditioning and refrigeration thermal measurement, or heat energy.
5. Sewage, industrial sewage discharge, sewage etc
6. The textile industry of water, pigments, chemicals, bleaching chemicals etc.
