    1.5W Handheld Water Flow Meter ABS Plastic Housing

    Ask Lasest Price
    Brand Name : Yunyi
    Model Number : TUF-2000H
    Certification : /
    Price : $400~$800
    Payment Terms : T/T, Western Union
    Supply Ability : 10/per week
    Delivery Time : 10
    • Product Details
    • Company Profile

    1.5W Handheld Water Flow Meter ABS Plastic Housing

    Description Handheld Ultrasonic Water Flow Meter Plastic China Price


    This flowmeter can be virtually applied to a wide range of measurement. A variety of liquid applications can be accommodated: ultra-pure liquids, potable water, chemicals, raw sewage, reclaimed water, cooling water, river water, plant effluent. etc

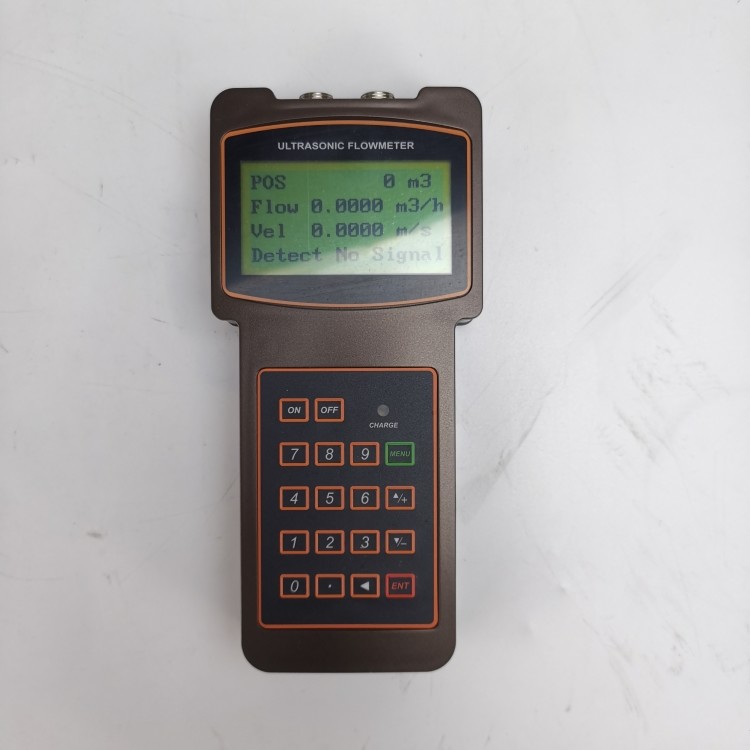

    Detailed Images Handheld Ultrasonic Water Flow Meter Plastic China Price

    1.5W Handheld Water Flow Meter ABS Plastic Housing


    Specification Handheld Ultrasonic Water Flow Meter Plastic China Price

    Items Performance & Parameter

    Convertor

    PrincipleTransit- time ultrasonic flowmeter
    Accuracy±1%

    Display


    4×16 character LCD with backlight, support the language of Chinese, English and Italy

    Data Interface

    Insulate Rs232 serial interface, upgrade the flowmeter software by computer


    Pipe Installation Condition

    Pipe MaterialSteel, Stainless steel, Cast iron, Copper, Cement pipe, PVC, Aluminum, Glass steel product, liner is allowed

    Pipe

    Diameter

    25~6000mm
    Straight PipeTransducer installation should be satisfied: upstream10D, downstream 5D, 30D from the pump

    Measuring Medium


    Type of Liquid

    Single liquid can transmit sound wave,

    such as Water (hot water, chilled water, city water, sea water, waste water, etc.);

    Sewage with small particle content; Oil ( crude oil, lubricating oil, diesel oil, fuel oil, etc.); Chemicals ( alcohol, etc.); Plant effluent; Beverage;

    Ultra- pure liquids, etc.

    Temperature- 30~160℃
    TurbidityNo more than 10000ppm and less bubble
    Flowrate0~±10m/ s
    Working EnvironmentTemperatureConvertor:- 20~60℃;Flow Transducer:- 30~160℃
    HumidityConvertor: 85% RH;Flow Transducer: Ip67
    Power Supply

    3 AAA built-in Ni-MH batteries 1.2V(for over 12 hours of operation). 90V-260V AC adapter

    Power Consumption1. 5W
    Case MaterialABS
    Dimension200*93*32MM(Convertor)

    Features Handheld Ultrasonic Water Flow Meter Plastic China Price

    Better than 1% accuracy.
    0.2% of repeatability.
    Positive / negative / net flow totaliser
    4 line LCD display.
    Operate with clamp-on transducers.
    RS-232/OCT output

    Ni-MH Battery life for up to 12 hours continuous operation.


    Applications Handheld Ultrasonic Water Flow Meter Plastic China Price

    1.5W Handheld Water Flow Meter ABS Plastic HousingWater supply and drainage Heating


    Construction of Energy-saving Metallurgy
