Portable Ultrasonic Water Meter Clamp Sensor Module

Ask Lasest Price
Brand Name :	YunYi
Model Number :	TUF-2000M
Price :	USD230.0-USD400.0 PER PIECE
Payment Terms :	T/T, Western Union
Supply Ability :	1000 Piece/Pieces per Week
Delivery Time :	10days

Add to Cart

Product Details
Company Profile

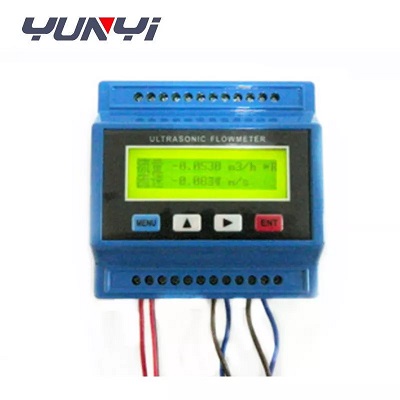

Portable Ultrasonic Water Meter Clamp Sensor Module

Description Portable ultrasonic water clamp on sensor module flow meter

TUF-2000M ultrasonic module is inline measurement for long term.The convertor and transducer are installed fixing on the pipe,with the advantages of small size,low cost and easy operation.This flowmeter can be virtually applied to a wide range of measurement. A variety of liquid applications can be accommodated: ultra-pure liquids, potable water, chemicals, raw sewage, reclaimed water, cooling water, river water, plant effluent. etc

Specifition Portable ultrasonic water clamp on sensor module flow meter

Items Performance & Parameter
Convertor	Principle	Transit- time ultrasonic flowmeter
	Accuracy	±1%
	Operation	4 keyboards operation
	Signal Output	1 way 4~ 20mA output, electric resistance 0~ 1K,accuracy0. 1%
		1 way OCT pulse output( Pulse width 6~ 1000ms,default is 200ms)
		1 way Relay output
	Signal Input	3 way 4~ 20mA input, accuracy 0. 1%,acquisition signal such as temperature, press and liquid level
		Connect the temperature transducer Pt100, can finish the heat/energy measurement
	Data Interface	Insulate Rs485 serial interface, upgrade the flowmeter software by computer, support the MODBUS
Special Cable	Twisted-pair cable, generally, the length under 50 meters; Select the RS485, transmission distance can over 1000m
Pipe Installation Condition	Pipe Material	Steel, Stainless steel, Cast iron, Copper, Cement pipe, PVC, Aluminum, Glass steel product, liner is allowed
	Pipe Diameter	15~ 6000mm
	Straight Pipe	Transducer installation should be satisfied: upstream10D, downstream 5D, 30D from the pump
Measuring Medium	Type of Liquid	Single liquid can transmit sound wave, such as Water (hot water, chilled water, city water, sea water, waste water, etc.); Sewage with small particle content; Oil ( crude oil, lubricating oil, diesel oil, fuel oil, etc.); Chemicals ( alcohol, etc.); Plant effluent; Beverage; Ultra- pure liquids, etc.
	Temperature	- 30~ 160℃
	Turbidity	No more than 10000ppm and less bubble
	Flowrate	0~±7m/ s
Working Environment	Temperature	Convertor:- 20~ 60℃；Flow Transducer:- 30~ 160℃
	Humidity	Convertor: 85% RH；Flow Transducer:can measure under water, water depth≤2m(tansducer sealed glue)
Power Supply	DC8~36V or AC10~30V
Power consumrtion	1. 5W
Dimension	959535MM(Convertor)

Feature Portable ultrasonic water clamp on sensor module flow meter

Name	Model	Measuring range	Temperature range	Size
Standard small sensor	TS-2	DN15--DN100	-30--90ºC	452528mm
Standard medium sensor	TM-1	DN50--DN700	-30--90ºC	643944mm
Standard large sensor	TL-1	DN300--DN6000	-30--90ºC	975453mm

Detailed Images Portable ultrasonic water clamp on sensor module flow meter
