Water Clamp Flow Meter Portable Ultrasonic Sensor Module

Ask Lasest Price
Brand Name :	YunYi
Model Number :	tuf-2000P
Payment Terms :	T/T, Western Union
Price :	USD400.0-USD1000.0 PER PIECE
Supply Ability :	500 Unit/Units per Week
Delivery Time :	10DAYS

Add to Cart

Product Details
Company Profile

Water Clamp Flow Meter Portable Ultrasonic Sensor Module

Description of Portable ultrasonic flow meter

TUF-2000P Portable ultrasonic flow meter realizes the non- contact measurement. It is ideal for flow surveys and closed-pipe application where non-invasive measurement of liquids is required. Built-in SD card and printer can timely or regularly print pre-set measuring results.Temperature and heat can also be measured by connecting clamp on temperature transducer.Widely be used in water supply, heat supply, chemical industry, machinery and energy resources.

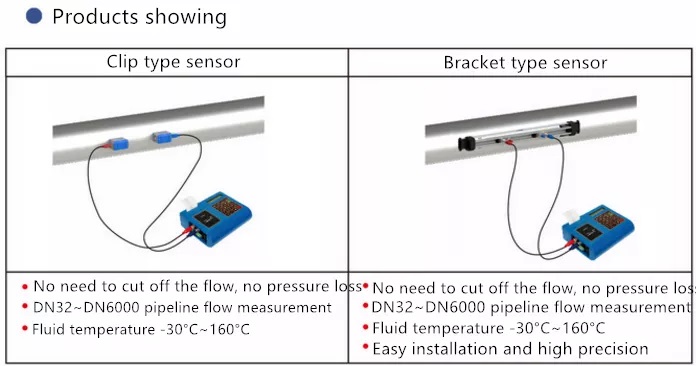

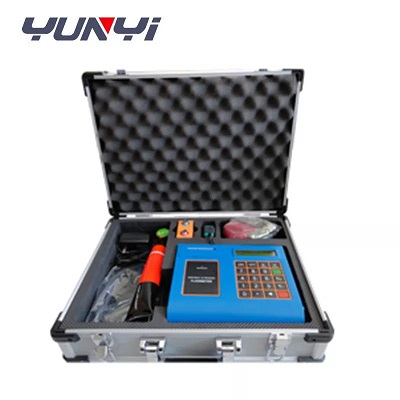

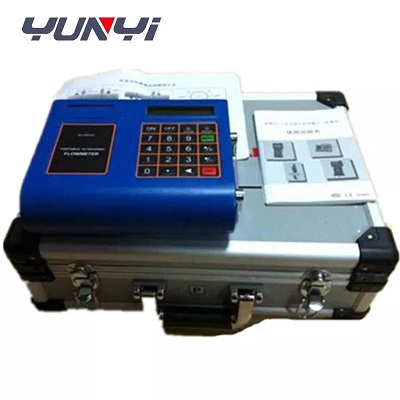

Detailed Images of Portable ultrasonic flow meter

Specification of Portable ultrasonic flow meter

Features of Portable ultrasonic flow meter
1.Precision measurement
2.Small size, light weight
3. Non-contact measurement
4. Large measuring range
5. Charging Power
6. Large-screen LCD
7. Built-in data logger Parameters
8. mainly used to measure ultra-pure liquids, potable water chemicals, raw sewage, reclaimed water, cooling water, river water, plant effluent, etc

Application of Portable ultrasonic flow meter

Data sheet of Portable ultrasonic flow meter

Items Performance & Parameter
Flow meter	Principle	Transit time ultrasonic flowmeter
	Accuracy	±1%
	Display	2×20 character LCD with backlight, support the language of Chinese, English and Italian
	Signal Output	1 way 4-20mA output, electric resistance 0~1K, accuracy 0.1%
		1 way OCT pulse output(Pulse width 6~1000ms, the default value is 200ms)
		1 way relay output
	Signal Input	3 way 4-20mA input,, acquire signals such as temperature, press and liquid level.
		Achieve to heat measurement by connecting the temperature transducer PT100.
	Data Interface	RS485 serial interface, upgrade the flowmeter software by computer, support MODBUS
	Data Record	Thermal printer, external SD card(2G of capacity)
Pipe Installation Condition	Pipe Material	Steel, Stainless steel, Cast iron, Copper, Cement pipe, PVC, Aluminum, Glass steel product, liner is allowed.
	Pipe Diameter	15~6000mm
Measuring Medium	Straight Pipe	Transducer installation should be satisfied: upstream 10D, downstream 5D, 30D from the pump.
	Type of Liquid	Single liquid can transmit sound wave, such as water, sewage, oil, chemicals, plant effluent, beverage, ultra-pure liquids, etc.
	Temperature	- 30~160℃
	Turbidity	Less than 10000ppm and little bubble
	Flowrate	0~±10m/ s
Working Environmen	Temperature	Convertor: -20~60; Transducer: -30~160
	Humidity	Convertor : 85% RH；TransducerI protection level:lP67
Power Supply	8 built-in Ni-MH batteries 1.2V(for over 20 hours of operation). Could operate 8 hours by connecting 4-20mA signal output. 90V - 260V AC adapter
Power Consumption	1. 5W
