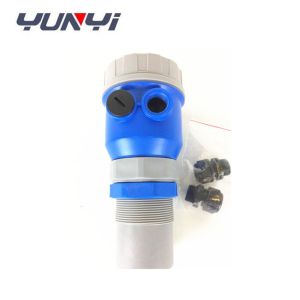

Description Ultrasonic water tank level meter transmitter indicator
sensor
Ultrasonic level measuring instrument, taking the advantages of
various many level measuring instruments, is a universal one
characterized by total digitalized and humanized design. It has
perfect level monitoring, data transmission and man-machine
communication.
It is featured by strong anti-interference performance; free
setting of upper and lower limits and online output regulation,
on-site indication, optional analog, switching value, and RS485
output and easy connection with main unit. The cover, made of
waterproof engineering plastics, is small and firm with ABS probe.
Therefore, it is applicable for various fields concerning level
measuring and monitoring. According to the practical situation, it
also can add other modules, such as RS 485, current output; it can
be match with PLC better.
Specification Ultrasonic water tank level meter transmitter indicator sensor
Range:5,8,10,12,15m
Blind zone:<0.4-0.5m(different for range)
Measure error: 0.25%F.S
Display: LED or LCD
Display resolution:1mm
Frequency::20~350KHz
Power: 12-24VDC
Power consumption:<1.5W
Output (optional):4~20mARL>600Ω(standard)1~5V1~10VRS485 3 NPN 2
relays (AC: 5A250V DC: 10A24V)
Material:ABS
Dimension:Φ92mm×198mm×M60
Electrical interface:M20X1.5
Installation:M60X2 or 61MM
Operating surroundings:normal temperature, normal pressure
Protection degree:IP65(others optional)
| Range | 0-1, 3, 5, 7, 10, 20, max is 50m | Accuracy | 0.25-0.5% |
| Voltage | 24VDC | Resolution | 1mm |
| Frequency | 12kHz to 70kHz | Temp | -20 to 60 DegC |
| Output | 4-20mA | Blind area | 0.25m-0.8m |
| Protection | IP67 | Emission angle | 6 DegC to12 DegC |
| Installation size | Φ58mm/G2 thread | Case material | ABS or of Tetrafluoroethylene |
| Sensor material | ABS Engineering plastics | Keyboard | Three soft touch keys |
Application Ultrasonic water tank level meter transmitter indicator sensor
Widely used in petroleum, chemical, water treatment, water
conservancy, steel, coal, electricity, aerospace and food
processing industries such as Diesel Oil Tank ,water tank and so
on., for acid, alkali, salt, corrosion, high temperature,
explosion-proof and other fields.
Features Ultrasonic water tank level meter transmitter indicator sensor
1, the distance or depth data is directly displayed by the LED
digital tube, which is easy to determine on site, and has a
temperature display.
2, fully covered design, can be used in the field, can directly
measure the liquid.
3, ultrasonic level meter cost-effective, low price
4, the selection of professional ultrasonic small Angle probe,
large transmission power, high sensitivity, long life, long
measurement distance;
5, the upper and lower limits of any point are set, the inverse
value is set, the distance between two points can be set at any
point in the range of the corresponding 4-20mA or 0-5V, the sensor
can be convenient to install the side mounted ultrasonic level
meter debugging, to adapt to various signal connection
requirements. Distance accuracy on-line calibration can be used for
liquid level control of water, wine, sugar, beverage, etc.
6, the output mode has 4-20MA or 0-5V output, 0-10V output. Digital
signal: RS232(three wire)/RS485(choose one, agreed when ordering)
secondary indicator instrument for intelligent digital display
instrument, has a variety of functions, which the upper and lower
limit setting function can make the liquid level and level to
achieve automatic control and alarm.
