Description China tank level gauge magnetic float level sensor
UHZ-10 introducing and absorbing domestic and foreign products, and
to digest, absorb, improve the original magnetic level gauge
standards promulgated by the Ministry of Chemical Industry
HG/T21584 -95 developed products. Can be used in a variety of media
level measurement towers, tanks, tank, spherical vessels and
boilers and other equipment. The magnetic level gauge series can
achieve high sealed, leak-proof and adaptation level measurement
under high pressure, high temperature, corrosive conditions.The
entire process of measuring non-blind, eye-catching display,
intuitive readings. In particular site instruction part, because no
direct contact with the liquid medium, so the high temperature,
high pressure, high viscosity, toxic, harmful, corrosive media, can
show its superiority. Therefore, it is more thanthe traditional
glass, plate level gauge with higher reliability, security,
advanced,practical.
Detailed Images China tank level gauge magnetic float level sensor
Specification China tank level gauge magnetic float level sensor
| range (mm) | 300 ~ 19000 |
| medium density (g/cm3) | ≥ 0.45 |
| medium viscosity: | ≤ 0.02Pa.S |
| working temperature ℃: | -180 ~ 350 |
| pressure levels (MPa): | ≤ 32 |
| measurement accuracy (mm): | ≤ ± 10 |
| Installation: | Side-mounted, roof-mounted, bottom-mounted |
| Protection: | IP65 |
| proof grade: | ib Ⅱ CT4 (intrinsically safe), d Ⅱ BT3 (flameproof) |
| transmission: | 4 ~ 20mA or switch |
Features China tank level gauge magnetic float level sensor
1. Simple structure, convenient installation, reliable and durable.
High reliability and long service life due to no moving parts.
2. The reading is clear, the display is intuitive, the measuring
range is large, and the whole range has no blind area.
3. No energy, environmental protection and energy saving.
4. Various installation methods. It can be flexibly installed
according to the characteristics and needs of the site working
conditions, using different installation methods such as side
mounting and top mounting.
5. It can realize remote alarm and control of liquid level. The
magnetic switch can realize remote alarm and limit control. The
configuration of remote transmitter can also realize the remote
indication, detection and control of liquid level.

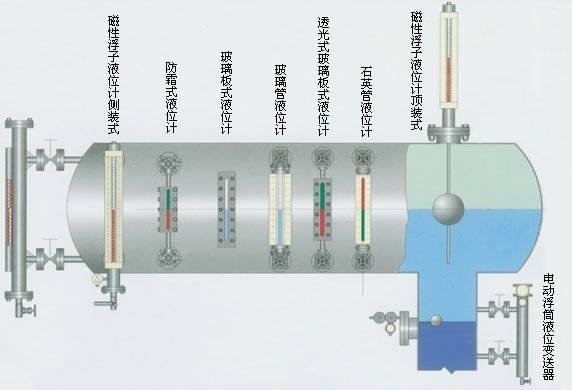

Applications China tank level gauge magnetic float level sensor
Selection Guide China tank level gauge magnetic float level sensor
Measuring length
Connection flange standards
Media name and density
Medium temperature
Medium pressure
Installation
Material selection
