    1200 Celsius Dry Block Temperature Calibrator Touch Screen Dry Well Furnace

    Ask Lasest Price
    Brand Name : Yunyi
    Model Number : W1200T
    Certification : CE
    Price : 1900 usd
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 1000/month
    Delivery Time : 5-7 days
    • Product Details
    • Company Profile

    1200 Celsius Dry Block Temperature Calibrator Touch Screen Dry Well Furnace

    1200 Celsius Touch Screen Dry well furnace Dry Block Temperature Calibrator


    Description of H1200 Celsius Touch Screen Dry well furnace Dry Block Temperature Calibrator

    1200 Celsius Touch Screen Dry well furnace Dry Block Temperature Calibrator is a convenient and efficient temperature calibration instrument., which is easy to use. It can be extensively applied in machinery, chemical industry, food, medicine and other industries. At present, there is a problem of disadvantage of slow heating and slow temperature in the field of dry type calibration furnace in China, which will take a long time for users to calibrate. The latest generation of dry well furnace is designed with the advanced heating principle in the world, which has the characteristics of fast heating, fast temperature and fast cooling, and it greatly improves the existing calibration efficiency. With the assistance of high -precision sensor and reliable temperature control circuit, our dry block temperature calibrator provides higher precision than others in China, and its technology has reached international standard.int.


    Usage of 1200 Celsius Touch Screen Dry well furnace Dry Block Temperature Calibrator

    ● Temperature range:100~1200℃;
    ● Resolution rate:0.01and 0.001℃ for option;
    ● Scale unit:℃,℉;
    ● Accuracy:0.1%;
    ● Temperature stability:≤±0.2℃/15 mins;
    ● Horizontal temperature field :≤±0.25℃(with thermostat equipped);
    ● Vertical temperature field:The deviation in the range of 10mm calculated from the bottom of the hole of the soaking block is 1℃
    ● Insert depth:135mm;
    ● Heating speed :25℃~100℃:10mins;100℃~600℃:15mins;
    600℃~800℃:20mins;800℃~1200℃:30mins;
    ● Cooling speed:1200℃~800℃:25mins;800℃~600℃:15mins;
    600℃~300℃:60mins;300℃~50℃:180mins;

    Specification of 1200 Celsius Touch Screen Dry well furnace Dry Block Temperature Calibrator

    ● Environment temperature ranges:0~50℃(32-122℉);
    ● Environmental humidity ranges:0%-90%(No condensation);
    ● Dimension:250mm×150mm×310mm(L×W×H)
    ● Net Weight:11kg;
    ● Working voltage:220V.AC±10%,可选配110V.AC±10%,45-65Hz;
    ● Power:3000W.


    Feature of 1200 Celsius Touch Screen Dry well furnace Dry Block Temperature Calibrator

    Small volume, light weight, easy to carry;
    Multiple types of inserted into the pipe and can meet different size, the number of sensor test and calibration. And can customize according to the special needs of users;
    Good level temperature filed and vertical temperature field;
    The insert depth of sensors is deeper than other manufacturers.
    5.0 -inch TFTLCD touch-screen, 16 bit true color image, simple and intuitive to use;
    Fast cooling, easy setting, good temperature control stability;

    Soaking block can be replaced;
    With load short circuit, load circuit, sensor protection, and other functions.
    With functions of load short circuit, load cut-off circuit and sensor protection


    Application of 1200 Celsius Touch Screen Dry well furnace Dry Block Temperature Calibrator

    The main calibration temperature components (thermocouples, platinum resistance, thermometers), temperature transmitters (sensors), temperature switches and temperature instruments are now widely used in industrial and mining enterprises, scientific research institutions, colleges and universities, military industry, measurement and other departments.

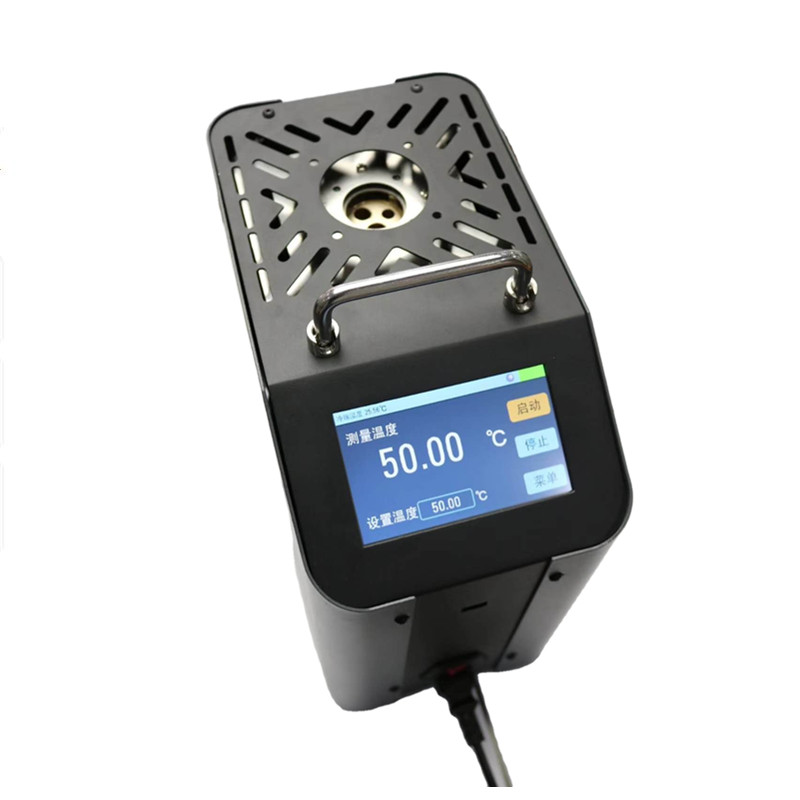

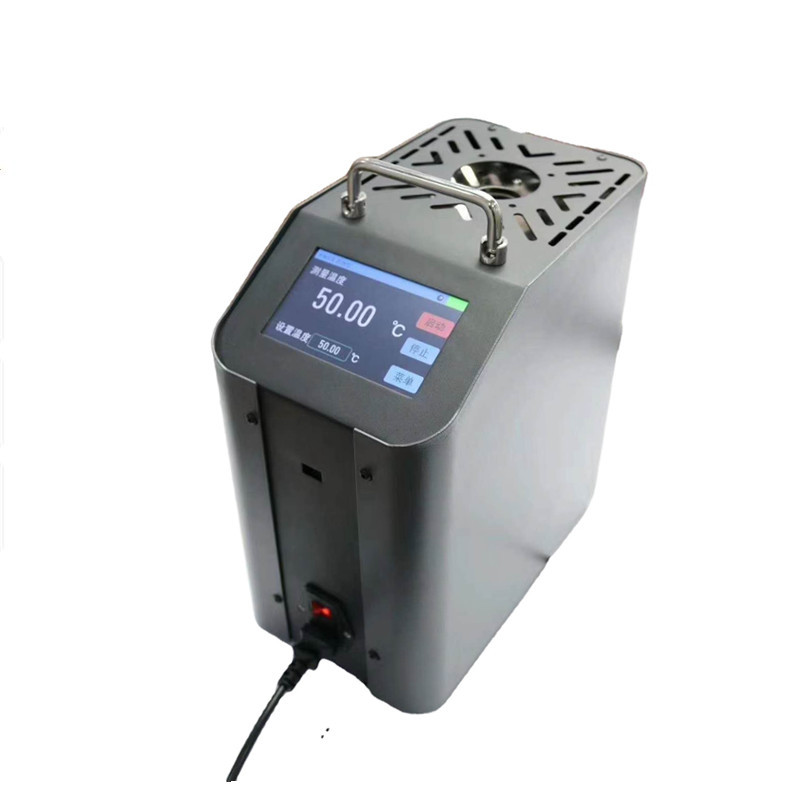

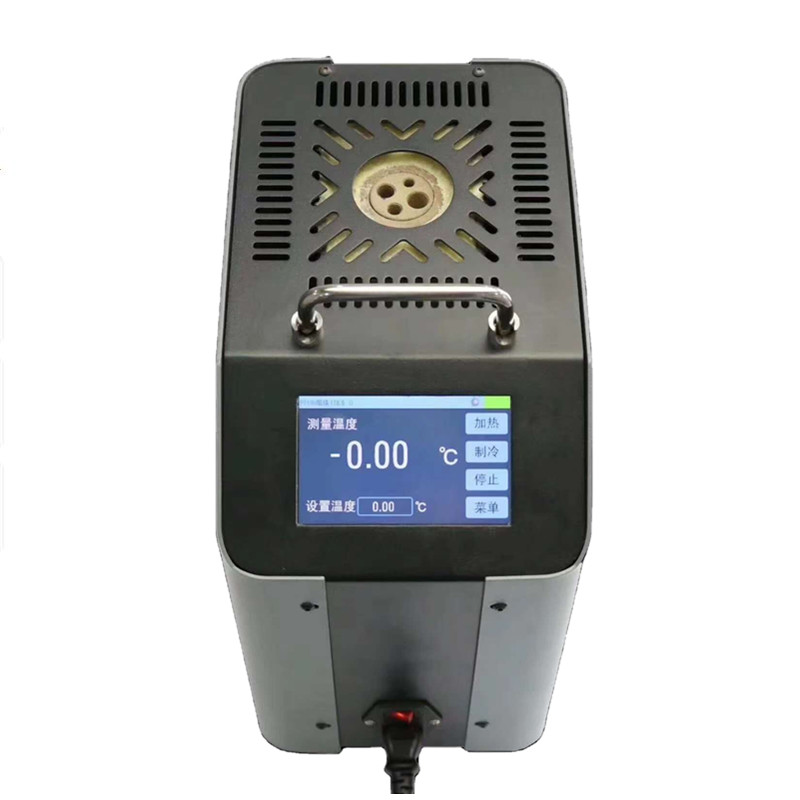

    Detaild picture of 1200 Celsius Touch Screen Dry well furnace Dry Block Temperature Calibrator
