150Psi 4 - 20Ma Smart Water Pressure Sensor Oil Atmospheric Vacuum Smart Air Sensor

Ask Lasest Price
Brand Name :	Yiyun
Model Number :	YD31
Certification :	CE/3C/ISO
Price :	15-18USD/Unit
Payment Terms :	T/T, Western Union, MoneyGram
Supply Ability :	20000unit/week
Delivery Time :	5-8 days

Add to Cart

Product Details
Company Profile

150Psi 4 - 20Ma Smart Water Pressure Sensor Oil Atmospheric Vacuum Smart Air Sensor

Measure Range	-100kPa~0.....10kPa...100MPa
Pressure Type	gauge (G), absolute (A), sealed gauge (S)
Overpressure	150%FS
Accuracy	0.2%FS, 0.5%FS
Output signal	4-20mA(2-wire), 0-5V;1-5V;0.5-4.5V;0-10V(3-wire)
Supply	12-36Vdc,12~36Vdc;15~30Vdc;15~36Vdc;15~36Vdc;5Vdc
Temp.coefficient of zero	±0.02%FS/°C(typ.) ±0.03%FS/°C(max.)
Temp.coefficient of span	±0.02%FS/°C(typ.) ±0.03%FS/°C(max.)
Compensated temperature range	-10~+70°C
Operating temperature range	-40~+125°C
Storage temperature range	-40~+125°C
Insulating resistance	≥100MΩ@100Vdc
Load resistance	R≤(U-15)/0.02 (for 4/20mA) R>100kΩ(for voltage output)
Electrical interface	DIN43650, option 1.5m cable connetion

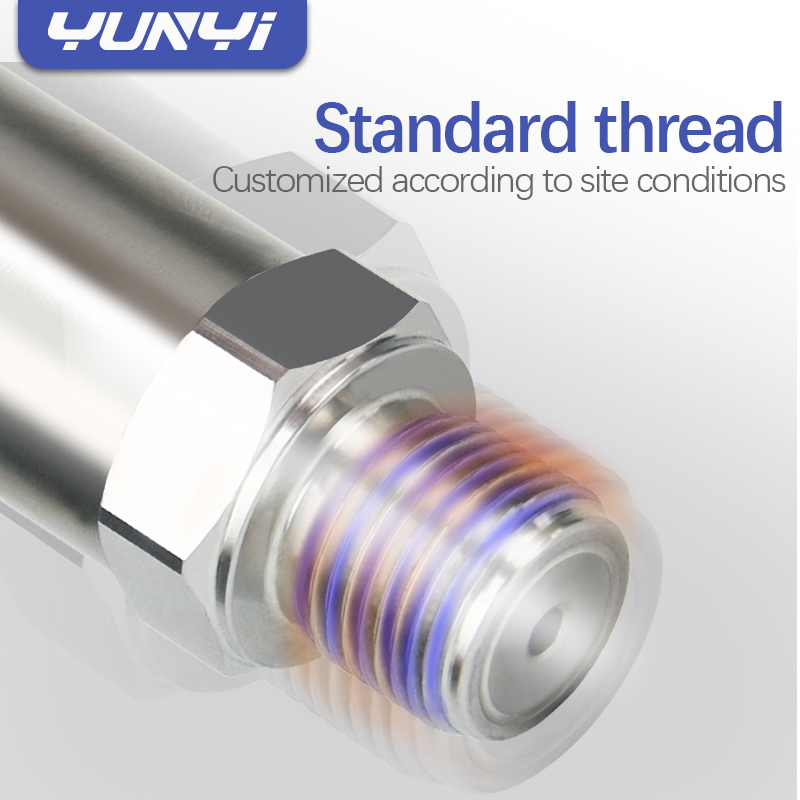

Pressure interface	G1/2,M20x1.5,G1/4, 1/4NPT, 1/2NPT(customer request)
Material of pressure membrane	316L stainless steel
Material of housing	1Cr18Ni9Ti stainless steel
Response time(10%~90%)	≤10ms
Shock/impact	10gRMS,(20~2000)Hz/100g,11ms
Protection	IP65

150Psi 4 - 20Ma Smart Water Pressure Sensor Oil Atmospheric Vacuum Smart Air Sensor

Absolute gauge smart pressure transmitter is standard and most popular transmitter applied in air and liquid pressure measuring. A
high sensitivity silicon pressure chip is employed in the sensor.

Through the high reliability of amplifying circuit and precise temperature compensation, and perfect assembly process to ensure
the quality and performance of the product.This pressure transmitter is designed for industry application with perfect long term
stability.

Specificaiton

Measure Range	-100kPa~0.....10kPa...100MPa
Pressure Type	gauge (G), absolute (A), sealed gauge (S)
Overpressure	150%FS
Accuracy	0.2%FS, 0.5%FS
Output signal	4-20mA(2-wire), 0-5V;1-5V;0.5-4.5V;0-10V(3-wire)
Supply	12-36Vdc,12~36Vdc;15~30Vdc;15~36Vdc;15~36Vdc;5Vdc
Temp.coefficient of zero	±0.02%FS/°C(typ.) ±0.03%FS/°C(max.)
Temp.coefficient of span	±0.02%FS/°C(typ.) ±0.03%FS/°C(max.)
Compensated temperature range	-10~+70°C
Operating temperature range	-40~+125°C
Storage temperature range	-40~+125°C
Insulating resistance	≥100MΩ@100Vdc
Load resistance	R≤(U-15)/0.02 (for 4/20mA) R>100kΩ(for voltage output)
Electrical interface	DIN43650, option 1.5m cable connetion
Pressure interface	G1/2,M20x1.5,G1/4, 1/4NPT, 1/2NPT(customer request)
Material of pressure membrane	316L stainless steel
Material of housing	1Cr18Ni9Ti stainless steel
Response time(10%~90%)	≤10ms
Shock/impact	10gRMS,(20~2000)Hz/100g,11ms
Protection	IP65

Model YD31
	Pressure Range (0-X)KPa or MPa: -100kPa~0.....10kPa...100MPa
		Pressure type G Gauge D Differential A Absolute
			Output signal E 4-20mA F 0-5Vdc J 1-5Vdc K 0-10Vdc V 1-10Vdc
				Power Supply A1 10~36VDC
					Electrical Interface B1 Hirschman connector B2 Directly cable connection B3 Pin aviation connector
						Display D1 No display D2 LED display
							Pressure Interface C1 1/2NPTM C2 1/4NPTM C3 M20x1.5M C4 G1/2M C5 G1/4M Cx other customized
