High Quality Air Sensor Oil Atmospheric Smart Vacuum 150Psi 4 - 20Ma Water Pressure Transmitter Sensor

Product Description

Absolute gauge smart pressure transmitter is standard and most popular transmitter applied in air and liquid pressure measuring. A
high sensitivity silicon pressure chip is employed in the sensor.

Through the high reliability of amplifying circuit and precise temperature compensation, and perfect assembly process to ensure
the quality and performance of the product.This pressure transmitter is designed for industry application with perfect long term
stability.

Specification

Measure Range	-100kPa~0.....10kPa...100MPa
Pressure Type	gauge (G), absolute (A), sealed gauge (S)
Overpressure	150%FS
Accuracy	0.2%FS, 0.5%FS
Output signal	4-20mA(2-wire), 0-5V;1-5V;0.5-4.5V;0-10V(3-wire)
Supply	12-36Vdc,12~36Vdc;15~30Vdc;15~36Vdc;15~36Vdc;5Vdc
Temp.coefficient of zero	±0.02%FS/°C(typ.) ±0.03%FS/°C(max.)
Temp.coefficient of span	±0.02%FS/°C(typ.) ±0.03%FS/°C(max.)
Compensated temperature range	-10~+70°C
Operating temperature range	-40~+125°C
Storage temperature range	-40~+125°C
Insulating resistance	≥100MΩ@100Vdc
Load resistance	R≤(U-15)/0.02 (for 4/20mA) R>100kΩ(for voltage output)
Electrical interface	DIN43650, option 1.5m cable connetion
Pressure interface	G1/2,M20x1.5,G1/4, 1/4NPT, 1/2NPT(customer request)
Material of pressure membrane	316L stainless steel
Material of housing	1Cr18Ni9Ti stainless steel
Response time(10%~90%)	≤10ms
Shock/impact	10gRMS,(20~2000)Hz/100g,11ms

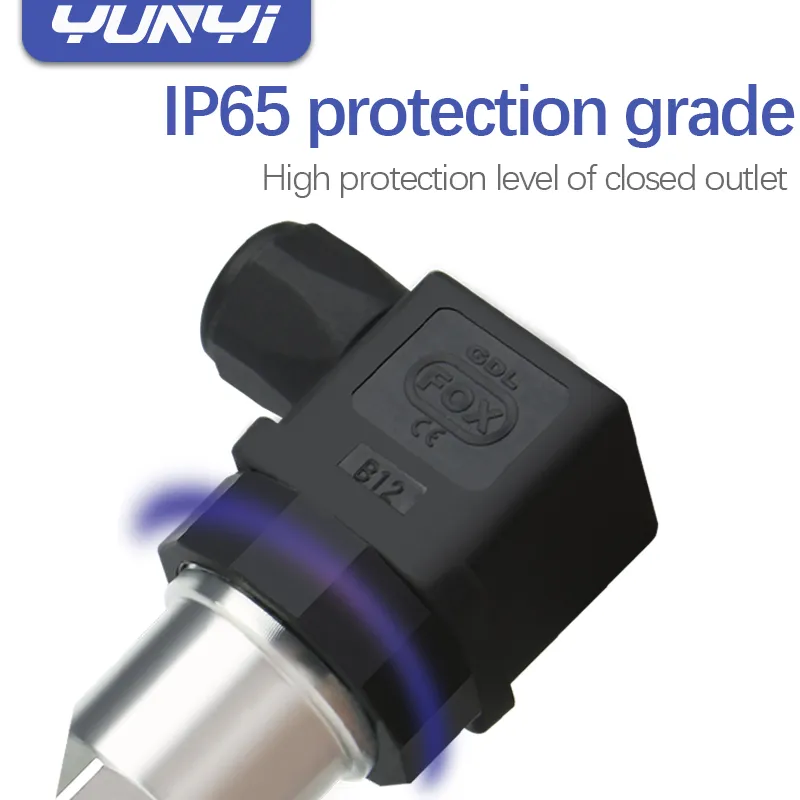

Protection	IP65

Selection Guide

Model YD31
	Pressure Range (0-X)KPa or MPa: -100kPa~0.....10kPa...100MPa
		Pressure type G Gauge D Differential A Absolute
			Output signal E 4-20mA F 0-5Vdc J 1-5Vdc K 0-10Vdc V 1-10Vdc
				Power Supply A1 10~36VDC
					Electrical Interface B1 Hirschman connector B2 Directly cable connection B3 Pin aviation connector
						Display D1 No display D2 LED display
							Pressure Interface C1 1/2NPTM C2 1/4NPTM C3 M20x1.5M C4 G1/2M C5 G1/4M Cx other customized

Electrical connection

Certifications

Why choose us
