Ceramic Smart Water Pressure Sensor

Ask Lasest Price
Brand Name :	Yunyi
Model Number :	YD-35
Certification :	CE
Payment Terms :	T/T, Western Union
Supply Ability :	500pcs per week
Delivery Time :	5-8 work days

Add to Cart

Product Details
Company Profile

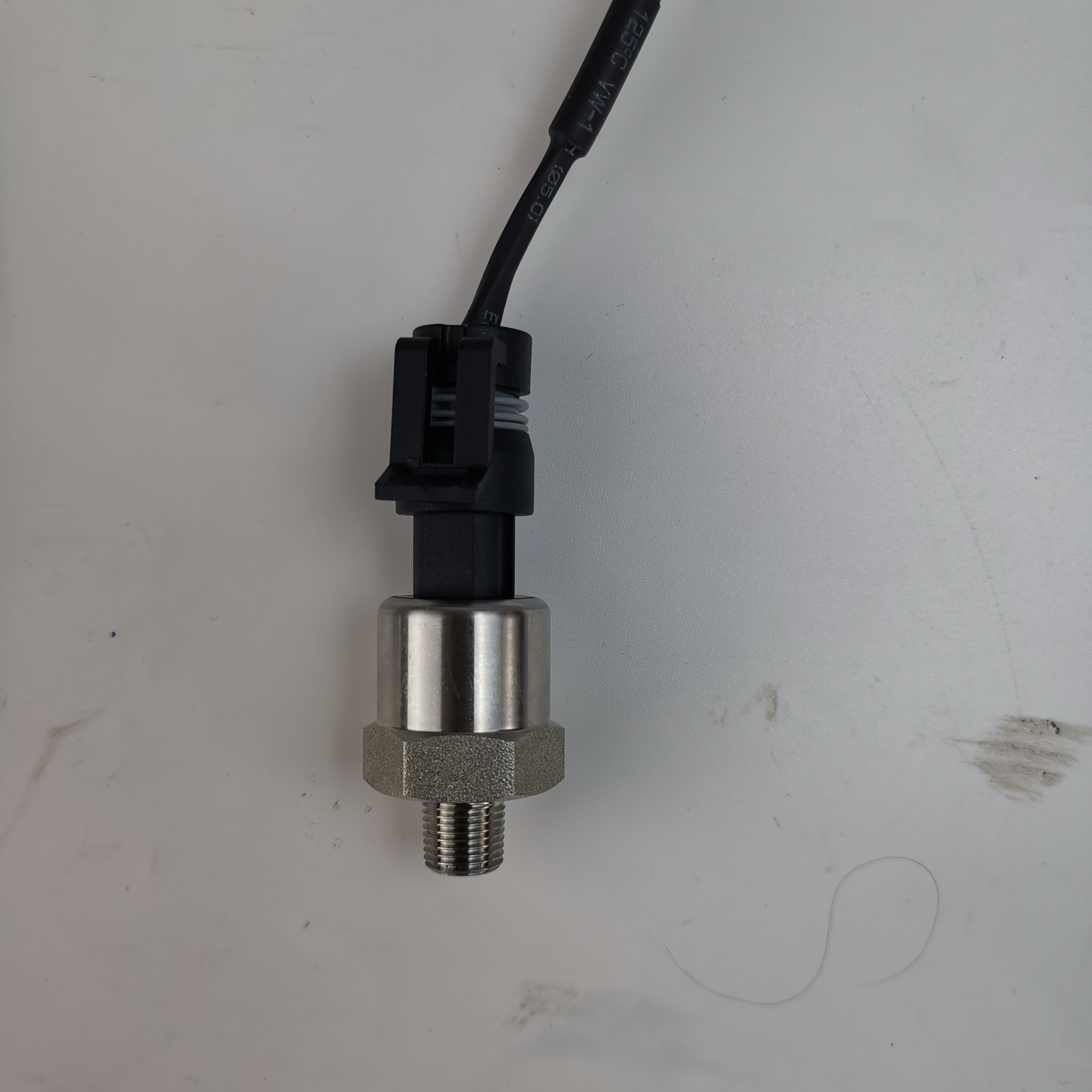

Ceramic Smart Water Pressure Sensor

Low Cost Pump Tank Pipe Purifiers Smart Water Pressure Sensor Price 5V

Description Low Cost Pump Tank Pipe Purifiers Smart Water Pressure Sensor Price 5V

smart water pressure sensor is a commonly used pressure sensor in industrial practice. It is widely used in various industrial dynamic environments, water conservancy and hydropower engineering, transportation and construction equipment, production automatic control systems, aerospace technology, ship technology, transportation pipelines and other areas.

Parameter Low Cost Pump Tank Pipe Purifiers Smart Water Pressure Sensor Price 5V

RANGE:	0-5psi~15psi~30psi~60psi~80psi~100psi~150psi~200psi~300psi~500psi~1000psi~1600psi~2500psi~3000psi~4000psi
OUTPUT:	0.5~4.5Vdc
POWER:	5Vdc
ACCURACY:	0.5%FS~1%FS
MOUNTING THREAD:	NPT1/8
MATERIAL:	304 stainless steel
TEMPERATURE RANGE:	-40~125℃
PACKAGING:	Anti-electrostatic packaging
PROTECTING:	Reverse polarity protection, overcurrent protection,overvoltage protection,anti-interference design

Ordering Information Low Cost Pump Tank Pipe Purifiers Smart Water Pressure Sensor Price 5V

Model	YD35
	Range	K:0~X kPa P: PSI, K: kPa, B: bar, M:MPa, m: mH2O
		Accuracy	1: 1%FS; 2: 0.5%FS; 3: 0.25%FS;
			Output	M:mV, V1:0.5-4.5V; V2:0-5V; V3:0-10V; A:4-20mA; S:RS485 S0:others
				Power	P1:5VDC, P2:12-32VDC P0: other
					Connection	N1: NPT1/8; N2: NPT1/4; NPT1/2; G1:G1/8 ; G2:G1/4; G3:G1/2; M0:other

						Wiring	W1:Cable, W2:Horsman W3:Pakard W4:M12
							Temperature	T1: -20~125℃; T0:other
YD35	10b	2	A	P2	M1	W2	T1		Factory code

Features Low Cost Pump Tank Pipe Purifiers Smart Water Pressure Sensor Price 5V
Compact,rugged design,light weight
Low-cost,high- quality
Large temperature high accuracy
Over voltage,short circuit,anti-reverse protection
Water proof and dustproof electrical connectors

Applications Low Cost Pump Tank Pipe Purifiers Smart Water Pressure Sensor Price 5V
Air compressor,sprayer,water pump controller,water heaters,water supply system,hydraulic system
