    Fast Heating Well Bath High Temperature Calibration On Site

    Ask Lasest Price
    Brand Name : yunyi
    Model Number : W series
    Price : $1200/pcs
    Payment Terms : L/C, T/T, Western Union
    Delivery Time : 5-8days
    • Product Details
    • Company Profile

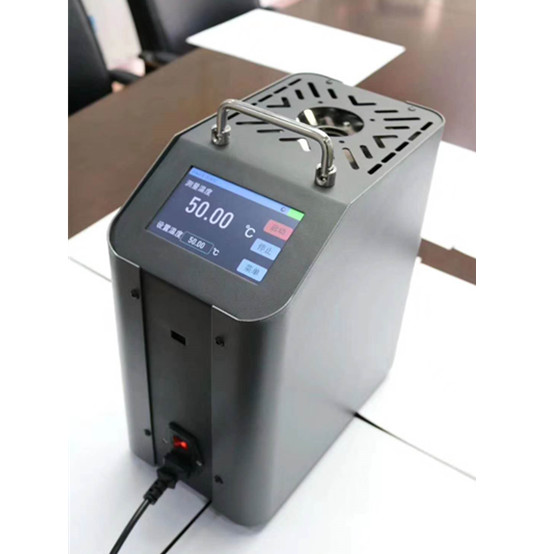

    Fast Heating Well Bath High Temperature Calibration On Site

    Description High temperature well bath dry block temperature calibrator

    The On-site temperature calibration furnace is based on the requirements of the user on-site verification of the development of a new product, the use of high stability temperature control device, are thermal block with better thermal conductivity of the alloy material. Technically synchronized with advanced technologies both at home and abroad, it is at the leading level in technology such as depth of penetration, horizontal temperature field and vertical temperature field. Used in the required temperature range, it is easy to set and produce the desired temperature. Its small size, fast heating, stable temperature control, non-polluting and other characteristics, the temperature sensor and the instrument for the overall verification, it is very suitable for industrial use site


    Specification High temperature well bath dry block temperature calibrator

    modelW150W600W1000/1200
    Temp. range–20~150℃50~650℃300~1000℃/1200
    Heat sourceSemiconductor refrigerationelectro-thermalelectro-thermal
    Accuracy0.20.20.2
    Stability±0.04℃±0.1℃±0.1℃
    Resolution0.1℃0.1℃0.1℃
    Horizontal temperature field≤±0.25℃≤±0.1℃≤±0.3℃
    Vertical temperature fieldFrom the bottom of the well 30mm≤0.5℃From the bottom of the well30mm≤0.5℃From the bottom of the well 30mm≤±0.5℃
    Well depth160-200mm160-200mm160-200mm
    wellhead size40mm40mm40mm
    Hole sizeφ9×6φ9×4φ9×6
    Box size390x185x320mm330x165x320mm378x182x320mm
    power300W300W300W
    power supply220V50Hz220V50Hz220V50Hz
    weight10Kg10Kg10Kg

    Fast Heating Well Bath High Temperature Calibration On SiteFast Heating Well Bath High Temperature Calibration On Site
