High pressure regulator water 6000 psi Back Pressure Regulator Pressure reducing valve

Description
YR31 Series stainless steel pressure regulator adopts piston type decompression structure, outlet pressure is stable, mainly used for high inlet pressure requirements, suitable forhigh purity gas, standard gas, corrosive gas, and other gas.

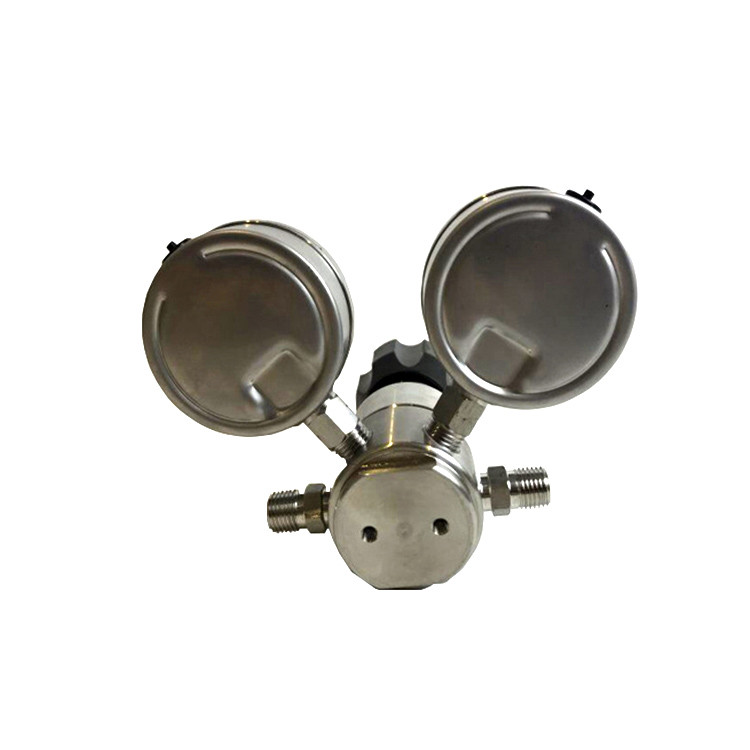

Detailed Image

Specification
Max inlet pressure: 3000psi, 6000psig,10000psi
Outlet pressure: 0-250psig, 0-500psig, 0-1500psig, 0-3000psig. 0-6000psi
Safety testing pressure: 1.5 times of maximum inlet pressure
Working temperature: -23℃~ 74℃(-10°F ~ 165°F)
Leakage rate: 2*10-8 atm cc/sec He
CV value: 0.02, 0.06, 0.08, 0.2
Weight: About 1.5kg

Features
Double stage decompression structure
Valve body and diaphragm adopt hard seal form
The internal structure is easy to clean
Inside is equipped with filter
Can be panel mounted
Can choose needle valve, diaphragm valve for outlet
