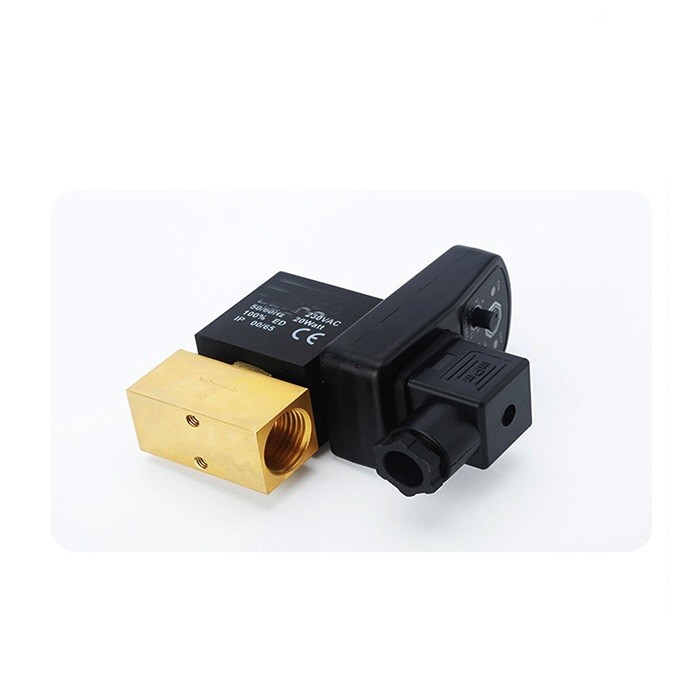

High Medium Pressure Switch Water Draingage Bothway Solenoid Valve For RO

High Pressure switch medium Pressure Water Draingage bothway Solenoid Valve for RO Water Purification System

Description
The solenoid valve is a two-position two-way solenoid valve that is normally closed. The valve uses the electromagnetic force generated by the coil to drive the spool to move, thereby blocking or circulating the medium in the pipeline, and achieves the purpose of automatically discharging the compressed air condensate water at regular intervals. Mainly used for compressed air system components such as filters, separators, dryers, air storage tanks, and dripping feet. Discharge time and interval can be adjusted according to different needs


High Medium Pressure Switch Water Draingage Bothway Solenoid Valve For RO

Specification

medium: water
Medium temperature: -20~80°C
Work pressure: 0~16bar
Aperture (mm): 3.0
Intervals: 0.5~45min
Discharge time: 0.5~10sec
Joint form: G1/2” (can be changed to 3/8” or 1/4”)

Application

Before installation, remove dirt, copper filings, rust, etc. from the compressed air system. It is recommended to install the electronic drain valve after the full pressure drop system is emptied for 1 minute;

The solenoid valve should be installed vertically on the horizontal pipeline, the flow direction of the medium must be consistent with the arrow direction pointed by the solenoid valve, and the water outlet should not use a hose that is not resistant to airflow;

The input voltage of the coil must be consistent with the voltage indicated on the coil, and it is never allowed to remove the solenoid from the valve when it is energized to prevent the coil from being burned;

When using direct current, the positive pole must be connected to connector "1".
