smart digital PNP relay pressure sensor controller differential
pressure switch sensor price
Description
smart digital differential pressure switch sensor is a pressure
measurement, display, intelligent digital pressure measurement and
control products output, integrated control. This product is a full
electronic structure, use front-end with baffle filled hydraulic
resistance type pressure sensor, the output signal is composed of
high precision, low drift amplifier processing, into the high
precision A/D converter, the digital signals into the
microprocessor can processing, through processing the signal
control switch, monitoring and control of the pressure control
system. Digital Air Pressure Switch is flexible to use, simple
operation, easy debugging, safe and reliable. Widely used in
hydropower, tap water, petroleum, chemical, mechanical, hydraulic
and other industries, the fluid medium pressure measurement display
and control.

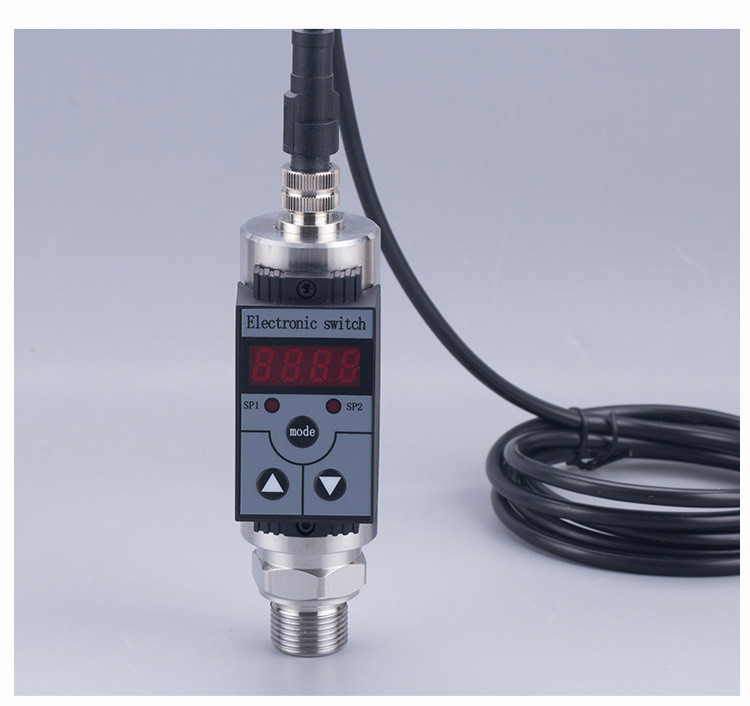

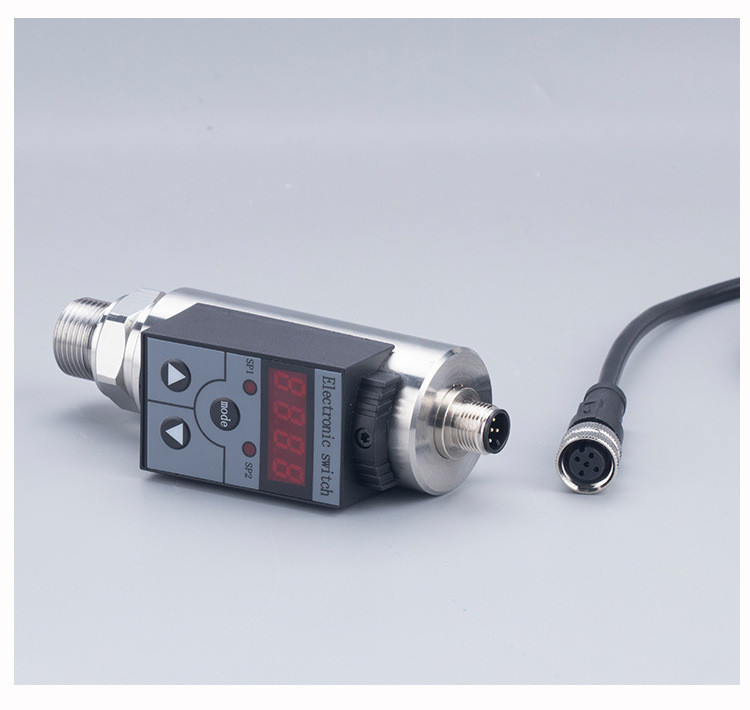

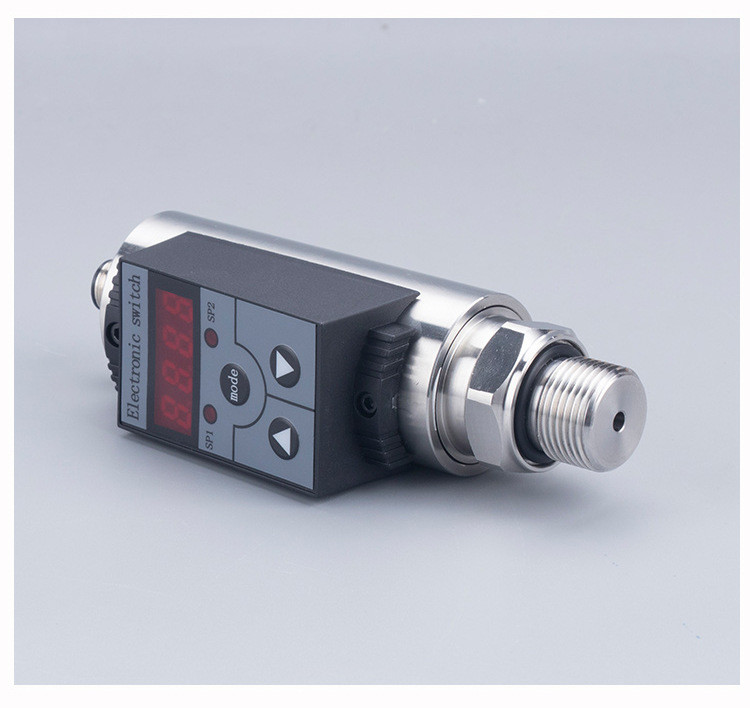

Detail image
Specification
Control range:-0.1~0~100Mpa
Stability:≤ 0.2% / year
Display:4-digit LED display
Power supply range:24V ± 20%
Load capacity:<24V1.2A
Protection class:IP65
Ambient temperature:-30 ℃ ~ 70 ℃
Storage temperature:-40 ℃ ~ 85 ℃
Control accuracy:≤ ± 0.5% FS
Display accuracy:0 to 80%
The display range:-1999 to 9999
Maximum power consumption <3W
Relative humidity:± 0.1% FS
Feature
1.4-digit display of the current pressure value.
2.Pressure preset switch point and delay switching output
3.The switch quantity can be arbitrarily set from zero to full
scale
4.The shell is equipped with node action light-emitting diode, easy
to observe
5.button adjustment and on-site settings of various parameters,
easy to operate.
6.2-way switch output, with a load capacity of 1.2A
7.Analog output (4 ~ 20mA) |
Application
Digital Air Pressure Switch is flexible to use, simple operation,
easy debugging, safe and reliable. Widely used in hydropower, tap
water, petroleum, chemical, mechanical, hydraulic and other
industries, the fluid medium pressure measurement display and
control.
Selection
1. what's measurement range do you need?
2. what's thread connection type do you need?
3. what's electrical connection type do you need?
4. Do you need the sensor is with NPN or PNP?
