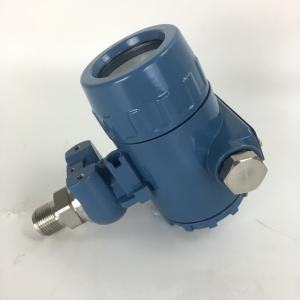

Smart 15VDC 100mpa Air Liquid Pressure Sensor With Display

Ask Lasest Price
Brand Name :	Yunyi
Model Number :	2088
Certification :	CE
Price :
Payment Terms :	L/C, D/A, D/P, T/T, Western Union
Supply Ability :	300PCS/week
Delivery Time :	7days

Add to Cart

Product Details
Company Profile

Smart 15VDC 100mpa Air Liquid Pressure Sensor With Display

100mpa High Pressure 2088 Pressure Transmitter Air Liquid Pressure Sensor With Display

Description 100mpa High Pressure 2088 Pressure Transmitter Air Liquid Pressure Sensor With Display

2088 Smart Water Pressure Sensor Pressure Transmitter Transducer can be calibrated to ranges as low as 0 to 1.5 psi (0.1 bar) and as high as 0 to 4000 psi (275.8 bar). 2088 can also be used to measure negative pressure ranges. The 2088 pressure transmitter measurement capabilities enable reliable use in almost any application.

Specification 100mpa High Pressure 2088 Pressure Transmitter Air Liquid Pressure Sensor With Display

Measurement Range	-0.1….0~0.01... ~100MPa
Proof pressure	≤1.5X rated pressure or 110MPa which ever is less
Pressure type	Gauge, absolute ,sealed gauge
Accuracy	±0.25%( Typical) ±0.5%( Max.)
Long term stability	±0.2%F.S/year
OperatingTemperatureRange	-20℃~80℃
Storage TemperatureRange	-40℃~120℃
Power supply	15~30VDC
Output signal	4~20mA 0~10/20mA 0/1~5VDC
Pressure port	M20×1.5 or customize
material	1Cr18Ni9Ti stainless steel
Diaphragm material	316L
O-ring	Fluororubber
Electrical housing	Cast aluminium alloy(2088housing)
Insulation resistance	100MΩ,100VDC
Protection	IP65

Application 100mpa High Pressure 2088 Pressure Transmitter Air Liquid Pressure Sensor With Display

Compatible with 316LSS,noncorrosive gases & liquids.
Special use in harsh environment conditions.

Selection table 100mpa High Pressure 2088 Pressure Transmitter Air Liquid Pressure Sensor With Display

Model 2088
	Pressure Range
	(0-X)KPa or MPa: -0.1. . .0~0.01...100MPa
		Pressure type
		G Gauge (-0.1…0 ~ 0.01…100MPa) D Differential (0 ~ 10KPa…2MPa) A Absolute (-0.1…0 ~ 0.01…100MPa)
			Output signal
			E 4-20mA F 0-5Vdc J 1-5Vdc
			K 0-10Vdc V 1-10Vdc
				Power Supply
				A1 10~36VDC
					Electrical Interface
					B1 2088 industry housing
					B2 2088 housing with LED
					B3 others
						Pressure Interface
						C1 1/2NPTM C2 1/4NPTM
						C3 M20x1.5M C4 G1/2M
						C5 G1/4M Cx other customized
