Smart Sensor Pressure Diffuse Silicon Pressure Transmitter Water Pressure Sensor
Description of Smart Water Pressure Sensor Diffuse Silicon Pressure
Transmitter
Smart Water Pressure Sensor Diffuse Silicon Pressure Transmitter
use HT series piezoresistive silicon oil-filled sensor as
measurement component. Sensor’s output transferred to standard
output signal via integrated amplify circuit. Have high reliability
&stability.
Smart Water Pressure Sensor Diffuse Silicon Pressure Transmitter
made of stainless steel and are very suitable for harsh industrial
environments. Smart Water Pressure Sensor Diffuse Silicon Pressure
Transmitter extremely high operating temperature, wide compensation
range and excellent temperature compensation allow users to obtain
stable readings in applications where the temperature changes
frequently and air pressure must be monitored. Available in
millivolt, voltage or current output models
Parameter of Smart Water Pressure Sensor Diffuse Silicon Pressure
Transmitter
Range: -0.1...0~0.02...100Mpa(0-100Kpa)
Output signal: 4-20mA, 1-5V, 0-10V, 0-20mA, 0-5V, RS485;
Compensation temperature: -10-70℃
Medium temperature: -40-125℃
Ambient temperature: -10-70℃
Pressure type: gauge pressure, absolute pressure, sealed pressure
Power supply: 24VDC
Comprehensive accuracy: 0.1, 0.3, 0.5 level optional
Overload pressure: 200%FS
Feature of Smart Water Pressure Sensor Diffuse Silicon Pressure
Transmitter
1. Multi-range, a variety of signal output options
2. Using imported diffused silicon core, the stability is 200%
higher than ordinary diffused silicon
3. Using 316L stainless steel isolation diaphragm, corrosion
resistance
4. Strong anti-interference, good long-term stability
5. With triple protection-reverse connection protection,
overvoltage protection, overcurrent protection
6. Adopting international standard anti-damping design, which can
resist 300% instantaneous impact
Application of Smart Water Pressure Sensor Diffuse Silicon Pressure
Transmitter
Smart Water Pressure Sensor Diffuse Silicon Pressure Transmitter is
widely used in the measurement and control of liquids and gases in
process control, aviation, aerospace, automotive, medical
equipment, HVAC and other industries.

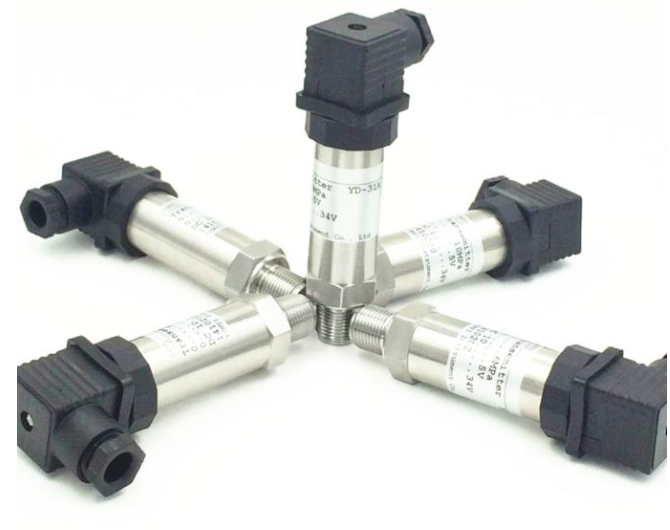

Detailed picture Smart Water Pressure Sensor Diffuse Silicon
Pressure Transmitter
