    Smart Water Pressure Sensor Transmitter With Absolute Hydraulic Gauge

    Ask Lasest Price
    Brand Name : YunYi
    Model Number : YD31
    Price : USD26.0 - USD45.0 PER PIECE
    Payment Terms : T/T, Western Union, D/A, D/P
    Supply Ability : 500 Piece/Pieces per Month pressure measuring instrument pressure transmitter
    Delivery Time : 7days
    • Product Details
    • Company Profile

    Smart Water Pressure Sensor Transmitter With Absolute Hydraulic Gauge


    Description absolute hydraulic gauge smart water pressure transmitter sensor


    Absolute gauge smart pressure transmitter is standard and most popular transmitter applied in air and liquid pressure measuring. A high sensitivity silicon pressure chip is employed in the sensor. Through the high reliability of amplifying circuit and precise temperature compensation, and perfect assembly process to ensure the quality and performance of the product.This pressure transmitter is designed for industry application with perfect long term stability.

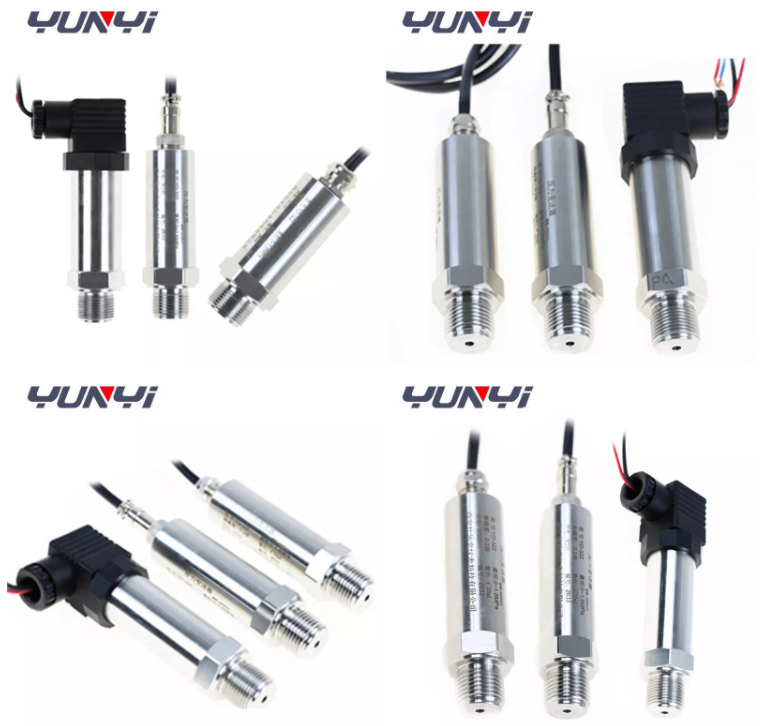

    Detailed Images absolute hydraulic gauge smart water pressure transmitter sensor




    Specification absolute hydraulic gauge smart water pressure transmitter sensor

    Measure Range-100kPa~0.....10kPa...100MPa
    Pressure Typegauge (G), absolute (A), sealed gauge (S)
    Overpressure150%FS
    Accuracy0.2%FS, 0.5%FS
    Output signal4-20mA(2-wire), 0-5V;1-5V;0.5-4.5V;0-10V(3-wire)
    Supply12-36Vdc,12~36Vdc;15~30Vdc;15~36Vdc;15~36Vdc;5Vdc
    Temp.coefficient of zero±0.02%FS/°C(typ.) ±0.03%FS/°C(max.)
    Temp.coefficient of span±0.02%FS/°C(typ.) ±0.03%FS/°C(max.)
    Compensated temperature range-10~+70°C
    Operating temperature range-40~+125°C
    Storage temperature range-40~+125°C
    Insulating resistance≥100MΩ@100Vdc
    Load resistanceR≤(U-15)/0.02 (for 4/20mA) R>100kΩ(for voltage output)
    Electrical interfaceDIN43650, option 1.5m cable connetion
    Pressure interfaceG1/2,M20x1.5,G1/4, 1/4NPT, 1/2NPT(customer request)
    Material of pressure membrane316L stainless steel
    Material of housing1Cr18Ni9Ti stainless steel
    Response time(10%~90%)≤10ms
    Shock/impact10gRMS,(20~2000)Hz/100g,11ms
    ProtectionIP65

    Features absolute hydraulic gauge smart water pressure transmitter sensor


    Piezoresistive pressure sensor

    Pressure range: -100kPa~0...0~10kPa...100MPa

    Gas or dilute liquid compatible with 316LSS

    High reliability and stability

    Output signal optional

    Connection mode of connector or lead direct

    Can add adjustable zero and full function as customer’s request

    A variety optional of pressure interface


    Applications absolute hydraulic gauge smart water pressure transmitter sensor


    Absolute gauge smart pressure transmitter is widely used in a variety of industrial automation environment, involving water conservancy and hydropower, railway transportation, intelligent building, production control, aerospace, military, petrochemical, oil wells, electricity, ships, machine tools, pipes and many other industries.


    Select Gaide Applications absolute hydraulic gauge smart water pressure transmitter sensor
