Micro Smart Differential Pressure Transducer Sensor For Clean Air Flow

Description Smart Micro Differential Pressure Transmitter

FM108 differential pressure transmitter detect differential pressure or gauge pressure then convert this pressure difference to a proportional analogue output signal. Two output version are offered: Voltage output of 0~10VDC, and a current output 4-20mA. FM108 differential pressure transmitter ranges from 0~±50Pa to 0~±10000Pa. These transmitters boast of their outstanding performance,high quality and economical pricing.

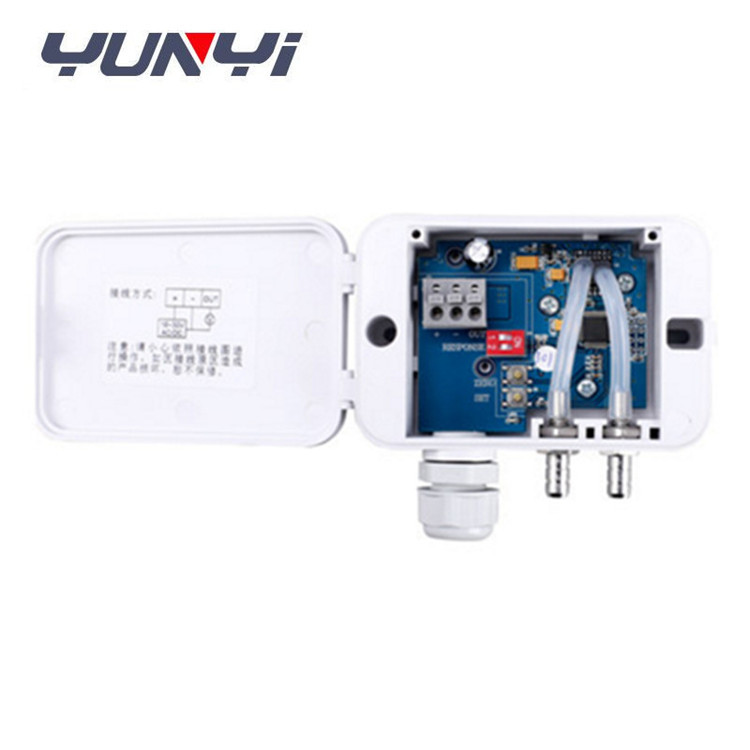

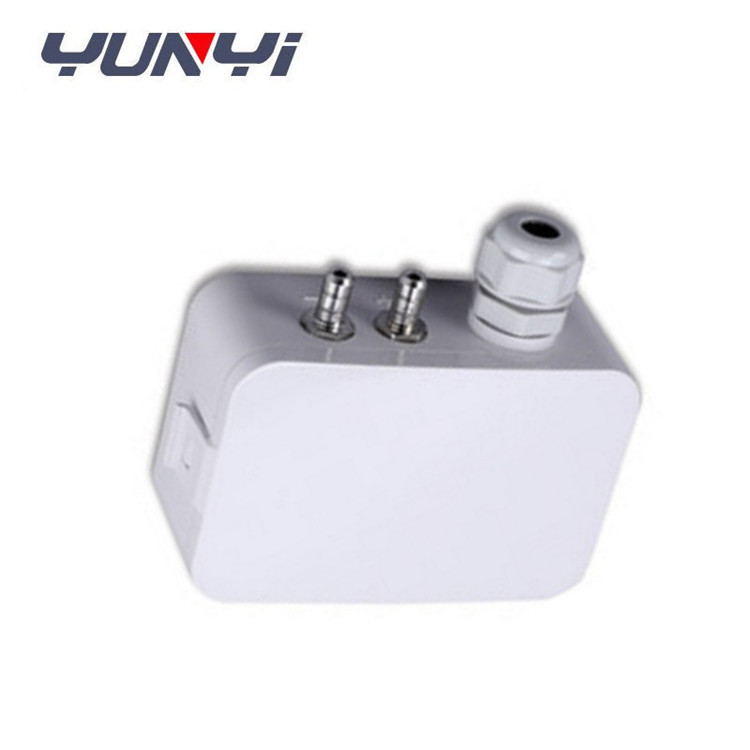

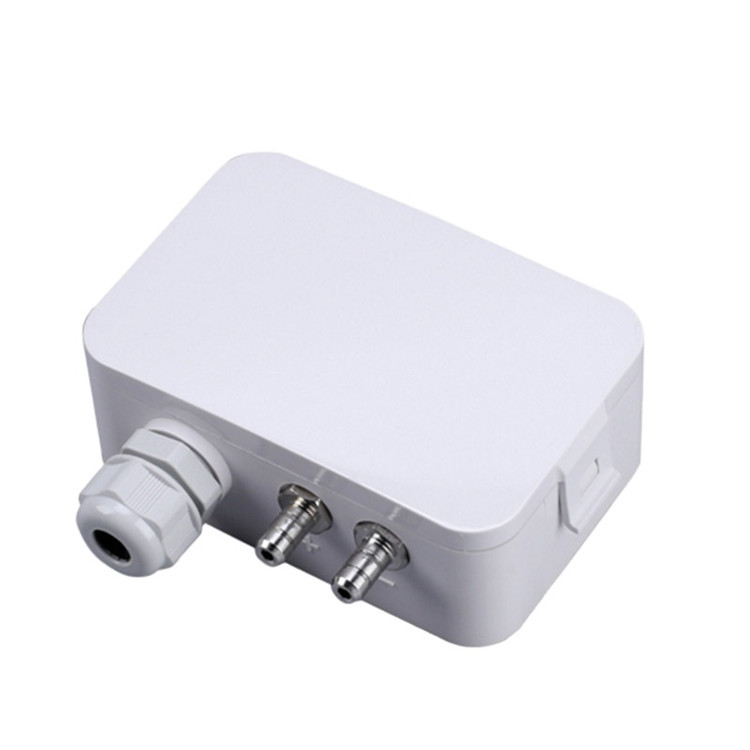

Detailed Images Smart Micro Differential Pressure Transmitter

Micro Smart Differential Pressure Transducer Sensor For Clean Air Flow

Specification Smart Micro Differential Pressure Transmitter

Accuracy: ±1.0%FS
Compensated temperatures: -10~+60℃
Zero/Full range:deviation %FS/℃±0.01
Over pressure capacity: ×15
Output signal :0~5/10VDC3-wire 4~20mA2-wire
Supply voltage: 0~5/10VDC16~30VDC 4~20mA10~30VDC
Ambient temperature: -10~60℃

Dimension Smart Micro Differential Pressure Transmitter

Applications Smart Micro Differential Pressure Transmitter

Heating, Ventilation and Air Conditioning (HVAC)
Energy Management System
Static Duct Pressure
Clean Room Pressure
Over Pressurization and Furnace Draft ControlMedia:Air and neutral gases.
