Descroption of Protocol remote seal smart water differential
pressure transmitter sensor with hart
UC800 Project Special Pressure Transmitter is the result of a
combination of self-developed anti-jamming, high stability digital
circuits and the introduction of foreign Single crystal resonant
silicon sensor technology. Its performance much better than our
domestic metal capacitive sensor technology transmitter, and main
show in the field zero stability and long-term operation stability,
and rapid response.
Specification of Protocol remote seal smart water differential pressure
transmitter sensor with hart
Range digital smart differential pressure transmitter
| Range code | Range | Measuring range
|
| Min. | Max. |
| 4 | 0.374KPa | 37.4KPa | -37.4KPa to 37.4KPa |
| 5 | 1.868KPa | 186.8KPa | -186.8KPa to 186.8KPa |
| 6 | 6.9KPa | 690KPa | -690KPa to 690KPa |
| 7 | 20.68KPa | 2068KPa | -2068KPa to 2068KPa |
Technical Data smart differential pressure transmitter
| Output |
Two-wire analog output 4-20mA DC
|
Two-wire digital output 4-20mA DC
|
| Power supply | 24V DC |
| Limit load | Max. resistor Rmax loop decided by the sipply voltage see the below
drawing HART protocol require the load resistor not less than 250Ω
not more than 600Ω |
| Cimmunication distance | Max.1.5km multi communication can connect 15 smart transmitter Max. |
| Display | 4 Digital display 5 digit LCD display Pointer type |
| Explosion-proof grade | ExiallCT5 Explosion Suppression type |
| Zero offset | Can positive transfer ot negative transfer but can not overstep
utmost value |
| Temperature | Ambient temperature -40℃ to 85℃(when choose LCD -20℃ to 70℃) |
| Medium Temperature | -40℃ to 104℃ |
| Static pressure and single side overpressure | 3.45KPa(absolute pressure) to 31.2MPa(gauge pressure) |
| Relative humidity | 5-98% R.H |
| Run-up time | Less than 5 senonds |
| Capability change | Less than 0.16cm³ |
| Damp adjust | 0.20-25 seconds |
| Malfunction alarm | If occur mulfunction automatism diagnose function will output 3.9
or 21.0mA |
| Configuration protection | To avoid the datas are modified random,can utlize sofrware or
protect switch lock the record data |
Features of Protocol remote seal smart water differential pressure
transmitter sensor with hart
Single crystal resonant silicon sensor technology
Super performance, use to measure pressure, differential pressure
and temperature..
Accuracy: ±0.075%~±0.1%F.S/±0.2%F.S
Stability: ≤0.2%
Standard 4~20mA,RS-485 communication interface
Support upgrade of basic scene control technique
Little temperature effect
Little static effect
Overload can reach 2 times
Application of Protocol remote seal smart water differential pressure
transmitter sensor with hart
Compatible with 316LSS,noncorrosive liquids.
Shipping and aviation industry.
Hydraulic pressure and pneumatic control system
Apply in Petroleum industry, chemical industry, electric power,
metallurgy, hydrology etc process control.

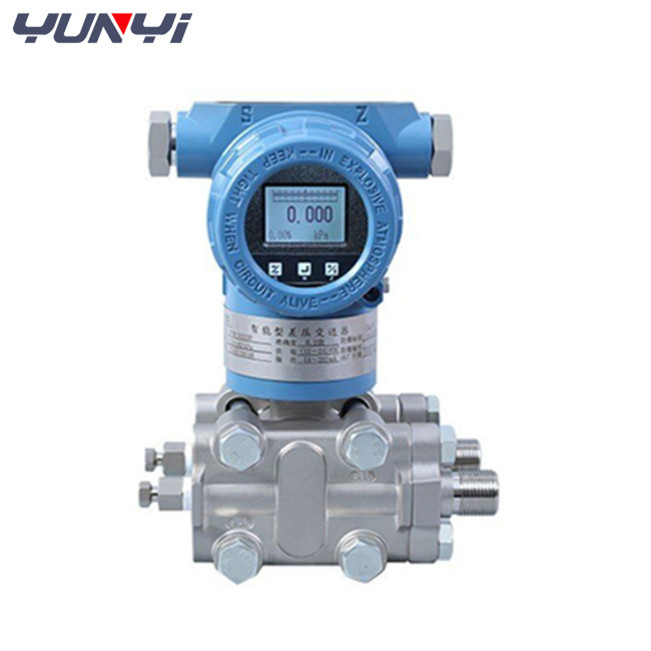

Detailed imanges of Protocol remote seal smart water differential pressure
transmitter sensor with hart
