Medical Micro Dry Das Differential Air Pressure Sensor

Ask Lasest Price
Brand Name :	Yunyi
Model Number :	YD19
Certification :	CE
Price :	40-80usd
Payment Terms :	D/A, L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability :	500/month
Delivery Time :	5-7 days

Add to Cart

Product Details
Company Profile

Medical Micro Dry Das Differential Air Pressure Sensor

Micro Air Differential Pressure Transmitter Hvac Differential Pressure Transmitter

Description of Micro Air Differential Pressure Transmitter Hvac Differential Pressure Transmitter

Micro differential pressure transmitter is suitable for differential pressure measurement of dry gas. this air differetnial pressure transmitter the responsibility of the operator to verify that the hvac differential pressure transmitter is suitable for the operating conditions of the application. This micro differential pressure transmitter adopts piezoresistive pressure sensor chip, and uses the film resistance on the substrate to carry out zero point correction, zero point temperature compensation and sensitivity compensation.

Parameter of Micro Air Differential Pressure Transmitter Hvac Differential Pressure Transmitter

Range	-10000pa~10000pa
Accuracy	1.0% FS
Output signal	4-20mA, 0-10V, RS485
Supply voltage	12VDC~236VDC
Process connection	φ6
Material	ABS plastic
Protection	IP65
Application	Clean and dry air
Operating temperature	-20-80 ° C
Safety overload	150%
Ultimate Overload	200%
Temperature drift	0.02% FS / ° C
Long-term stability	0.2% FS / Year

Feature of Micro Air Differential Pressure Transmitter Hvac Differential Pressure Transmitter

a) Integrated chip, wide voltage power supply
b) Frequency intercept design, strong anti-interference ability and lightning protection
c) Current limiting, voltage limiting, reverse connection protection (current limiting output)
d) High precision and stability
e) Self correcting zero point

Application of Micro Air Differential Pressure Transmitter Hvac Differential Pressure Transmitter

Medical equipment
HVAC
Industrial control
Building automation

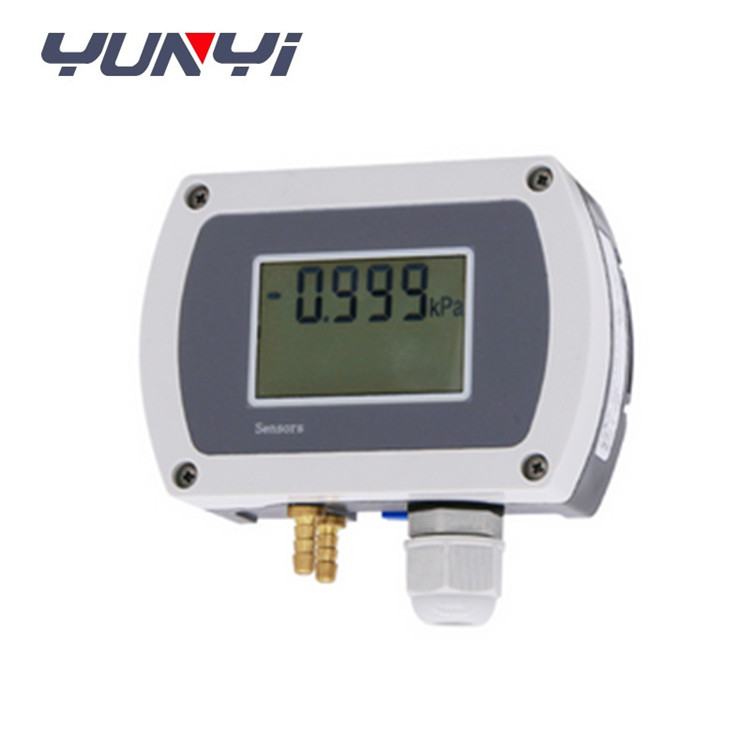

Detailed picture Micro Air Differential Pressure Transmitter Hvac Differential Pressure Transmitter
