Description of barometric pressure transmitter
Barometric pressure transmitter is for Clean Room Pressure, detect
differential pressure or gauge pressure then convert this pressure
difference to a proportional analogue output signal. Two output
version are offered: Voltage output of 0~10VDC, and a current
output 4-20mA. Its ranges from 0~±50Pa to 0~±10000Pa. These
transmitters boast of their outstanding performance,high quality
and economical pricing.

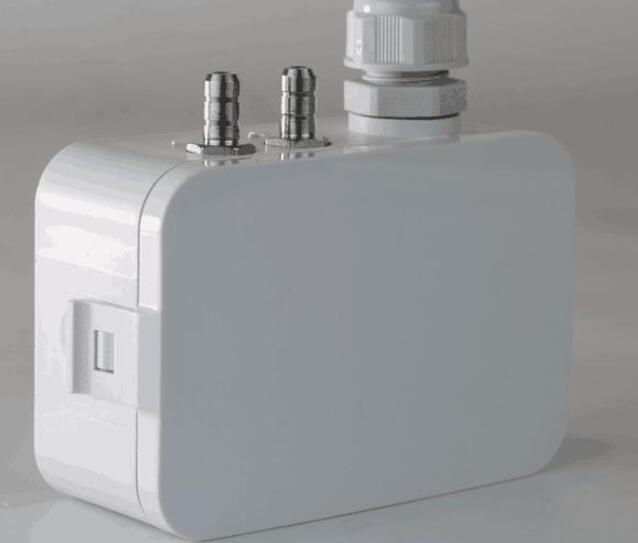

Detailed Images of barometric pressure transmitter
Specification of barometric pressure transmitter
| Accuracy | ±0.5% FS |
| Compensation temperature | -10ºC--+60ºC |
| Unit | Pa, mmH2O, mbar, inWG,mmHG, daPa, KPa, hPa |
| Power | 16 ~ 30 Vdc/Vac ( 2 wire ) 24Vdc adaptor power supply 220Vac |
| Outlet signal | 0~5VDC,0~10VDC,4~20mA both 2- wire and 3-wire available |
| Display | LCD backlit digital display or without display |
| Range | 0 ~ ±10Pa/0 ~ ±10,000Pa |
Features transmitter pressure transmitter pressure gauge barometric
pressure transmitter
Material: Industrial plastic,fire resistance, level per UL94-V0.
Pressure connection: Ribbed Ø 6.2 mm
Cable gland: For cables Ø 8 mm maximum
Weight: 140g
Applications barometric pressure transmitter
Heating, Ventilation and Air Conditioning (HVAC)
Energy Management System
Static Duct Pressure
Clean Room Pressure
Over Pressurization and Furnace Draft Control
Media:Air and neutral gases.
Selection barometric pressure transmitter
Company introduction.
Established in 2010,With 7 years of R&D and manufacturing
experience, YUNYI is capable of working out the most suitable
solution.Manufacture and trade integrated company,Combining our
professional industry.experience and our production capability,
more comprehensive products with competitive price and customized
services could be offered.R&D team + cooperation with
laboratories, colleges and universities,Keeping our capability of
technology innovation improved makes us available to meet various
technical challenges.
FAQ
Q: How long will you reply me?
A: We will contact you as soon as possible but within 12 hours.
Q: Can I get some samples?
A: Yes, Sample order is available for quality check and market
test. But you have to pay the express cost.
Q: How soon can you arrange your production?
A: Once getting your product confirmation and receiving the
prepayment, the production will be started immediately.
Q: What's delivery time?
A: It usually takes about 3-5 working days for small order and
10-15 days for big order.
Q: How do you control your quality ?
A: Three inspection steps(of original, production, and finished
goods) + good warranty service(1 year free to change a new one
without any human damage factors).
Q: What certificates do you have ?
A: ISO9000, CE, Explosion-proof certification, RoHs ready. And
before the delievry of goods, quality and safety inspection
certification issued by third parts also can be offered.
Q: Could I visit your factory?
A: Very welcome! Fly to Xian Yang air port. It was a big pleasure
for us.
Q: What's your warranty terms?
A: We offer 12 months warranty time.
Q: Can you provide OEM & Customized service?
A: Yes, OEM and ODM are both available, we have the professional
R&D dept which can provide professional solutions for you.
