    304 SST 36VDC Differential Pressure Transmitter For Industrial Water Treatment

    Ask Lasest Price
    Brand Name : YunYi
    Model Number : UC800A
    Payment Terms : T/T, Western Union
    Supply Ability : 1000 Piece/Pieces per Month 4-20ma pressure sensor transmitter
    Delivery Time : 10DAYS
    Price : USD229.0 PER PIECE
    • Product Details
    • Company Profile

    304 SST 36VDC Differential Pressure Transmitter For Industrial Water Treatment

    Description muanfactory 4-20ma pressure sensor transmitter


    UC800A pressure transmitter uses ceramic capacitors sensor as the signal measuring element. Signal processing circuit can convert sensor signal into standard output signal. All the products through components and semi-finished products test, finished products burn-in screening, are with stable and reliable performance. Have strong anti-interference performance, can working in harsh environment conditions for long term.

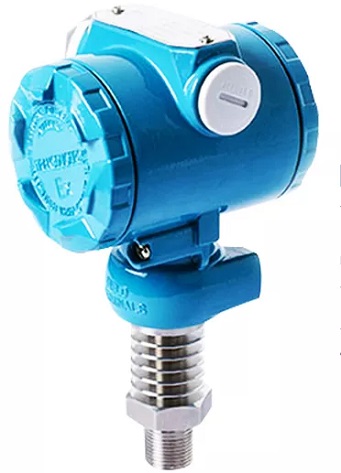

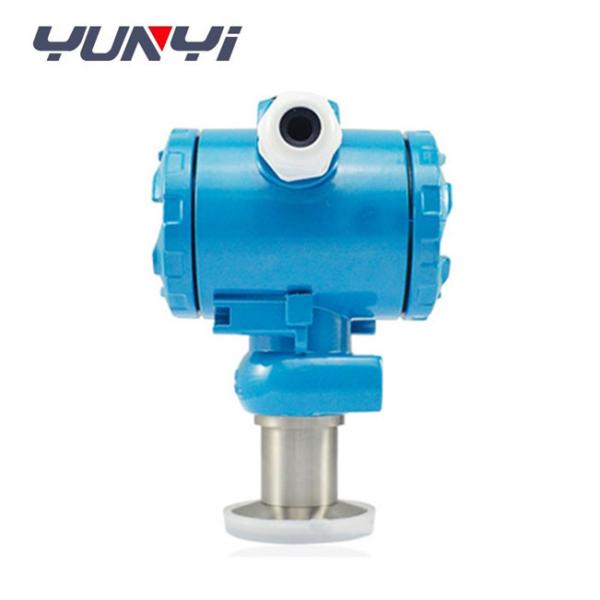

    Detailed Imaged muanfactory 4-20ma pressure sensor transmitter

    Feature muanfactory 4-20ma pressure sensor transmitter

    Wide range, cast aluminium & explosion-proof housing,
    various pressure port
    Various output signal, scene adjustable
    Multiple protect, strong anti-interference capability.
    Marking: ExiaIICT6



    Application muanfactory 4-20ma pressure sensor transmitter


    Compatible with 316LSS,noncorrosive gases & liquids.
    Special use in harsh environment conditions.


    Technical Data muanfactory 4-20ma pressure sensor transmitter


    Measurement Range-0.1….0~0.01...~100MPa
    Proof pressure≤1.5X rated pressure or 110MPa which ever is less
    Pressure typeGauge, absolute ,sealed gauge
    Accuracy±0.25%(Typical) ±0.5%(Max.) 0.1
    Long term stability±0.2%F.S/year
    OperatingTemperatureRange-20℃~80℃
    Storage TemperatureRange-40℃~120℃
    Power supply15~30VDC
    Output signal4~20mA 0~10/20mA 0/1~5VDC
    Pressure portM20×1.5 or customize
    material1Cr18Ni9Ti stainless steel
    Diaphragm material316L
    O-ringFluororubber
    Electrical housingCast aluminium alloy
    Insulation resistance100MΩ,100VDC
    Protection

    IP65


    Ordering Information muanfactory 4-20ma pressure sensor transmitter


    UC800A
    Pressure range-0.1. . .0~0.01...100MPa
    (0-X)KP Or MPaX:Measurement range
    CodePower supply
    D124VDC
    D25VDC
    D3Others
    CodeOutput signal
    S14~20mADCS50~20mADC
    S21~5VDCS60~10VDC
    S30~5VDCS70.5~4.5VDC
    S40~10mADC
    CodePressure Port
    J1M20×1.5 male
    J2G1/2 male
    J3G1/4 male
    J47/16-20UNF Female
    J5Others(such as ¢50.4flange)
    CodeElectrical connection
    B1Big Din
    B2PG7 PIN
    B3Cable with 1.5 meter
    B42088 industry housing
    B52088 housing with LED
    B6others
    codePressure type
    GGauge
    AAbsolute pressure
    SSealed pressure
