Stainless Steel Differential Piezoresistive Pressure Transmitter 5V

Description Hot Style 1-5V Piezoresistive Pressure Transmitter

Digital pressure transducer is design for the site with bad environment. Adopt silicon piezoresistive sensor, micro amplifier processing circuit. With the characteristic of vibration resistance and good impact resistance, high precision, stability. Widely used in pressure and level measurement and process control of petroleum, chemical and metallurgical, food industries.

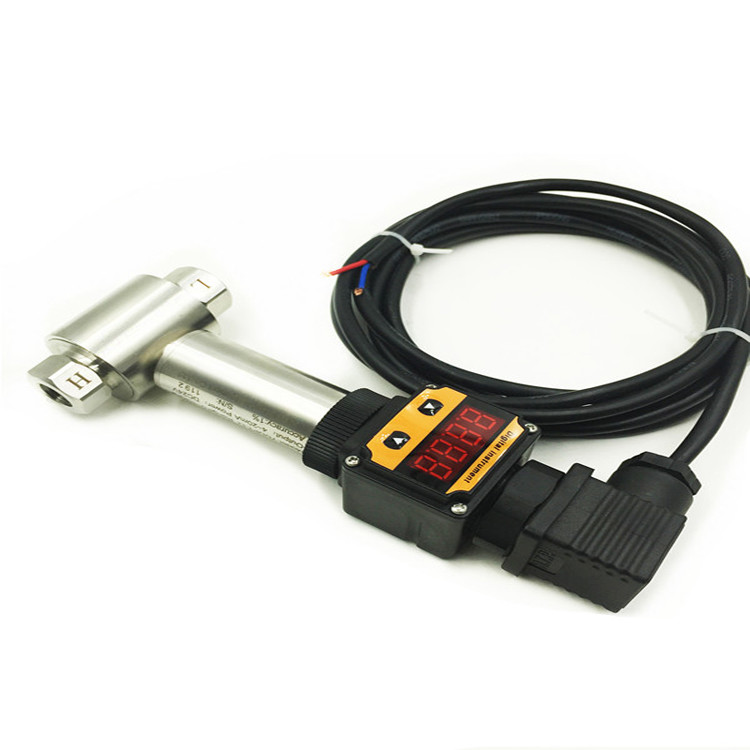

Detailed Images Hot Style 1-5V Piezoresistive Pressure Transmitter
Stainless Steel Differential Piezoresistive Pressure Transmitter 5V

Specification Hot Style 1-5V Piezoresistive Pressure Transmitter

2019 hot style 1-5V piezoresistive pressure transmitter with one year warranty
Measure Range	-0.1-0-60MPa
Accuracy	±0.2%FS, ±0.5%FS
Output Signal	4~20mA DC, 1~5V DC
Power supply	12~36V DC, standard 24V DC
Overload pressure	≤150%FS
Long stability	≤±0.2%FS/Year
Temperature compensation	-30~80℃
Medium temp	-30~80℃
Environment Temp	-30~80℃
Temperature drift	±0.03%FS/℃
Ambient humidity	≤85%RH
Housing material	Stainless steel structure
Medium	The gas, liquid without corrosion on stainless steel liquid

Features Hot Style 1-5V Piezoresistive Pressure Transmitter

-Stainless steel high strength shape structure
-Shape structure diversification, can be customized
-Strong anti-interference, good long-term stability
-LED, LCD header display can be selected
