Industrial Differential Pressure Transmitter 3051 20mA HART Capacitive

Ask Lasest Price
Brand Name :	Yunyi
Model Number :	3051
Certification :	/
Price :	$240
Payment Terms :	T/T, Western Union
Supply Ability :	50 per week
Delivery Time :	10 works day

Add to Cart

Product Details
Company Profile

Industrial Differential Pressure Transmitter 3051 20mA HART Capacitive

Description 3051 Intelligent 4~20mA HART Capacitive Differential Industrial Pressure Transmitter

3051 Intelligent 4~20mA HART Capacitive Differential industrial pressure transmitter with the advanced micro processing technology and digital communication technology, high precision, high stability,alibrate parameters through computer or panel keys,remote parameter setting, remote control, self diagnosis and other functions,easy to operate with HART protocol.

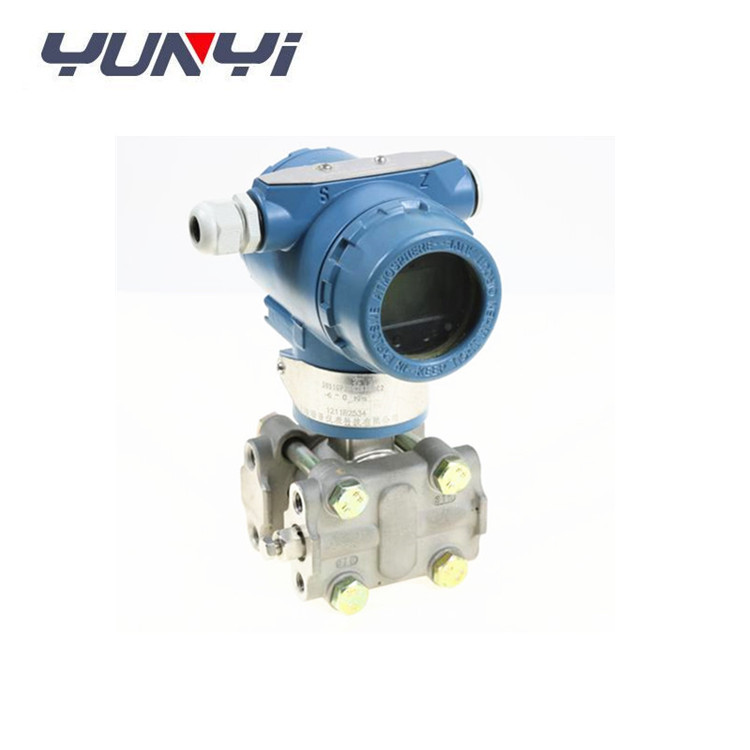

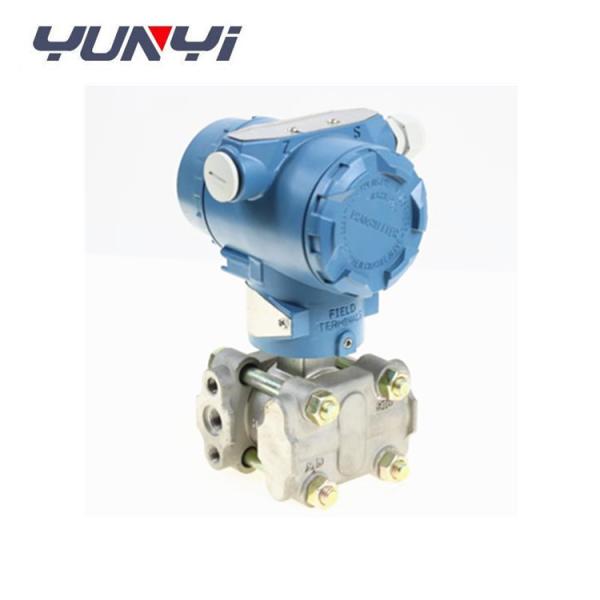

Detailed Images 3051 Intelligent 4~20mA HART Capacitive Differential Industrial Pressure Transmitter
Industrial Differential Pressure Transmitter 3051 20mA HART Capacitive

Specification 3051 Intelligent 4~20mA HART Capacitive Differential Industrial Pressure Transmitter

3051 digital pipe pressure sensor
Measuring Rang	Differential Pressure: 0~1Kpa, 6Kpa, 40Kpa, 200Kpa......2Mpa, 8Mpa
Measuring Rang	Gauge Pressure: 0~40Mpa
Absolute Pressure	0~40Mpa
Turn Down Ration	40:1
Application	Different Pressure, Gauge Pressure, Absolute Pressure
Accuracy	±0.1, 0.3, 0.5% of Span
Process Fluid	Liquid, Gas, Vapor
Temperature Drift	Zero Drift: 0.5%FS/50℃
Temperature Drift	Span Drift:0.7%FS/50℃
Stability	±0.1%/year
Working Temperature	-40℃ ~ 100℃
Ambient Temperature	-40℃ ~ 85℃
Storage Temperature	-40℃ ~ 100℃
Power Supply	9~45V DC
Output	4~20mA 2 wires Hart Protocol
Max Pressure	40Mpa
Respond Time	200ms
Humidity Limits	0 to 100% Relative Humidity
Turn On Time	2 Seconds With Minimum Damping
Display	LCD LED
Electrical Connections	1/4" Npt (M20 Conduit Threads)
Temperature Effect	±0.18% of Span Per 200C
Process Connection	1/4-18Npt
Flange	SS304 SS316
Diaphragms	SS316L / Hastelloy B / Hastelloy C / Monel / Tantalum
Wetted O-Rings	Buna N/Viton/PTFE
Bolts & Nuts	Carbon Steel / SS316
Mounting Bracket	Carbon Steel / SS304 or SS316
Name/Tag Plate	SS304 / SS316
Coverter Housing	Low Copper Cast Aluminium Alloy With Polyurethane
Fill Fluid	Silicone / Fluorine Oil
Casing Protection	IP67
Explosion Proof	Exd II BT4 Exia II CT6
Process Connection	Flange, Direct, Side Mounted, Diaphragm, Insert Type
Weight	Approximately 3.5KGS

Features 3051 Intelligent 4~20mA HART Capacitive Differential Industrial Pressure Transmitter

Zero automatic adjustment
Control parameter password lock
Software compensation, fault self diagnosis
Fieldbus, HART protocol communication
No pressure is introduced when the range is changed
