    Bilge Pump Water Tank Stainless Steel Mini Float Level Switch Controller

    Ask Lasest Price
    Brand Name : Yunyi
    Model Number : YD-322A
    Certification : CE
    Payment Terms : T/T, Western Union
    Supply Ability : 500pcs per week
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

    Bilge Pump Water Tank Stainless Steel Mini Float Level Switch Controller

    Bilge Pump Water Tank Stainless Steel Mini Float Level Switch Controller


    Description


    The Bilge Pump Water Tank Stainless Steel Mini Float Level Switch Controller is a versatile device used for monitoring liquid levels in tanks. It incorporates a float switch, also known as a magnetic float level switch, tank level switch, or float sensor. The switch consists of a reed switch enclosed within a guide rod, while the float is equipped with a ring magnet. As the float moves up and down with the changing liquid level, the internal magnet attracts the reed switch, causing it to make contact. This action enables the detection of the liquid level position, which can be used for control or indication purposes. The switch controller is designed for use in bilge pumps and water tanks, utilizing stainless steel construction for durability and compatibility with various liquids.


    Parameter Bilge Pump Water Tank Stainless Steel Mini Float Level Switch Controller

    Materialdefault 304 stainless steel, can be customized 316L, PP, PTFE
    LengthThe switching value is not less than 100MM single point, the continuous volume is not less than 500MM, and the maximum length is 5 meters
    Contact capacity50W/250VAC, 200VDC 40W/250VAC 10W/110VAC
    Rated current0.2A (50w) , 0.16A (40W) , 0.1A (10W)
    Working current1A (50W,40W) , 0.5A (10W)
    Pressure resistance(-1.0-3.5)MPa metal type (O-0.5) MPa plastic type
    [Temperature-20°℃-120°C (200°CMax)
    Float size25/25/45/50/75/110mm
    Guide diameter8/12/14/16/20mm
    Connection typeThread type, quick chuck type, flange type, etc.

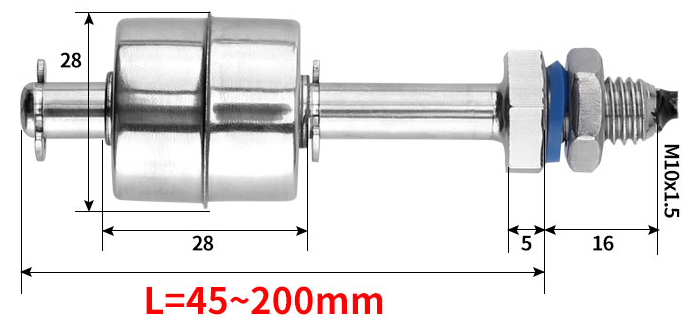

    Dimension Bilge Pump Water Tank Stainless Steel Mini Float Level Switch Controller
