Rs485 Submersible Fuel Level Sensor 12VDC 200m Measurement

Ask Lasest Price
Brand Name :	yunyi
Model Number :	YD322
Certification :	ce
Price :	69/pcs
Payment Terms :	L/C, D/P, T/T, Western Union
Supply Ability :	1000pcs/month
Delivery Time :	7days

Add to Cart

Product Details
Company Profile

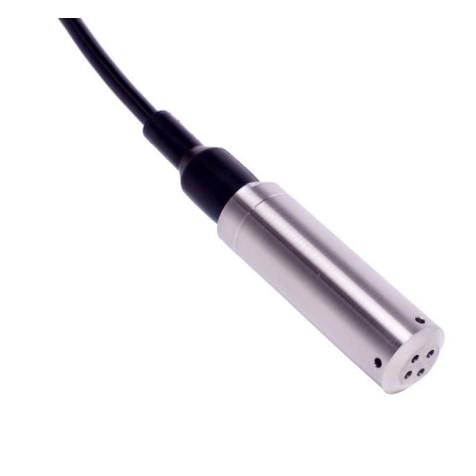

Rs485 Submersible Fuel Level Sensor 12VDC 200m Measurement

Description 4-20ma rs485 submersible fuel level pressure sensor

This series of input type liquid level transmitters are based on the principle that the measured liquid static pressure is proportional to the height of the liquid. The product uses the piezoresistive effect of ceramic sensitive elements to convert the static pressure into an electrical signal, and then cooperates with a dedicated digital circuit to pass the signal Amplification, linear compensation, anti-interference, anti-surge protection and other signal processing, an integrated product that outputs industry standard signals.

Specification 4-20ma rs485 submersible fuel level pressure sensor

Load (Ω)

Current (2-wire system): ≤ (power supply voltage-8V) /0.02A

Voltage (3-wire system):> Maximum output signal / 1mA

Proportional voltage (3-wire system):> 10K

Supply voltage

Total current consumption

Current (2-wire system): signal current, maximum 25mA

Voltage (3-wire system): 2.5mA

Proportional voltage (3-wire system): 2.5mA

Long-term stability

≤0.2%FS/year 0.5%FS

Anti-vibration

10g (IEC 60068-2-6 standard, under resonance conditions)

Impact resistance

500g (IEC 60068-2-27 standard, mechanical shock)

Service life

1 million pressure cycles

Features 4-20ma rs485 submersible fuel level pressure sensor

Wide measuring range: 0~10m~100mH2O;

Multiple output signals are optional;

Anti-interference and anti-surge protection;

Ceramic diaphragm, anti-corrosion;

Lightning protection, in line with IEC61000-4-5/Level-4 standards;

Applications 4-20ma rs485 submersible fuel level pressure sensor

Chemical plant, sewage treatment plant

Various acidic liquids and gases other than hydrofluoric acid

Dams, rivers and other places with a lot of sediment

Selection Guide 4-20ma rs485 submersible fuel level pressure sensor

YD322-A level transmitter
Measure range
Cable Length	A	5m(default)
	B	10m
	C	customer request
Output	1	2 wire(4~20)mA(default)
	2	(0~5)VDC
	3	(0~10)mA
	4	customer request
Accuracy	1	0.1%
	2	0.25%
	3	0.5%(default)
Display	1	No display(default)
	2	2088LCD
	3	2088LED
