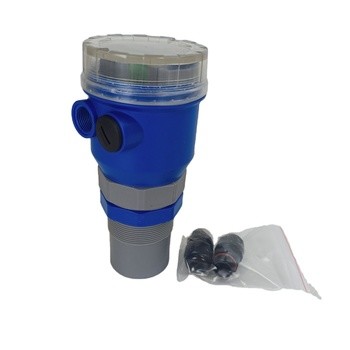

ABS Non Invasive OLED Display Ultrasonic Level Meter 24VDC

Ask Lasest Price
Brand Name :	Yunyi
Model Number :	MH-A16
Certification :	ISO CE
Price :
Payment Terms :	T/T, Western Union, paypal
Supply Ability :	50000 pcs per year
Delivery Time :	5-10 working days

Add to Cart

Product Details
Company Profile

ABS Non Invasive OLED Display Ultrasonic Level Meter 24VDC

Brief introduction
Ultrasonic level meter realizes high digital, communication between machine and human. The CPU applies import industry monolithic integrated circuit, digital temperature compensation and wide voltage input. You can select analog, switch or RS485 serial signal output. Owning the advantage that there is no need to contact the measured medium; it could supply more precise and longer work life.
Applications:
Proximity Detection
Robot range finder
Sedimentation pool
Coal washing process
Obstacle detection, collision avoidance
General-purpose distance detection
Wastewater treatment
Features
High precise
Non-invasive
Strong anti-interference
Automatic temperature compensation
Selectable output way
Substantially improved long-term stability
Specification:

Full scale	5m ,8m,10m
Unusable area	≤0.4~0.5m
Max measure error	0.25%*full scale
Power	12-24VDC
Power consumption	<1.5W
Output signal	4~20mA (other output is optional)
Max load impedance	700Ω
Display panel	OLED
Material	ABS
Fix model	M60X2 or ¢61MM
Dimension	Φ92mm198mmM60
Protection degree	IP65
Humidity	0 to 95%
Ambient temperature	-10ºC~60ºC
Ambient pressure	normal condition
Anti explosion sign	Exia II BT4 Gb(optional)

ABS Non Invasive OLED Display Ultrasonic Level Meter 24VDC

FAQ

Q: How long will you reply me?
A: We will contact you as soon as possible but within 12 hours.

Q: Can I get some samples?
A: Yes, Sample order is available for quality check and market test. But you have to pay the express cost.

Q: How soon can you arrange your production?
A: Once getting your product confirmation and receiving the prepayment, the production will be started immediately.

Q: What's delivery time?
A: It usually takes about 3-5 working days for small order and 10-15 days for big order.

Q: How do you control your quality ?
A: Three inspection steps(of original, production, and finished goods) + good warranty service(1 year free to change a new one without any human damage factors).

Q: What certificates do you have ?
A: ISO9000, CE, Explosion-proof certification, RoHs ready. And before the delievry of goods, quality and safety inspection certification issued by third parts also can be offered.

Q: Could I visit your factory?
A: Very welcome! Fly to Xian Yang air port. It was a big pleasure for us.

Q: What's your warranty terms?
A: We offer 12 months warranty time.

Q: Can you provide OEM & Customized service?
A: Yes, OEM and ODM are both available, we have the professional R&D dept which can provide professional solutions for you.
