Description 4-20mA Water Tank Magnetic Level Indicator
Fuel magnetic level switch indicator introducing and absorbing domestic and foreign products, and to
digest, absorb, improve the original magnetic level gauge standards
promulgated by the Ministry of Chemical Industry HG/T21584 -95
developed products. Water Tank Magnetic float level gauge Can be
used in a variety of media level measurement towers, tanks, tank,
spherical vessels and boilers and other equipment. The magnetic
level gauge series can achieve high sealed, leak-proof and
adaptation level measurement under high pressure, high temperature,
corrosive conditions.The entire process of measuring non-blind,
eye-catching display, intuitive readings. In particular site
instruction part, because no direct contact with the liquid medium,
so the high temperature, high pressure, high viscosity, toxic,
harmful, corrosive media, can show its superiority. Therefore,
Water Tank Magnetic float level gauge is more than the traditional
glass, plate level gauge with higher reliability, security,
advanced,practical.

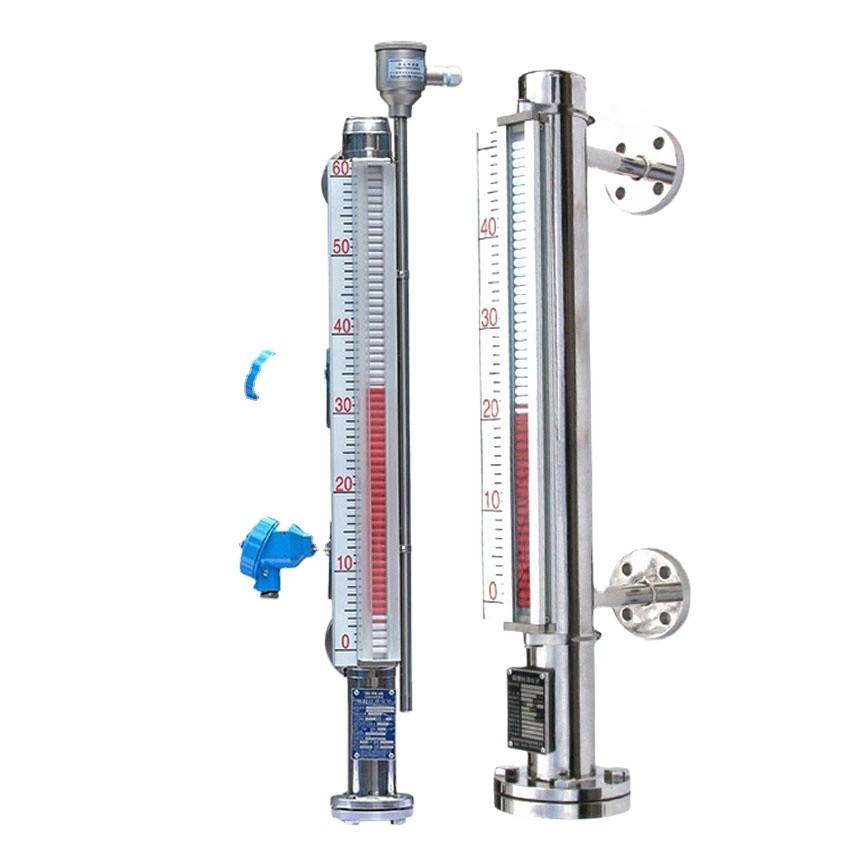

Detailed Images 4-20mA water tank magnetic level indicator
Specification 4-20mA Water Tank Magnetic Level Indicator
| range (mm) | 300 ~ 19000 |
| medium density (g/cm3) | ≥ 0.45 |
| medium viscosity: | ≤ 0.02Pa.S |
| working temperature ℃: | -180 ~ 350 |
| pressure levels (MPa): | ≤ 32 |
| measurement accuracy (mm): | ≤ ± 10 |
| Installation: | Side-mounted, roof-mounted, bottom-mounted |
| Protection: | IP65 |
| proof grade: | ib Ⅱ CT4 (intrinsically safe), d Ⅱ BT3 (flameproof) |
| transmission: | 4 ~ 20mA or switch |
Features 4-20mA Water Tank Magnetic Level Indicator
Level gauge the main components (body) in direct contact with the
medium are made of stainless steel material or other special
materials, indicating that components are not in contact with the
media, and therefore containing flammable, explosive, toxic,
corrosive media container use the gauge is safe and reliable.
Two-color (white vapor, liquid red) turned columns, flap display,
indicating continuous visual eye-catching, no blind spots, in any
case will not be a false level.
Less sealing surface, reducing static seal leakage points above
95%, and thus, to overcome the petroleum, chemical industry
pressure vessel parts run,run, drip, leak and other weak links than
the original plate level gauge.
Simple structure, easy installation and maintenance, large-scale,
design pressure, long life, wide range of applications.
Magnetic float level gauge, with a level gauge can replace more
than one glass plate liquid level gauge, and the installation
extremely easy to use. Meanwhile, the use of plant development
level remote transmitter, alarm and automatic control device, can
be realized on the lower level alarm and control automation.
