Description YD-322 Anti-Clogged Water Level Transmitter
The anti-blocking input type liquid level gauge product adopts
high-quality diffused silicon sensor as the signal measurement
original, and is automatically tested by the computer. The
amplifying circuit is located in the stainless steel housing, which
converts the sensor signal into a standard output signal, giving
full play to the technical advantages of the sensor and making the
anti-blocking input liquid level transmitter with excellent
performance. It has anti-interference, low temperature drift, high
stability, and high measurement accuracy. It is an ideal liquid
level measuring instrument in the field of industrial automation.
The anti-blocking liquid level transmitter adopts imported
materials, diaphragm isolation technology, and no pressure hole in
the test head. There is no clogging of viscous media during the
measurement process. The integrated structure design is suitable
for sewage and chemical coatings with more impurities. , Paint,
mud, asphalt, crude oil and other viscous media pressure
measurement and control.

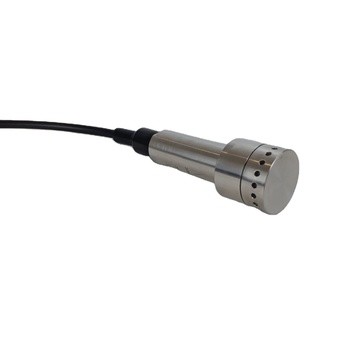

Detailed Images YD-322 Anti-Clogged Water Level Transmitter
Specification YD-322 Anti-Clogged Water Level Transmitter
| Non-Linearity | +/-0.250% FS |
| Repeatability | +/-0.10% FS |
| Thermal Error | +/-0.2% FS/oC |
| Zero Drift | +/-0.25% FS |
| Long Term Stability | +/-0.5% FS/Year |
| Over Pressure Safety | 200% |
| Operating Temperature | 0oC to 50oC |
| Response Time | <1ms (10-90%FS) |
| Diaphragm | titanium alloy Stainless Steel |
| Case Material | 1Cr18Ni9Ti Stainless Steel |
| Compatibility | Liquid compatible with titanium alloy |
| Protection | IP68 |
Features YD-322 Anti-Clogged Water Level Transmitter
Filter probe
With protective filter, it can filter all kinds of impurity
particles in the medium, effectively protect the sensor and circuit
board inside the probe, adapt to the medium and turbid medium, and
extend the service life of the sensor
Easy to install
The probe is directly put into the bottom of the measured medium,
and the meter head can be fixed on the top of the container
Head thread: M33*2 (all threads can be customized) Electrical
interface: M20*1.5
Applications YD-322 Anti-Clogged Water Level Transmitter
Submersible type water level sensor transmitter is mainly used for
petrochemical, metallurgy, electric power, pharmaceuticals, water
supply and drainage, environmental protection and other systems and
industries of the liquid level measurement.
