316SS Submersible Level Sensor For Wastewater Liquid

Ask Lasest Price
Brand Name :	Yunyi
Model Number :	YD322
Certification :	CE
Price :	$43.3~$59.3/p
Payment Terms :	L/C, D/A, D/P, T/T, Western Union
Supply Ability :	200PCS/week
Delivery Time :	7 days

Add to Cart

Product Details
Company Profile

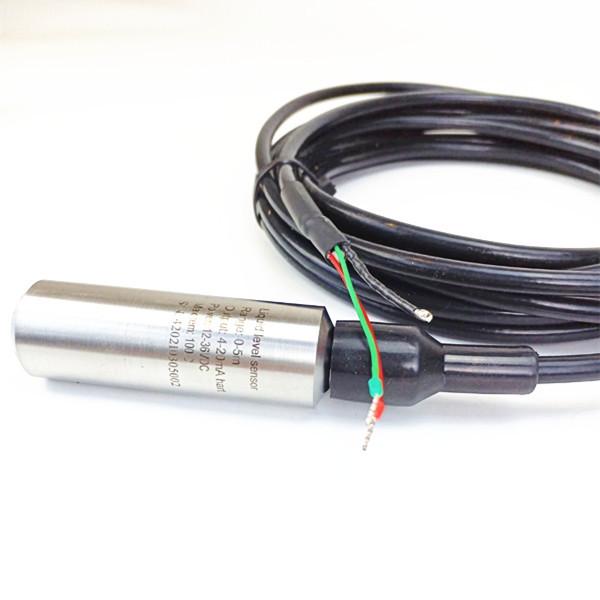

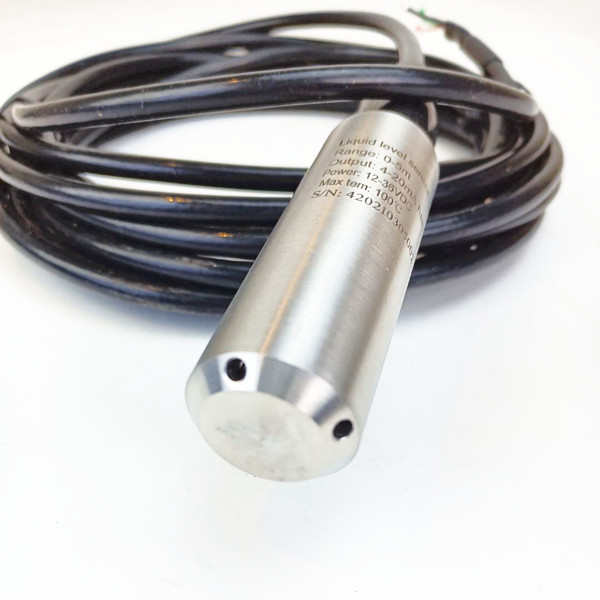

316SS Submersible Level Sensor For Wastewater Liquid

Submersible Level Sensor Wastewater Level Sensor Liquid Level Sensor

Description of Submersible Level Sensor Wastewater Level Sensor Liquid Level Sensor

Submersible Level Sensor Wastewater Level Sensor Liquid Level Sensor adopts high performance diffused silicon piezoresistive pressure sensor as the measuring element series pressure transmitter is a high reliability, high- stability, high accuracy and small volume level transmitter with part structure. Widely used in measurement liquid pressure and height in small inside diameter pump as well as level height of liquid reservoir, such as water, oil and mild corrosive liquid.

Specification Submersible Level Sensor Wastewater Level Sensor Liquid Level Sensor

pressure medium	liquid compatible stainless steel
pressure ranges	0~0.5m~1 m H2O...300 m H2O
overload pressure	150%FS
output signal	4~20mA, 0.4 ~4.5V, 0~5V
accuracy	0.1%FS,0.25%FS,0.5%FS (standard)
load resistance	RL = (U-10)/0.02(Ω) (4~20mA current output), ＞20KΩ (voltage output)
long term stability	0.2%FS/year
supply voltage	10~36VDC
compensated temperature range	-10~70°c
operating temperature range	-20~85°c
storage temperature range	-40~125°c
temperature coefficient of zero	±0.015%FS/°c@25°c
temperature coefficient of span	±0.02%FS/°c@25°c
insulation resistance	100MΩ@ 500VDC
Pressure connection	screw thread, throw-in type
Protection grade	IP68
material of wetted part and housing	304SS or 316L
material of pressure membrane	316L
Response time	1ms
