Water Level Sensors Probe Hydrostatic Tank Liquid Level Transmitter

Low Cost Water Level Sensors Probe Hydrostatic Tank Water Liquid Level indicator Transmitter

Description of Low Cost Water Level Sensors Probe Hydrostatic Tank Water Liquid Level indicator Transmitter

Submersible liquid level transmitter series static pressure submersible liquid level transmitter (liquid level gauge) is suitable for liquid level measurement of various media in petrochemical, metallurgy, electric power, pharmaceutical, water supply and drainage, environmental protection and other systems and industries. Exquisite structure, simple adjustment and flexible installation provide convenience for users to use easily. 4~20mA, 0~5v, 0~10mA and other standard signal output methods can be selected by users according to their needs.

Dimension of Low Cost Water Level Sensors Probe Hydrostatic Tank Water Liquid Level indicator Transmitter

Specification of Low Cost Water Level Sensors Probe Hydrostatic Tank Water Liquid Level indicator Transmitter

Pressure Span	0...200mH2O
Output Signal	4...20mA,0-5V,0.5-4.5V
Supply Input	10…36V DC;5V
Accuracy	+/-0.5%FS
Non-Linearity	+/-0.250% FS
Repeatability	+/-0.10% FS
Thermal Error	+/-0.2% FS/^oC
Zero Drift	+/-0.25% FS
Long Term Stability	+/-0.5% FS/Year
Over Pressure Safety	200%
Operating Temperature	0^oC to 50^oC
Response Time	<1ms (10-90%FS)
Diaphragm	titanium alloy Stainless Steel
Case Material	1Cr18Ni9Ti Stainless Steel
Compatibility	Liquid compatible with titanium alloy
Protection	IP68

Feature of Low Cost Water Level Sensors Probe Hydrostatic Tank Water Liquid Level indicator Transmitter

☆ Triple lightning protection design
☆ High accuracy: better than 0.2%
☆ Laser calibration zero point full scale
☆ Anti-condensation technology
☆ Anti-interference design

Application of Low Cost Water Level Sensors Probe Hydrostatic Tank Water Liquid Level indicator Transmitter

★ Industrial field level measurement and control
★ Urban water supply and sewage treatment
★ Hydrological monitoring and control
★ Big river dam and water conservancy construction
★ Navigation and Ship System

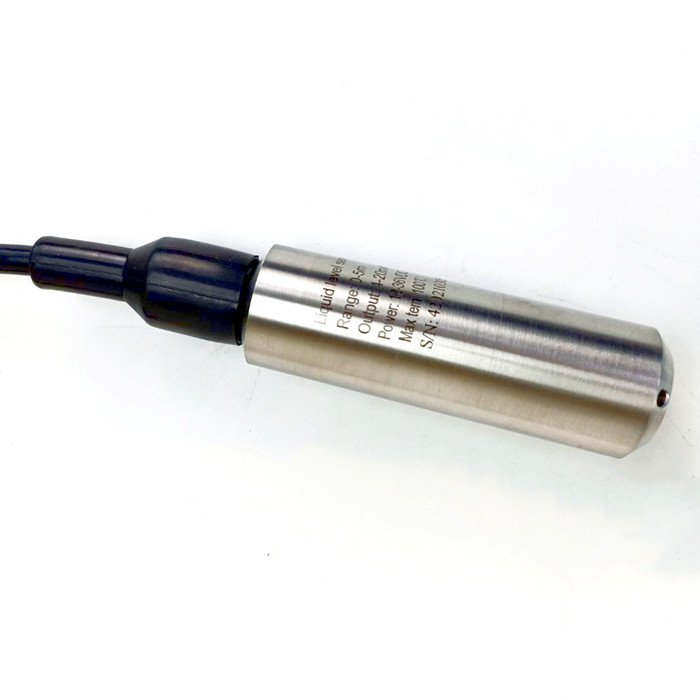

Detaild picture of Low Cost Water Level Sensors Probe Hydrostatic Tank Water Liquid Level indicator Transmitter
