    Borehole Deep Well Water Depth Level Sensor Measurement 100m 200m

    Ask Lasest Price
    Brand Name : Yunyi
    Model Number : YD322
    Certification : CE
    Price : 35-200 usd
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 1000/month
    Delivery Time : 5-7 days
    • Product Details
    • Company Profile

    Borehole Deep Well Water Depth Level Sensor Measurement 100m 200m

    100m 200m borehole deep well water level measurement for water depth level sensor


    Description of 100m 200m borehole deep well water level measurement for water depth level sensor

    The submersible level gauge is based on the principle that the static pressure of the measured liquid is proportional to the height of the liquid, and uses the piezoresistive effect of diffused silicon or ceramic sensing elements to convert the static pressure into an electrical signal. After temperature compensation and linear correction, it is converted into 4-20mADC standard current signal output. The sensor part of the submerged static pressure liquid level transmitter can be directly put into the liquid, and the transmitter part can be fixed by flange or bracket, which is very convenient to install and use.


    Dimension of 100m 200m borehole deep well water level measurement for water depth level sensor



    Specification of 100m 200m borehole deep well water level measurement for water depth level sensor


    Pressure Span0...1…500mH2O
    Output Signal4...20mA
    Supply Input10…36V DC
    Accuracy+/-0.5%FS
    Non-Linearity+/-0.250% FS
    Repeatability+/-0.10% FS
    Thermal Error+/-0.2% FS/oC
    Zero Drift+/-0.25% FS
    Long Term Stability+/-0.5% FS/Year
    Over Pressure Safety200%
    Operating Temperature0oC to 50oC
    Response Time<1ms (10-90%FS)
    Diaphragmtitanium alloy Stainless Steel
    Case Material316L Stainless Steel
    CompatibilityLiquid compatible with titanium alloy
    ProtectionIP68

    Feature of 100m 200m borehole deep well water level measurement for water depth level sensor

    ·High precision,corrosive and other media pressure measurement;
    ·Separate construction; full sealed stainless steel construction for submersible sensor, easy for installation,wiring and calibration;
    ·Lightning Protection,Water-proof and oil-proof cable.


    Application of 100m 200m borehole deep well water level measurement for water depth level sensor

    ★ Industrial field level measurement and control
    ★ Urban water supply and sewage treatment
    ★ Hydrological monitoring and control
    ★ Big river dam and water conservancy construction
    ★ Navigation and Ship System

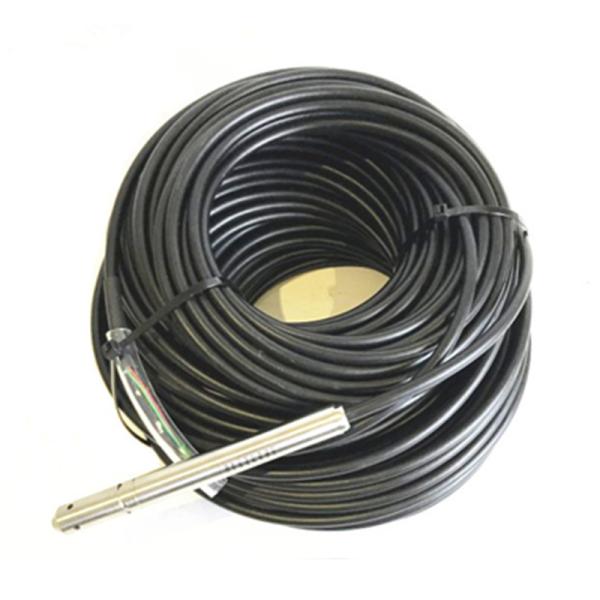

    Detaild picture of 100m 200m borehole deep well water level measurement for water depth level sensor
