Description Magnetic float sensor liquid level meter
UHZ-10 introducing and absorbing domestic and foreign products, and
to digest, absorb, improve the original magnetic level gauge
standards promulgated by the Ministry of Chemical Industry
HG/T21584 -95 developed products. Can be used in a variety of media
level measurement towers, tanks, tank, spherical vessels and
boilers and other equipment. The magnetic level gauge series can
achieve high sealed, leak-proof and adaptation level measurement
under high pressure, high temperature, corrosive conditions.The
entire process of measuring non-blind, eye-catching display,
intuitive readings. In particular site instruction part, because no
direct contact with the liquid medium, so the high temperature,
high pressure, high viscosity, toxic, harmful, corrosive media, can
show its superiority. Therefore, it is more thanthe traditional
glass, plate level gauge with higher reliability, security,
advanced,practical.
The gauge of the most notable feature is the liquid medium and the
indicator completely isolated, so in any case are very safe,
durable, and various types of level gauge coupled with level alarm,
control switches, or community level can be achieved the bit, the
lower offside alarm control or interlock; coupled with reed chipset
level transmitter can be level, sector-bit signal into a standard two-wire 4-20mADC signal transmitted to a computer, regulator,
liquid digit display device, to achieve long-range indication,
detection, recording and control, the series level gauge widely
used: the level of the production process in petroleum, chemical,
metallurgy, pharmaceutical, food, electricity and other measurement
and control.

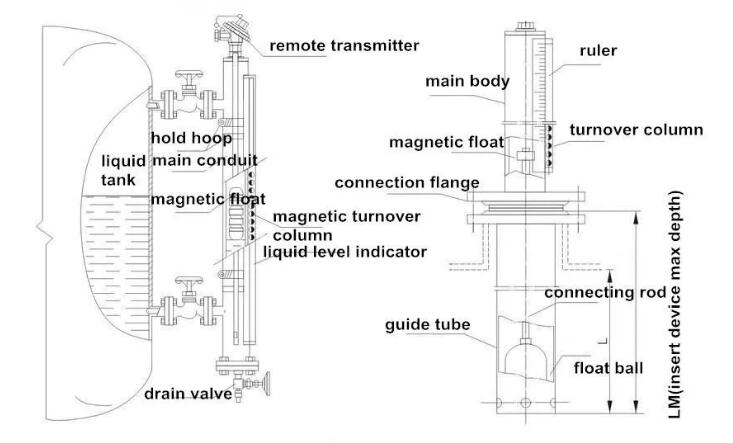

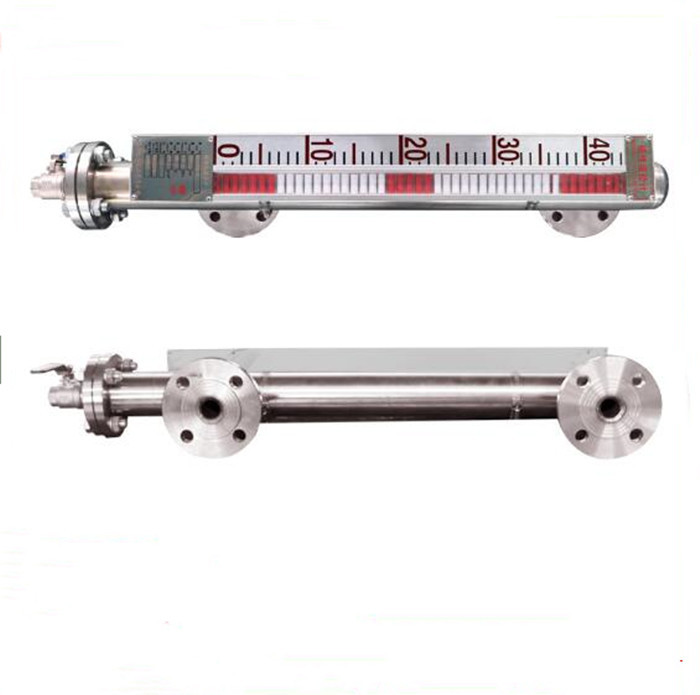

Detailed Images Magnetic float sensor liquid level meter
Specification Magnetic float sensor liquid level meter
| Measuring range (mm) | 300 ~ 19000 |
| Medium density (g/cm3) | ≥ 0.45 |
| Medium viscosity: | ≤ 0.02Pa.S |
| Working temperature ℃: | -180 ~ 350 |
| Pressure levels (MPa): | ≤ 32 |
| Measurement accuracy (mm): | ≤ ± 10 |
| Installation: | Side-mounted, roof-mounted, bottom-mounted |
| Protection: | IP65 |
| Proof grade: | ib Ⅱ CT4 (intrinsically safe), d Ⅱ BT3 (flameproof) |
| Transmission: | 4 ~ 20mA or switch |
| Interface flange | PN2.5DN25HG20592 (side-mounted) |
Features Magnetic float sensor liquid level meter
It total, compared with ordinary glass tube and glass plate
surface, with the following characteristics:
1, Level gauge the main components (body) in direct contact with
the medium are made of stainless steel material or other special
materials, indicating that components are not in contact with the
media, and therefore containing flammable, explosive, toxic,
corrosive media container use the gauge is safe and reliable.
2,Two-color (white vapor, liquid red) turned columns, flap display,
indicating continuous visual eye-catching, no blind spots, in any
case will not be a false level.
3,Less sealing surface, reducing static seal leakage points above
95%, and thus, to overcome the petroleum, chemical industry
pressure vessel parts run,run, drip, leak and other weak links than
the original plate level gauge.
4,Simple structure, easy installation and maintenance, large-scale,
design pressure, long life, wide range of applications.
5,Magnetic float level gauge, with a level gauge can replace more
than one glass plate liquid level gauge, and the installation
extremely easy to use. Meanwhile, the use of plant development
level remote transmitter, alarm and automatic control device, can
be realized on the lower level alarm and control automation.
Applications Magnetic float sensor liquid level meter
Selection Guide Magnetic float sensor liquid level meter
| UHZ | |
| Install | |
| | C | Side Install | |
| | D | Top | |
| | R | Insert | |
| | | Type | |
| | | F | Anti-corrosion |
| | | E | Anti-corrosion special 304 liner PP PVC PTFE |
| | | J | Jacket type |
| | | G | High pressure type |
| | | | Control points(quantity of level switches) | |
| | | | LR | Transmotter 2 wire 4-20mA output |
| | | | LB | Transmotter 2 wire 4-20mA output with Hart |
| | | | | | Install height (N/A for side-side mounted level gauge) |
| | | | | | | Measuring range(mm) |
| | | | | | | | Medium density(kg/m³) |
| | | | | | | | | | Normial pressure |
Measuring length
Connection flange standards
Media name and density
Medium temperature
Medium pressure
Installation
Material selection
