Descroption of Laboratory High precision Accuracy 0.05 Digital
Pressure Gauge YK120B
The YK series of precision digital pressure gauges represents the
culmination of decades of technological innovation in the field of
digital metrology. This series has been meticulously crafted to
meet the demanding needs of the metering industry, offering
unparalleled levels of precision and stability that have been
fine-tuned over years of development and refinement.
At the core of the YK series is a commitment to providing accurate
pressure measurements with high reliability. The digital form of
these pressure gauges has been optimized through innovative design
and advanced engineering, ensuring that they are tailored to the
specific requirements of the metering industry. With a focus on
user experience, the YK series offers intuitive operation and
clear, easy-to-read digital displays that provide instantaneous
pressure readings with high resolution.
The precision of the YK series is achieved through the use of
cutting-edge sensor technology, which is capable of detecting even
the slightest variations in pressure. This sensitivity, combined
with sophisticated data processing algorithms, allows for
exceptional accuracy across a wide range of pressure points. The
stability of the gauges is ensured by rigorous calibration
processes and the use of high-quality materials that can withstand
the test of time and various operating conditions.
In addition to precision and stability, the YK series is designed
with versatility in mind. These digital pressure gauges are
suitable for a broad spectrum of applications, from industrial
process monitoring and control to laboratory experiments that
require precise pressure measurements. The ability to measure
across different pressure ranges makes the YK series an
indispensable tool for environments where accuracy is critical.
The YK series also incorporates features that enhance its
durability and longevity. Robust construction methods are employed
to protect against environmental factors that could potentially
affect performance, such as temperature fluctuations, humidity, and
dust. The digital components are designed to withstand electrical
surges and other forms of interference, ensuring that the gauges
maintain their accuracy and functionality under less than ideal
conditions.
Furthermore, the YK series is equipped with user-friendly
interfaces and customizable settings that allow technicians and
operators to tailor the gauges to their specific needs. This level
of customization, along with the ease of use, ensures that the YK
series can be seamlessly integrated into existing workflows and
systems without extensive retraining or modifications.
In summary, the YK series of precision digital pressure gauges
stands as a testament to the relentless pursuit of excellence in
digital metrology. By leveraging decades of experience and
innovation, this series provides the metering industry with a tool
that not only meets but exceeds the standards of precision and
stability that are expected in today's fast-paced and
technologically advanced environment. Whether for general purpose
applications or specialized tasks, the YK series is engineered to
deliver reliable and accurate pressure measurement solutions that
will enhance productivity and quality across various industries.

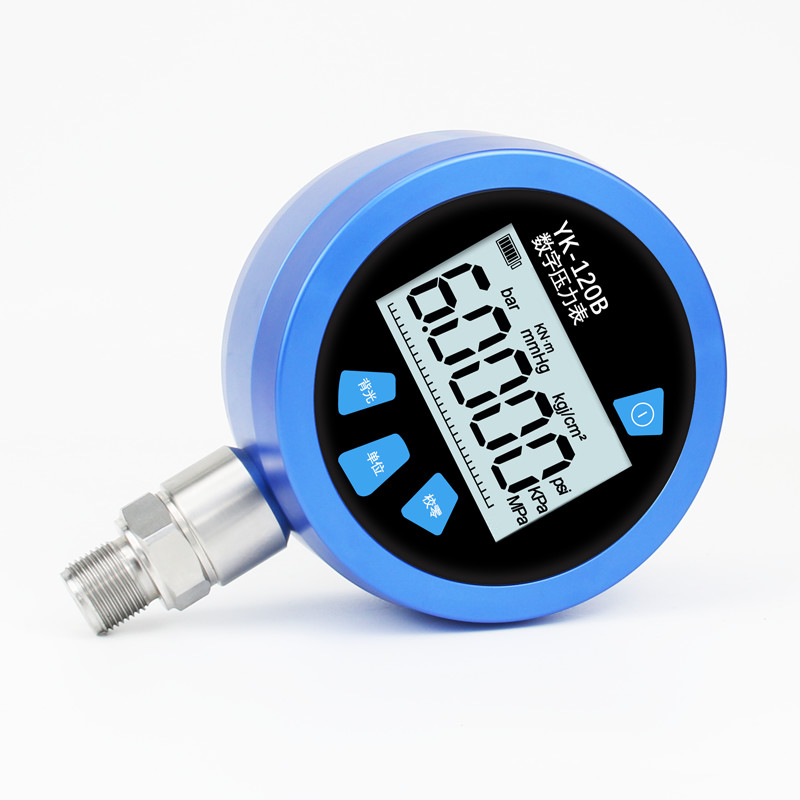

Detailed images of Laboratory High precision Accuracy 0.05 Digital Pressure Gauge
YK120B
Specification of Laboratory High precision Accuracy 0.05 Digital Pressure Gauge
YK120B
| Item | standard digital pressure gauge 0.05 accuracy |
| Pressure Range | -100KPa ~260MPa(optional) |
| Signal Output | RS485 |
| Accuracy | 0.05 |
| Display | 5 digital dynamic display and Simulation of light indicator |
| Overload | 1.5-3 times of full scale |
| Turn off the current | less than 10 A |
| Power supply | 7.4V high energy lithium battery or rechargeable battery |
| Medium Temp | -40℃~90℃ |
| Process Connection | M20×1.5, 1/4NPT, 1/2NPT optional |
| Ambient temp | (-10~80)℃ |
| Relative humidity | <95% |
| Atmospheric pressure | (86~106)KPa |
| Storage temp | (-20~70)℃ |
| Pressure range optional | Low Pressure Range:0~6KPa,0~10KPa,0~20KPa,
0~0.04MPa,0~0.06MPa,-0.04~0MPa,-0.06~0MPa,-0.04~0.02MPa,-0.04~0.06MPa
Middle Pressure Range :-0.1~0MPa
,0~0.1MPa,0~0.16MPa,0~0.25MPa,0~0.4MPa,0~0.6 MPa,0~1MPa,0~1.6 MPa
,0~2.5MPa,0~4MPa,0~6MPa,0~10MPa,0~16MPa,0~25MPa,0~40MPa,0~60MPa
High Pressure Range :0~100MPa,0~160MPa,0~250MPa |
Features of Laboratory High precision Accuracy 0.05 Digital Pressure Gauge
YK120B
- Micro power consumption, high accuracy, high resolution of five bit
digital LCD display; Intelligent calibration, linear repair, two second magnetic pen
induction zero adjustment
- Pressure unit:MPa,KPa,Pa,mBar,Bar,Psi,mmH2O,mmHg
- Can display online dynamic pressure curve, peak recording function,
etc. (optional) ;
- Optional functions: RS485 output/ 4-20mA output/ USB interface/
memory function (optional)
Application of Laboratory High precision Accuracy 0.05 Digital Pressure Gauge
YK120B
- Check the general pressure gauge
- Check the precision pressure gauge
- Check sphygmomanometer, other pressure meter
- Measuring precision pressure
